Star grips with safety cable similar to DIN 6336, steel parts stainless steel, internal thread, Form KS (06212)

Configure

D
- M4
- M5
- M6
- M8
- M10
- M12
- M16
Outside diameter(φ)
- 25
- 32
- 40
- 50
- 63
Main Body Height t(mm)
- 16
- 20
- 25
- 32
- 40
H3
- 8
- 10
- 13
- 17
- 21
H5
- 22
- 26
- 31
- 38
- 46
D8(mm)
- 12
- 14
- 18
- 22
- 26
H5 max.(mm)
- 22
- 26
- 31
- 38
- 46
T=thread depth(mm)
- 10
- 14
- 18
Colour Cap
Est. shipping days
- All
- Within 4 working days

Star grips with safety cable similar to DIN 6336, steel parts stainless steel, internal thread, Form KS (06212)

Catalog

Part number:

Still undefined. 52 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Outside diameter

(φ)

Main Body Height t

(mm)

H5 max.

(mm)

T=thread depth

(mm)

Colour Cap

Weight (ERP)

(kg)

Minimum order quantity

M4	25	16	8	22	12	22	10	Black grey RAL 7021	0.0085	1 pieces
M4	25	16	8	22	12	22	10	Light grey RAL 7035	0.0075	1 pieces
M4	25	16	8	22	12	22	10	Traffic red RAL 3020	0.0085	1 pieces
M4	25	16	8	22	12	22	10	Colza yellow RAL 1021	0.0085	1 pieces
M5	25	16	8	-	12	22	10	Black grey RAL 7021	0.0083	1 pieces
M5	32	20	10	26	14	26	10	Black grey RAL 7021	0.0105	1 pieces
M5	25	16	8	-	12	22	10	Light grey RAL 7035	0.0083	1 pieces
M5	25	16	8	-	12	22	10	Traffic red RAL 3020	0.0083	1 pieces
M5	25	16	8	-	12	22	10	Colza yellow RAL 1021	0.0083	1 pieces
M5	32	20	10	26	14	26	10	Light grey RAL 7035	0.0105	1 pieces
M5	32	20	10	26	14	26	10	Traffic red RAL 3020	0.0105	1 pieces
M5	32	20	10	26	14	26	10	Colza yellow RAL 1021	0.0105	1 pieces
M6	32	20	10	-	14	26	10	Black grey RAL 7021	0.0102	1 pieces
M6	25	16	8	22	12	22	10	Black grey RAL 7021	0.0075	1 pieces
M6	32	20	10	-	14	26	10	Light grey RAL 7035	0.0103	1 pieces
M6	32	20	10	-	14	26	10	Traffic red RAL 3020	0.0102	1 pieces
M6	32	20	10	-	14	26	10	Colza yellow RAL 1021	0.0103	1 pieces
M6	25	16	8	22	12	22	10	Light grey RAL 7035	0.0075	1 pieces
M6	25	16	8	22	12	22	10	Traffic red RAL 3020	0.0075	1 pieces
M6	25	16	8	22	12	22	10	Colza yellow RAL 1021	0.0075	1 pieces
M8	40	25	13	-	18	31	14	Black grey RAL 7021	0.0198	1 pieces
M8	50	32	17	38	22	38	14	Black grey RAL 7021	0.0265	1 pieces
M8	40	25	13	-	18	31	14	Light grey RAL 7035	0.0199	1 pieces
M8	40	25	13	-	18	31	14	Traffic red RAL 3020	0.0198	1 pieces
M8	40	25	13	-	18	31	14	Colza yellow RAL 1021	0.0198	1 pieces
M8	50	32	17	38	22	38	14	Light grey RAL 7035	0.0265	1 pieces
M8	50	32	17	38	22	38	14	Traffic red RAL 3020	0.0265	1 pieces
M8	50	32	17	38	22	38	14	Colza yellow RAL 1021	0.0265	1 pieces
M10	50	32	17	-	22	38	14	Black grey RAL 7021	0.0236	1 pieces
M10	40	25	13	31	18	31	14	Black grey RAL 7021	0.0135	1 pieces
M10	63	40	21	46	26	46	14	Black grey RAL 7021	0.0395	1 pieces
M10	50	32	17	-	22	38	14	Light grey RAL 7035	0.0244	1 pieces
M10	50	32	17	-	22	38	14	Traffic red RAL 3020	0.0244	1 pieces
M10	50	32	17	-	22	38	14	Colza yellow RAL 1021	0.0236	1 pieces
M10	40	25	13	31	18	31	14	Light grey RAL 7035	0.0135	1 pieces
M10	40	25	13	31	18	31	14	Traffic red RAL 3020	0.0135	1 pieces
M10	40	25	13	31	18	31	14	Colza yellow RAL 1021	0.0135	1 pieces
M10	63	40	21	46	26	46	14	Light grey RAL 7035	0.0395	1 pieces
M10	63	40	21	46	26	46	14	Traffic red RAL 3020	0.0395	1 pieces
M10	63	40	21	46	26	46	14	Colza yellow RAL 1021	0.0395	1 pieces
M12	63	40	21	-	26	46	18	Black grey RAL 7021	0.0549	1 pieces
M12	50	32	17	38	22	38	18	Black grey RAL 7021	0.0395	1 pieces
M12	63	40	21	-	26	46	18	Light grey RAL 7035	0.0549	1 pieces
M12	63	40	21	-	26	46	18	Traffic red RAL 3020	0.0548	1 pieces
M12	63	40	21	-	26	46	18	Colza yellow RAL 1021	0.0549	1 pieces
M12	50	32	17	38	22	38	18	Light grey RAL 7035	0.0395	1 pieces
M12	50	32	17	38	22	38	18	Traffic red RAL 3020	0.0395	1 pieces
M12	50	32	17	38	22	38	18	Colza yellow RAL 1021	0.0395	1 pieces
M16	63	40	21	46	26	46	18	Black grey RAL 7021	0.0395	1 pieces
M16	63	40	21	46	26	46	18	Light grey RAL 7035	0.0395	1 pieces
M16	63	40	21	46	26	46	18	Traffic red RAL 3020	0.0395	1 pieces
M16	63	40	21	46	26	46	18	Colza yellow RAL 1021	0.0395	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

2.84 € ( 3.38 € )	4 working days
2.84 € ( 3.38 € )	4 working days
2.84 € ( 3.38 € )	4 working days
2.84 € ( 3.38 € )	4 working days
2.84 € ( 3.38 € )	4 working days
2.88 € ( 3.43 € )	4 working days
2.84 € ( 3.38 € )	4 working days
2.84 € ( 3.38 € )	4 working days
2.84 € ( 3.38 € )	4 working days
2.88 € ( 3.43 € )	4 working days
2.88 € ( 3.43 € )	4 working days
2.88 € ( 3.43 € )	4 working days
2.88 € ( 3.43 € )	4 working days
2.84 € ( 3.38 € )	4 working days
2.88 € ( 3.43 € )	4 working days
2.88 € ( 3.43 € )	4 working days
2.88 € ( 3.43 € )	4 working days
2.84 € ( 3.38 € )	4 working days
2.84 € ( 3.38 € )	4 working days
2.84 € ( 3.38 € )	4 working days
3.20 € ( 3.81 € )	4 working days
4.26 € ( 5.07 € )	4 working days
3.20 € ( 3.81 € )	4 working days
3.20 € ( 3.81 € )	4 working days
3.20 € ( 3.81 € )	4 working days
4.26 € ( 5.07 € )	4 working days
4.26 € ( 5.07 € )	4 working days
4.26 € ( 5.07 € )	4 working days
4.26 € ( 5.07 € )	4 working days
3.20 € ( 3.81 € )	4 working days
6.75 € ( 8.03 € )	4 working days
4.26 € ( 5.07 € )	4 working days
4.26 € ( 5.07 € )	4 working days
4.26 € ( 5.07 € )	4 working days
3.20 € ( 3.81 € )	4 working days
3.20 € ( 3.81 € )	4 working days
3.20 € ( 3.81 € )	4 working days
6.75 € ( 8.03 € )	4 working days
6.75 € ( 8.03 € )	4 working days
6.75 € ( 8.03 € )	4 working days
6.75 € ( 8.03 € )	4 working days
4.26 € ( 5.07 € )	4 working days
6.75 € ( 8.03 € )	4 working days
6.75 € ( 8.03 € )	4 working days
6.75 € ( 8.03 € )	4 working days
4.26 € ( 5.07 € )	4 working days
4.26 € ( 5.07 € )	4 working days
4.26 € ( 5.07 € )	4 working days
6.75 € ( 8.03 € )	4 working days
6.75 € ( 8.03 € )	4 working days
6.75 € ( 8.03 € )	4 working days
6.75 € ( 8.03 € )	4 working days

More Information

Basic information

Basic information

· Simplified assembly due to safety cable

· Application fields: machine, plant and fixture construction, toolmaking

· For manually adjusting assemblies, machines and aggregates

· The star grip remains in the immediate vicinity of the object

· Cap in various colour combinations

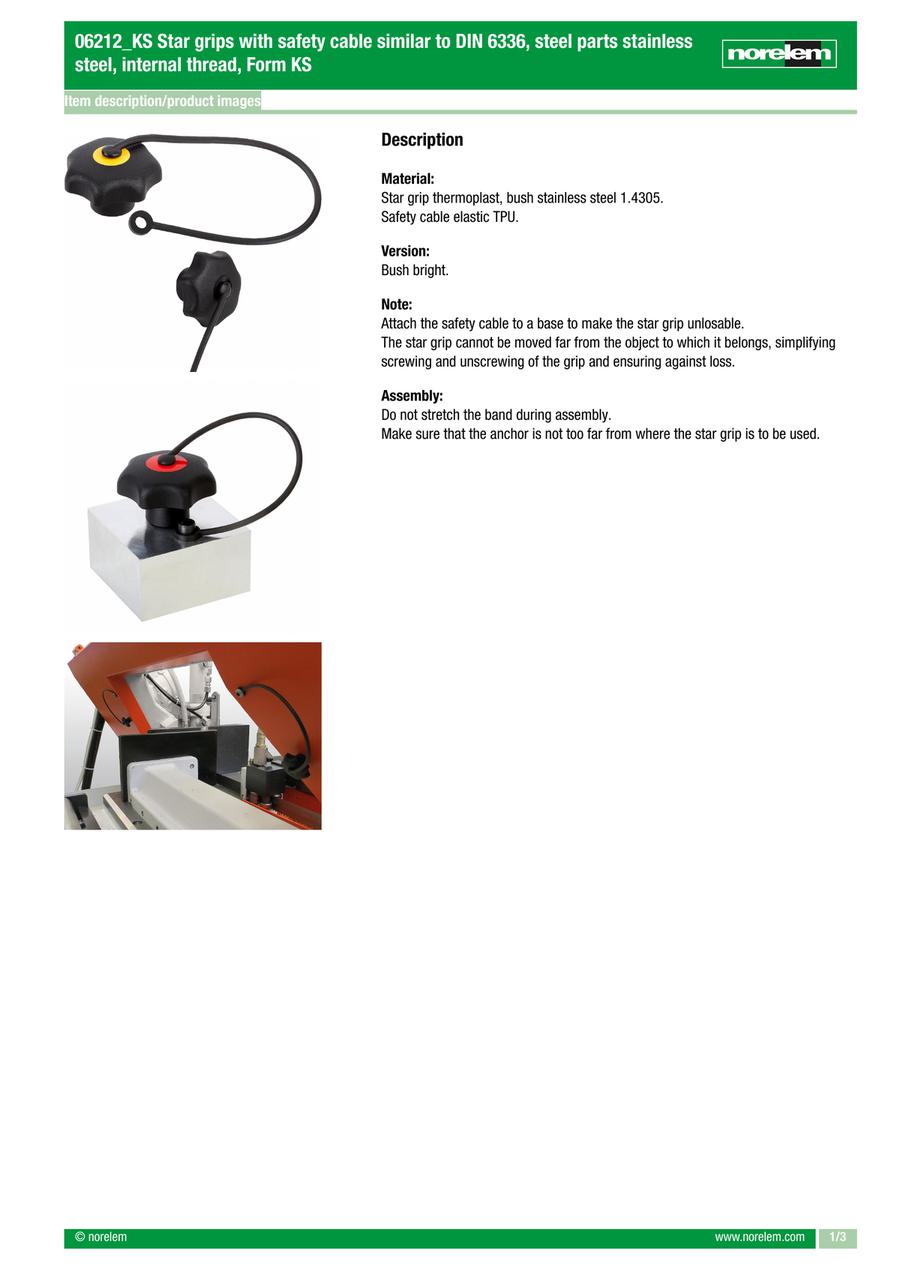

Catalog
