Star grips similar to DIN 6336, internal thread with cap, Form K (06220)

Configure

D
- M4
- M5
- M6
- M8
- M10
- M12
- M16
Outside diameter(φ)
- 25
- 32
- 40
- 50
- 63
Main Body Height t(mm)
- 16
- 20
- 25
- 32
- 40
H3
- 8
- 10
- 13
- 17
- 21
Colour Cap
D8(mm)
- 12
- 14
- 18
- 22
- 26
T=thread depth(mm)
- 10
- 14
- 18
Est. shipping days
- All
- Within 4 working days

Star grips similar to DIN 6336, internal thread with cap, Form K (06220)

Catalog

Part number:

Still undefined. 52 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Outside diameter

(φ)

Main Body Height t

(mm)

Colour Cap

(mm)

T=thread depth

(mm)

Minimum order quantity

M4	25	16	8	Jet black	12	10	1 pieces
M4	25	16	8	Light grey RAL 7035	12	10	1 pieces
M4	25	16	8	Traffic red RAL 3020	12	10	1 pieces
M4	25	16	8	Colza yellow RAL 1021	12	10	1 pieces
M5	25	16	8	Jet black	12	10	1 pieces
M5	32	20	10	Jet black	14	10	1 pieces
M5	25	16	8	Light grey RAL 7035	12	10	1 pieces
M5	25	16	8	Traffic red RAL 3020	12	10	1 pieces
M5	25	16	8	Colza yellow RAL 1021	12	10	1 pieces
M5	32	20	10	Light grey RAL 7035	14	10	1 pieces
M5	32	20	10	Traffic red RAL 3020	14	10	1 pieces
M5	32	20	10	Colza yellow RAL 1021	14	10	1 pieces
M6	32	20	10	Jet black	14	10	1 pieces
M6	25	16	8	Jet black	12	10	1 pieces
M6	32	20	10	Light grey RAL 7035	14	10	1 pieces
M6	32	20	10	Traffic red RAL 3020	14	10	1 pieces
M6	32	20	10	Colza yellow RAL 1021	14	10	1 pieces
M6	25	16	8	Light grey RAL 7035	12	10	1 pieces
M6	25	16	8	Traffic red RAL 3020	12	10	1 pieces
M6	25	16	8	Colza yellow RAL 1021	12	10	1 pieces
M8	40	25	13	Jet black	18	14	1 pieces
M8	50	32	17	Jet black	22	14	1 pieces
M8	40	25	13	Light grey RAL 7035	18	14	1 pieces
M8	40	25	13	Traffic red RAL 3020	18	14	1 pieces
M8	40	25	13	Colza yellow RAL 1021	18	14	1 pieces
M8	50	32	17	Light grey RAL 7035	22	14	1 pieces
M8	50	32	17	Traffic red RAL 3020	22	14	1 pieces
M8	50	32	17	Colza yellow RAL 1021	22	14	1 pieces
M10	50	32	17	Jet black	22	14	1 pieces
M10	40	25	13	Jet black	18	14	1 pieces
M10	63	40	21	Jet black	26	14	1 pieces
M10	50	32	17	Light grey RAL 7035	22	14	1 pieces
M10	50	32	17	Traffic red RAL 3020	22	14	1 pieces
M10	50	32	17	Colza yellow RAL 1021	22	14	1 pieces
M10	40	25	13	Light grey RAL 7035	18	14	1 pieces
M10	40	25	13	Traffic red RAL 3020	18	14	1 pieces
M10	40	25	13	Colza yellow RAL 1021	18	14	1 pieces
M10	63	40	21	Light grey RAL 7035	26	14	1 pieces
M10	63	40	21	Traffic red RAL 3020	26	14	1 pieces
M10	63	40	21	Colza yellow RAL 1021	26	14	1 pieces
M12	63	40	21	Jet black	26	18	1 pieces
M12	50	32	17	Jet black	22	18	1 pieces
M12	63	40	21	Light grey RAL 7035	26	18	1 pieces
M12	63	40	21	Traffic red RAL 3020	26	18	1 pieces
M12	63	40	21	Colza yellow RAL 1021	26	18	1 pieces
M12	50	32	17	Light grey RAL 7035	22	18	1 pieces
M12	50	32	17	Traffic red RAL 3020	22	18	1 pieces
M12	50	32	17	Colza yellow RAL 1021	22	18	1 pieces
M16	63	40	21	Jet black	26	18	1 pieces
M16	63	40	21	Light grey RAL 7035	26	18	1 pieces
M16	63	40	21	Traffic red RAL 3020	26	18	1 pieces
M16	63	40	21	Colza yellow RAL 1021	26	18	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

0.80 € ( 0.95 € )	4 working days
0.80 € ( 0.95 € )	4 working days
0.80 € ( 0.95 € )	4 working days
0.80 € ( 0.95 € )	4 working days
0.80 € ( 0.95 € )	4 working days
0.83 € ( 0.99 € )	4 working days
0.80 € ( 0.95 € )	4 working days
0.80 € ( 0.95 € )	4 working days
0.80 € ( 0.95 € )	4 working days
0.83 € ( 0.99 € )	4 working days
0.83 € ( 0.99 € )	4 working days
0.83 € ( 0.99 € )	4 working days
0.83 € ( 0.99 € )	4 working days
0.80 € ( 0.95 € )	4 working days
0.83 € ( 0.99 € )	4 working days
0.83 € ( 0.99 € )	4 working days
0.83 € ( 0.99 € )	4 working days
0.80 € ( 0.95 € )	4 working days
0.80 € ( 0.95 € )	4 working days
0.80 € ( 0.95 € )	4 working days
0.98 € ( 1.17 € )	4 working days
1.52 € ( 1.81 € )	4 working days
0.98 € ( 1.17 € )	4 working days
0.98 € ( 1.17 € )	4 working days
0.98 € ( 1.17 € )	4 working days
1.52 € ( 1.81 € )	4 working days
1.52 € ( 1.81 € )	4 working days
1.52 € ( 1.81 € )	4 working days
1.52 € ( 1.81 € )	4 working days
0.98 € ( 1.17 € )	4 working days
2.64 € ( 3.14 € )	4 working days
1.52 € ( 1.81 € )	4 working days
1.52 € ( 1.81 € )	4 working days
1.52 € ( 1.81 € )	4 working days
0.98 € ( 1.17 € )	4 working days
0.98 € ( 1.17 € )	4 working days
0.98 € ( 1.17 € )	4 working days
2.64 € ( 3.14 € )	4 working days
2.64 € ( 3.14 € )	4 working days
2.64 € ( 3.14 € )	4 working days
2.64 € ( 3.14 € )	4 working days
1.52 € ( 1.81 € )	4 working days
2.64 € ( 3.14 € )	4 working days
2.64 € ( 3.14 € )	4 working days
2.64 € ( 3.14 € )	4 working days
1.52 € ( 1.81 € )	4 working days
1.52 € ( 1.81 € )	4 working days
1.52 € ( 1.81 € )	4 working days
3.93 € ( 4.68 € )	4 working days
3.93 € ( 4.68 € )	4 working days
3.93 € ( 4.68 € )	4 working days
3.93 € ( 4.68 € )	4 working days

More Information

Basic information

Basic information

· Can be used as a clamping, retaining and fastening element

· Application fields: machine, plant and fixture construction, toolmaking

· For manually adjusting assemblies, machines and aggregates

· Form K: internal thread with cap

· Cap in various colour combinations

Catalog

Products homepage

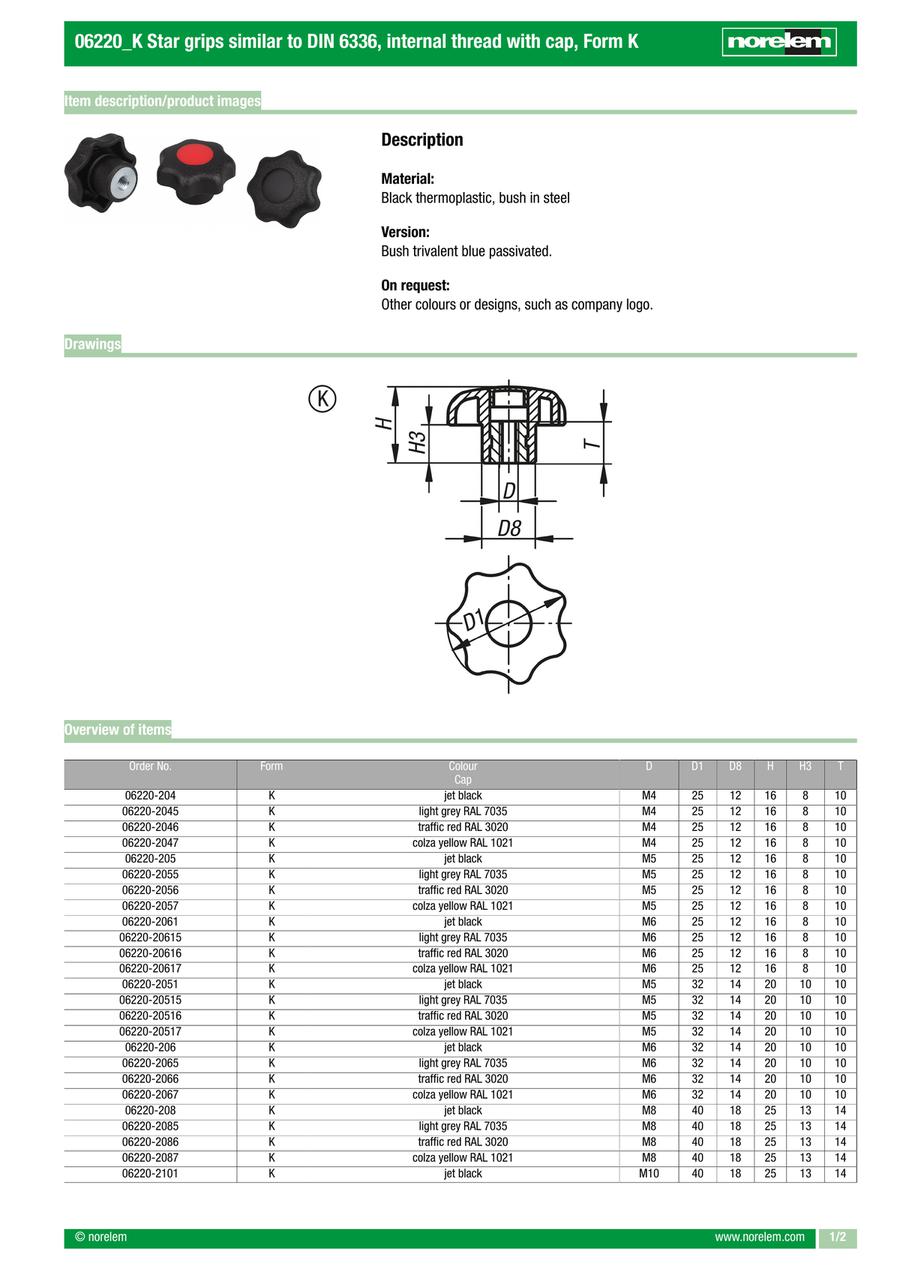

Catalog (2-page spread)
