Configure

D
- M8
- M10
- M12
- M16
Outside diameter(φ)
- 50
- 63
Main Body Height t(mm)
- 34.8
- 44
H2
- 11.5
- 14.5
Component material
- Stainless steel
- Steel
Colour Cap
D2(mm)
- 22.2
- 28
D3(mm)
- 28.2
- 35.5
H1(Nm)
- 17.8
- 22.5
T=thread depth(mm)
- 14
- 18
Est. shipping days
- All
- Within 4 working days

Five lobe grips with internal thread (06253)

Catalog

Part number:

Still undefined. 44 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Outside diameter

(φ)

Main Body Height t

(mm)

Component material

Colour Cap

(mm)

(Nm)

T=thread depth

(mm)

Minimum order quantity

M8	50	34.8	11.5	Steel	Black grey RAL 7021	22.2	28.2	17.8	14	1 pieces
M8	50	34.8	11.5	Stainless steel	Black grey RAL 7021	22.2	28.2	17.8	14	1 pieces
M8	50	34.8	11.5	Steel	Light grey RAL 7035	22.2	28.2	17.8	14	1 pieces
M8	50	34.8	11.5	Steel	Traffic red RAL 3020	22.2	28.2	17.8	14	1 pieces
M8	50	34.8	11.5	Steel	Rape yellow RAL 1021	22.2	28.2	17.8	14	1 pieces
M8	50	34.8	11.5	Stainless steel	Light grey RAL 7035	22.2	28.2	17.8	14	1 pieces
M8	50	34.8	11.5	Stainless steel	Traffic red RAL 3020	22.2	28.2	17.8	14	1 pieces
M8	50	34.8	11.5	Stainless steel	Rape yellow RAL 1021	22.2	28.2	17.8	14	1 pieces
M10	50	34.8	11.5	Steel	Black grey RAL 7021	22.2	28.2	17.8	14	1 pieces
M10	50	34.8	11.5	Stainless steel	Black grey RAL 7021	22.2	28.2	17.8	14	1 pieces
M12	50	34.8	11.5	Steel	Black grey RAL 7021	22.2	28.2	17.8	18	1 pieces
M10	50	34.8	11.5	Steel	Light grey RAL 7035	22.2	28.2	17.8	14	1 pieces
M10	50	34.8	11.5	Steel	Traffic red RAL 3020	22.2	28.2	17.8	14	1 pieces
M10	50	34.8	11.5	Steel	Rape yellow RAL 1021	22.2	28.2	17.8	14	1 pieces
M10	50	34.8	11.5	Stainless steel	Light grey RAL 7035	22.2	28.2	17.8	14	1 pieces
M10	50	34.8	11.5	Stainless steel	Traffic red RAL 3020	22.2	28.2	17.8	14	1 pieces
M10	50	34.8	11.5	Stainless steel	Rape yellow RAL 1021	22.2	28.2	17.8	14	1 pieces
M12	50	34.8	11.5	Stainless steel	Black grey RAL 7021	22.2	28.2	17.8	18	1 pieces
M12	50	34.8	11.5	Steel	Light grey RAL 7035	22.2	28.2	17.8	18	1 pieces
M12	50	34.8	11.5	Steel	Traffic red RAL 3020	22.2	28.2	17.8	18	1 pieces
M12	50	34.8	11.5	Steel	Rape yellow RAL 1021	22.2	28.2	17.8	18	1 pieces
M12	50	34.8	11.5	Stainless steel	Light grey RAL 7035	22.2	28.2	17.8	18	1 pieces
M12	50	34.8	11.5	Stainless steel	Traffic red RAL 3020	22.2	28.2	17.8	18	1 pieces
M12	50	34.8	11.5	Stainless steel	Rape yellow RAL 1021	22.2	28.2	17.8	18	1 pieces
M10	63	44	14.5	Steel	Black grey RAL 7021	28	35.5	22.5	14	1 pieces
M10	63	44	14.5	Stainless steel	Black grey RAL 7021	28	35.5	22.5	14	1 pieces
M12	63	44	14.5	Steel	Black grey RAL 7021	28	35.5	22.5	18	1 pieces
M10	63	44	14.5	Steel	Light grey RAL 7035	28	35.5	22.5	14	1 pieces
M16	63	44	14.5	Steel	Black grey RAL 7021	28	35.5	22.5	18	1 pieces
M10	63	44	14.5	Steel	Traffic red RAL 3020	28	35.5	22.5	14	1 pieces
M10	63	44	14.5	Steel	Rape yellow RAL 1021	28	35.5	22.5	14	1 pieces
M10	63	44	14.5	Stainless steel	Light grey RAL 7035	28	35.5	22.5	14	1 pieces
M10	63	44	14.5	Stainless steel	Traffic red RAL 3020	28	35.5	22.5	14	1 pieces
M10	63	44	14.5	Stainless steel	Rape yellow RAL 1021	28	35.5	22.5	14	1 pieces
M12	63	44	14.5	Stainless steel	Black grey RAL 7021	28	35.5	22.5	18	1 pieces
M12	63	44	14.5	Steel	Light grey RAL 7035	28	35.5	22.5	18	1 pieces
M12	63	44	14.5	Steel	Traffic red RAL 3020	28	35.5	22.5	18	1 pieces
M12	63	44	14.5	Steel	Rape yellow RAL 1021	28	35.5	22.5	18	1 pieces
M16	63	44	14.5	Steel	Light grey RAL 7035	28	35.5	22.5	18	1 pieces
M16	63	44	14.5	Steel	Traffic red RAL 3020	28	35.5	22.5	18	1 pieces
M16	63	44	14.5	Steel	Rape yellow RAL 1021	28	35.5	22.5	18	1 pieces
M12	63	44	14.5	Stainless steel	Light grey RAL 7035	28	35.5	22.5	18	1 pieces
M12	63	44	14.5	Stainless steel	Traffic red RAL 3020	28	35.5	22.5	18	1 pieces
M12	63	44	14.5	Stainless steel	Rape yellow RAL 1021	28	35.5	22.5	18	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

2.65 € ( 3.15 € )	4 working days
4.00 € ( 4.76 € )	4 working days
2.65 € ( 3.15 € )	4 working days
2.65 € ( 3.15 € )	4 working days
2.65 € ( 3.15 € )	4 working days
4.00 € ( 4.76 € )	4 working days
4.00 € ( 4.76 € )	4 working days
4.00 € ( 4.76 € )	4 working days
2.65 € ( 3.15 € )	4 working days
4.00 € ( 4.76 € )	4 working days
3.04 € ( 3.62 € )	4 working days
2.65 € ( 3.15 € )	4 working days
2.65 € ( 3.15 € )	4 working days
2.65 € ( 3.15 € )	4 working days
4.00 € ( 4.76 € )	4 working days
4.00 € ( 4.76 € )	4 working days
4.00 € ( 4.76 € )	4 working days
4.43 € ( 5.27 € )	4 working days
3.04 € ( 3.62 € )	4 working days
3.04 € ( 3.62 € )	4 working days
3.04 € ( 3.62 € )	4 working days
4.43 € ( 5.27 € )	4 working days
4.43 € ( 5.27 € )	4 working days
4.43 € ( 5.27 € )	4 working days
3.20 € ( 3.81 € )	4 working days
4.51 € ( 5.37 € )	4 working days
3.49 € ( 4.15 € )	4 working days
3.20 € ( 3.81 € )	4 working days
3.62 € ( 4.31 € )	4 working days
3.20 € ( 3.81 € )	4 working days
3.20 € ( 3.81 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.51 € ( 5.37 € )	4 working days
4.91 € ( 5.84 € )	4 working days
3.49 € ( 4.15 € )	4 working days
3.49 € ( 4.15 € )	4 working days
3.49 € ( 4.15 € )	4 working days
3.62 € ( 4.31 € )	4 working days
3.62 € ( 4.31 € )	4 working days
3.62 € ( 4.31 € )	4 working days
4.91 € ( 5.84 € )	4 working days
4.91 € ( 5.84 € )	4 working days
4.91 € ( 5.84 € )	4 working days

More Information

Basic information

Basic information

· Can be used as a clamping, retaining and fastening element

· Application fields: machine, plant and fixture construction, toolmaking

· For manually adjusting assemblies, machines and aggregates

· Various colours available

Catalog

Products homepage

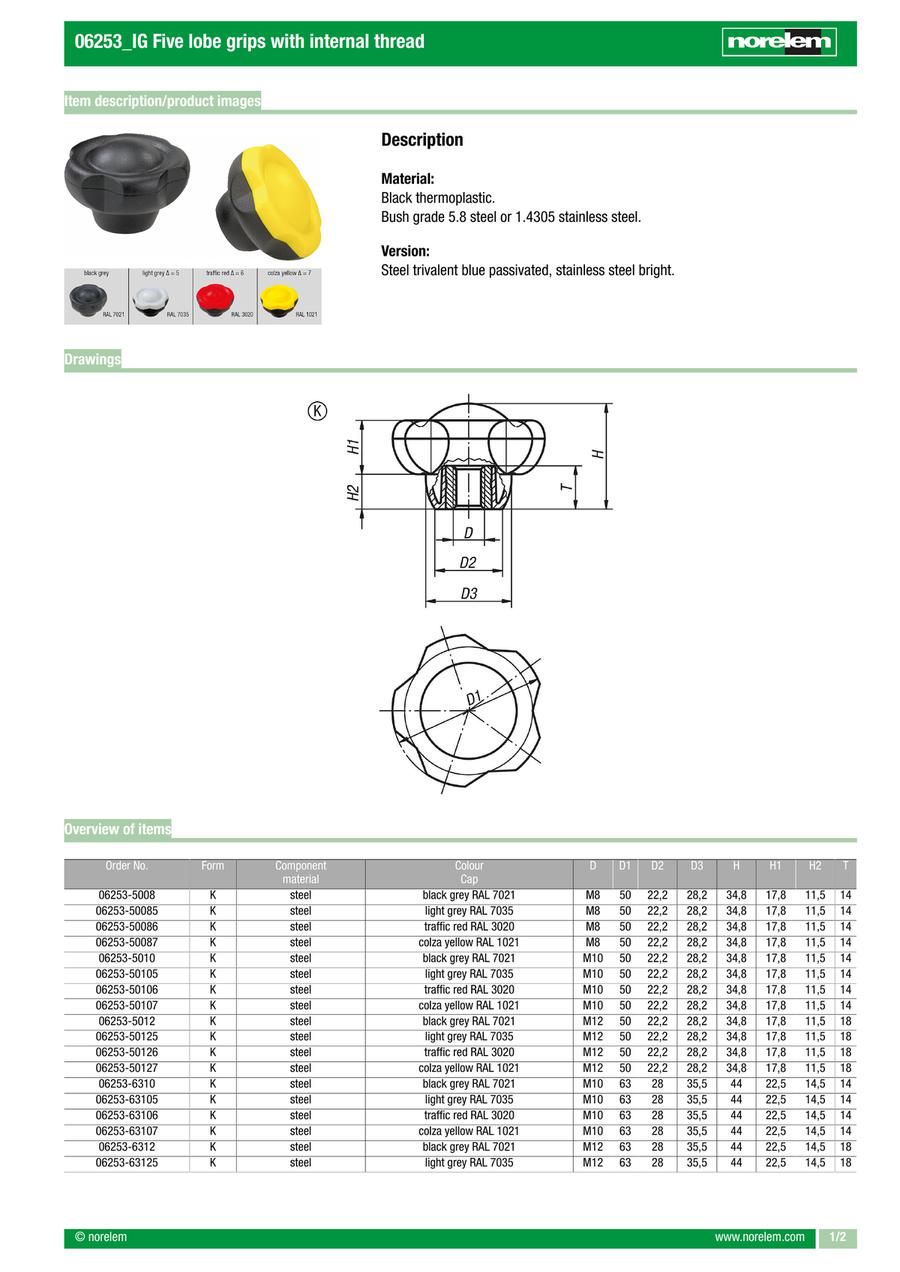

Catalog (2-page spread)
