NORELEM

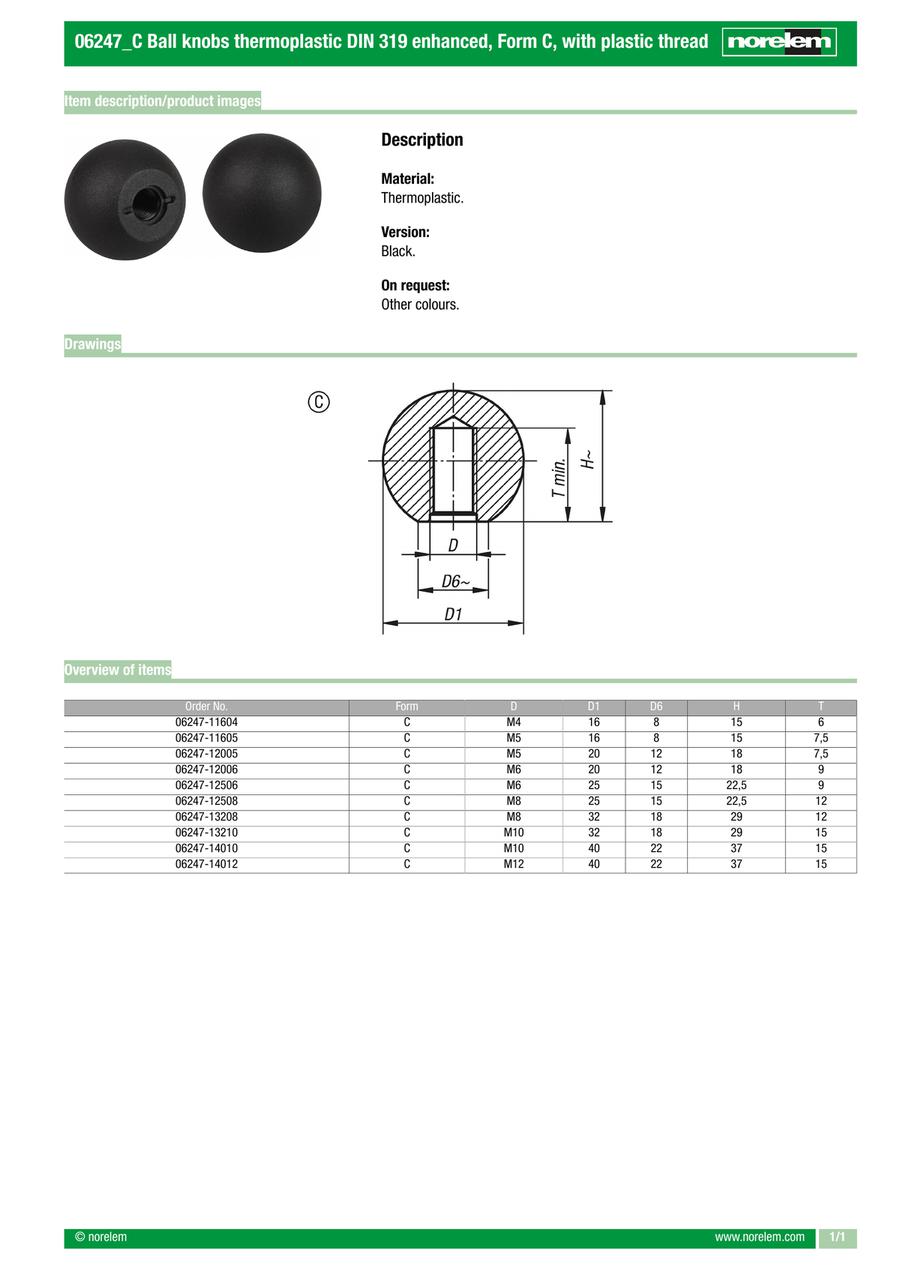

Ball knobs thermoplastic DIN 319 enhanced, Form C, with plastic thread (06247)

Ball knobs thermoplastic DIN 319 enhanced, Form C, with plastic thread (06247)

Part number:

Still undefined. 10 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06247-11604
    06247-11605
    06247-12005
    06247-12006
    06247-12506
    06247-12508
    06247-13208
    06247-13210
    06247-14010
    06247-14012

    D

    Outside diameter

    (φ)

    Main Body Height t

    (mm)

    D6

    (mm)

    T=thread depth

    (mm)

    		Minimum order quantity
    M4
    16
    15
    8
    6
    1 pieces
    M5
    16
    15
    8
    7.5
    1 pieces
    M5
    20
    18
    12
    7.5
    1 pieces
    M6
    20
    18
    12
    9
    1 pieces
    M6
    25
    22.5
    15
    9
    1 pieces
    M8
    25
    22.5
    15
    12
    1 pieces
    M8
    32
    29
    18
    12
    1 pieces
    M10
    32
    29
    18
    15
    1 pieces
    M10
    40
    37
    22
    15
    1 pieces
    M12
    40
    37
    22
    15
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    0.54 €
    ( 0.64 € )
    4 working days
    0.54 €
    ( 0.64 € )
    4 working days
    0.55 €
    ( 0.65 € )
    4 working days
    0.55 €
    ( 0.65 € )
    4 working days
    0.66 €
    ( 0.79 € )
    4 working days
    0.66 €
    ( 0.79 € )
    4 working days
    0.81 €
    ( 0.96 € )
    4 working days
    0.81 €
    ( 0.96 € )
    4 working days
    1.38 €
    ( 1.64 € )
    4 working days
    1.57 €
    ( 1.87 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form C: plastic thread

    · Different thread sizes
