Screw-in hydraulic cylinders double-acting (K1860)

Configure

D1(mm)
- 22
- 28
- 35
- 45
- 55
H1(mm)
- 50
- 51
- 56
- 64
- 66
- 67
- 68
- 84
- 85
- 86
- 89
- 93
H2(mm)
- 12
- 14.5
- 16.5
H3(mm)
- 24
- 25
- 28
- 30
H4(mm)
- 41
- 43
- 44
- 49
H5(mm)
- 24
- 25
- 28
- 30
SW=key width(mm)
- 8
- 10
- 13
- 17
- 22
Travel S(mm)
- 16
- 20
- 25
- 32
- 50
D(mm)
- 20
- 26
- 33
- 43
- 53
D2(mm)
- 10
- 12
- 16
- 20
- 25
D3(mm)
- 3.5
- 4.2
- 5.2
L(mm)
- 23
- 28
- 30
- 40
- 50
Compressive force at 100 bar(kN)
- 2
- 3.14
- 4.91
- 8.04
- 12.57
Compressive force at 500 bar(kN)
- 10
- 15.70
- 24.50
- 40.20
- 62.80
G(mm)
G1
H(mm)
- 56
- 57
- 63
- 72
- 73
- 74
- 78
- 90
- 91
- 93
- 99
- 103
H6(mm)
- 8
- 10
- 11
- 13
- 16
H7(mm)
- 38
- 40
- 41
- 46
Piston Ø(mm)
- 16
- 20
- 25
- 32
- 40
Oil requirement / 10mm Travel(cm³)
- 2
- 3.14
- 4.91
- 8.04
- 12.57
Oil requirement / 10mm Return Stroke(cm³)
- 1.22
- 2.02
- 2.90
- 4.90
- 7.66
Tractive force at 100 bar(kN)
- 1.22
- 2.02
- 2.9
- 4.9
- 7.66
Tractive force at 500 bar(kN)
- 6.10
- 10
- 14.50
- 24.50
- 38.30
Weight(kg)
- 0.1440
- 0.1700
- 0.2000
- 0.2099
- 0.2500
- 0.3200
- 0.3600
- 0.4800
- 0.7100
- 0.8700
- 1.0500
- 1.3500
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 4 working days

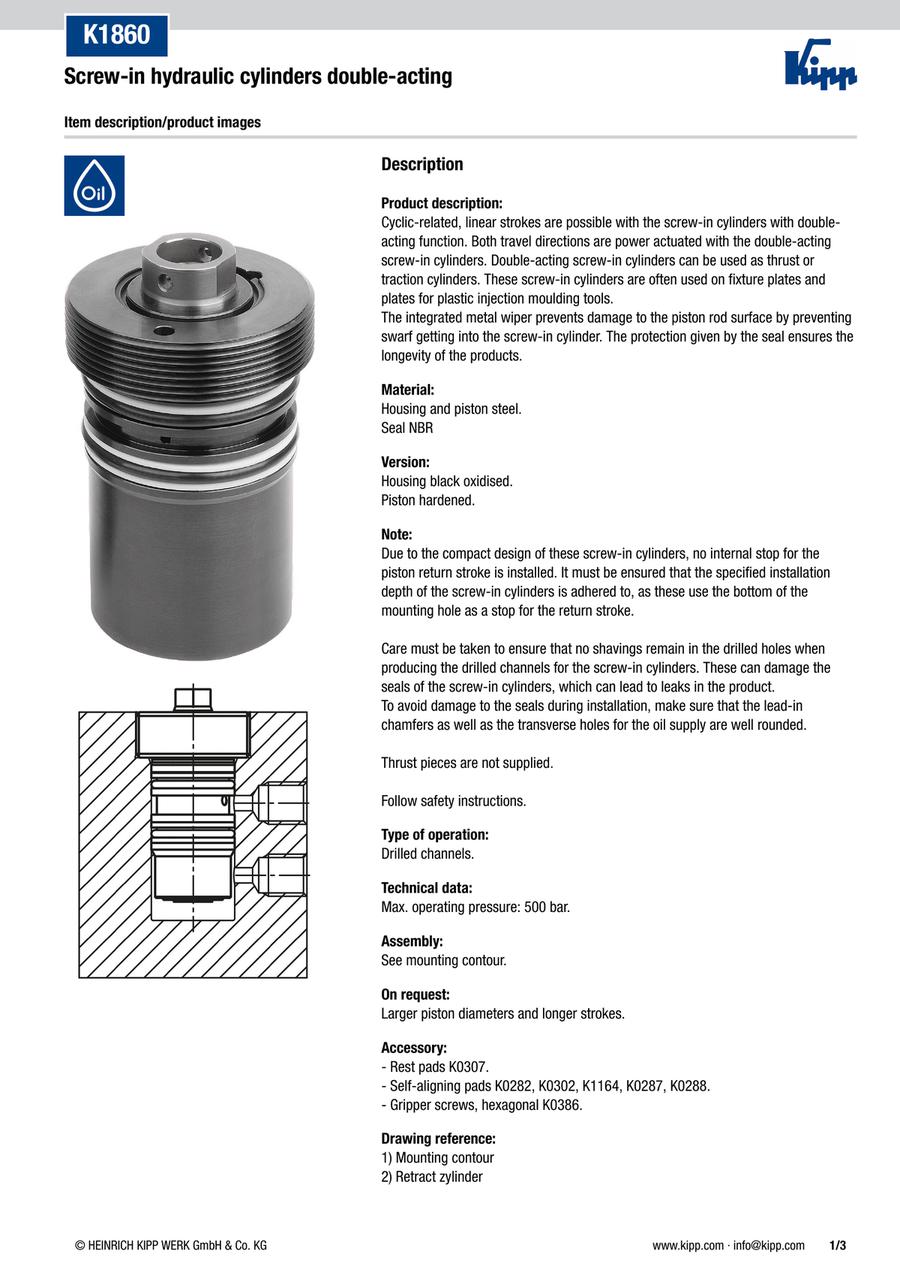

Screw-in hydraulic cylinders double-acting (K1860)

Catalog

Part number:

Still undefined. 12 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

(mm)

SW=key width

(mm)

Travel S

(mm)

Compressive force at 100 bar

(kN)

Compressive force at 500 bar

(kN)

(mm)

Piston Ø

(mm)

Oil requirement / 10mm Travel

(cm³)

Oil requirement / 10mm Return Stroke

(cm³)

Tractive force at 100 bar

(kN)

Tractive force at 500 bar

(kN)

Weight

(kg)

Minimum order quantity

22	50	12	24	41	24	8	16	20	10	3.5	23	2	10	M30x1.5	M6x15	56	8	38	16	2	1.22	1.22	6.10	0.1440	1 pieces
22	66	12	24	41	24	8	32	20	10	3.5	23	2	10	M30x1.5	M6x15	72	8	38	16	2	1.22	1.22	6.10	0.1700	1 pieces
22	84	12	24	41	24	8	50	20	10	3.5	23	2	10	M30x1.5	M6x15	90	8	38	16	2	1.22	1.22	6.10	0.2000	1 pieces
28	51	12	25	43	25	10	16	26	12	4.2	28	3.14	15.70	M36x1.5	M8x16	57	10	40	20	3.14	2.02	2.02	10	0.2099	1 pieces
28	67	12	25	43	25	10	32	26	12	4.2	28	3.14	15.70	M36x1.5	M8x16	73	10	40	20	3.14	2.02	2.02	10	0.2500	1 pieces
28	85	12	25	43	25	10	50	26	12	4.2	28	3.14	15.70	M36x1.5	M8x16	91	10	40	20	3.14	2.02	2.02	10	0.3200	1 pieces
35	56	12	25	43	25	13	20	33	16	5.2	30	4.91	24.50	M42x1.5	M10x17	63	11	40	25	4.91	2.90	2.9	14.50	0.3600	1 pieces
35	86	12	25	43	25	13	50	33	16	5.2	30	4.91	24.50	M42x1.5	M10x17	93	11	40	25	4.91	2.90	2.9	14.50	0.4800	1 pieces
45	64	14.5	28	44	28	17	25	43	20	5.2	40	8.04	40.20	M56x2	M12x18	74	13	41	32	8.04	4.90	4.9	24.50	0.7100	1 pieces
45	89	14.5	28	44	28	17	50	43	20	5.2	40	8.04	40.20	M56x2	M12x18	99	13	41	32	8.04	4.90	4.9	24.50	0.8700	1 pieces
55	68	16.5	30	49	30	22	25	53	25	5.2	50	12.57	62.80	M64x2	M16x27	78	16	46	40	12.57	7.66	7.66	38.30	1.0500	1 pieces
55	93	16.5	30	49	30	22	50	53	25	5.2	50	12.57	62.80	M64x2	M16x27	103	16	46	40	12.57	7.66	7.66	38.30	1.3500	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

170.04 € ( 202.35 € )	4 working days
177.18 € ( 210.84 € )	4 working days
185.50 € ( 220.75 € )	4 working days
172.42 € ( 205.18 € )	4 working days
178.37 € ( 212.26 € )	4 working days
186.69 € ( 222.16 € )	4 working days
177.18 € ( 210.84 € )	4 working days
189.07 € ( 224.99 € )	4 working days
227.11 € ( 270.26 € )	4 working days
248.53 € ( 295.75 € )	4 working days
256.84 € ( 305.64 € )	4 working days
277.06 € ( 329.70 € )	4 working days

More Information

Basic information

Basic information

· Integrated metal wiper

· Low mounting dimensions.

· Housing is fully embedded in clamping fixture

Catalog

Products homepage

Catalog (2-page spread)
