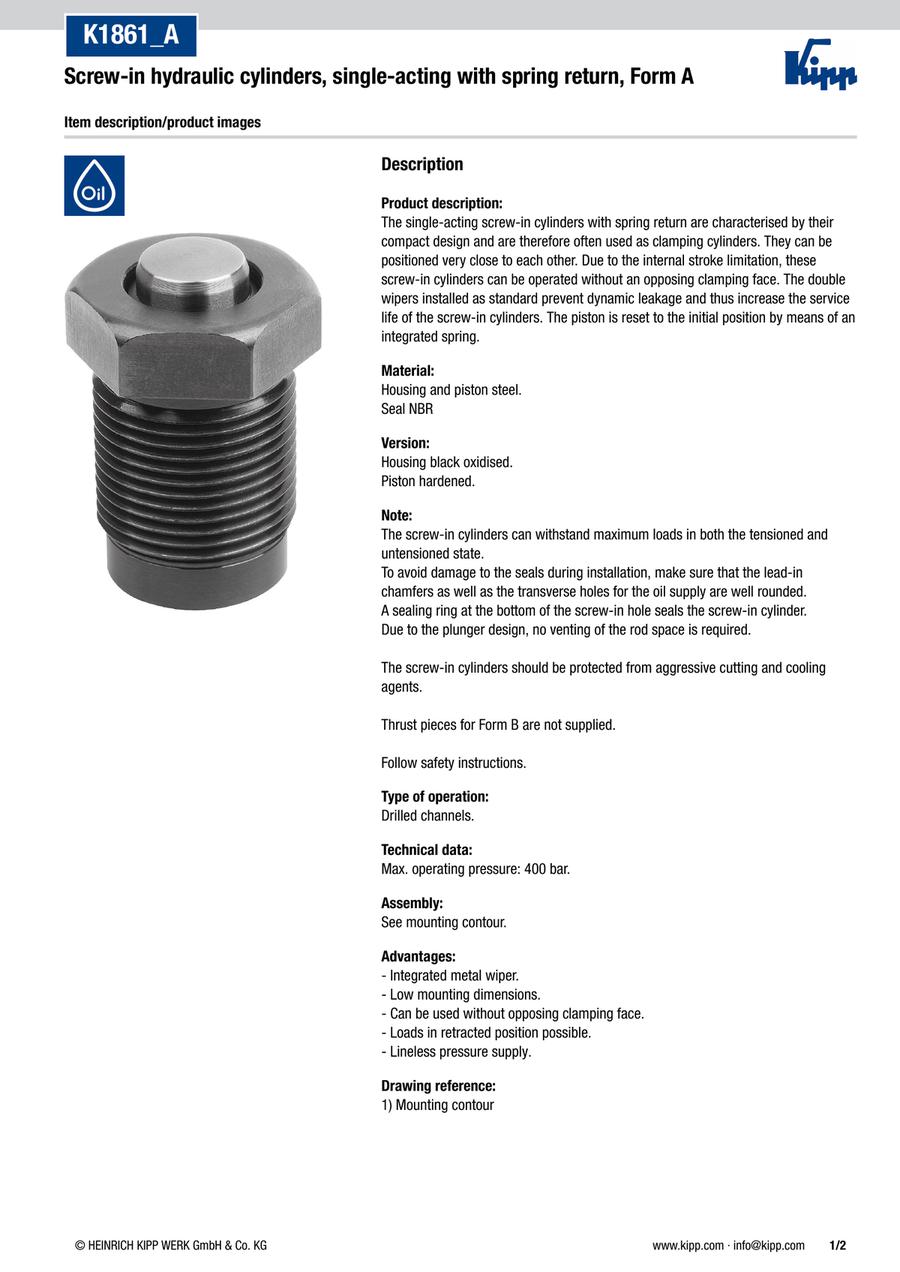

Screw-in hydraulic cylinders, single-acting with spring return, Form A (K1861)
· Double wiper
· High load rating
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1861.1210230711 |
| K1861.1612230711 |
| K1861.2015230711 |
| K1861.2516230711 |
| K1861.3220230711 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | H1 (mm) | H2 (mm) | H3 (mm) | SW=key width (mm) | Travel S (mm) | Tightening torque max. (Nm) | D (mm) | L (mm) | R (mm) | Spring return force min. (N) | G (mm) | H (mm) | H8 (mm) | H9 (mm) | Piston Ø (mm) | Oil requirement / 10mm Travel (cm³) | Clamping force at 100 bar (kN) | Clamping force at 400 bar (kN) | Weight (kg) | H10 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
64.22 € | 1 | 4 Days | 27 | 7 | 3 | 24 | 10 | 40 | 6 | 31 | 25 | 30 | M22x1.5 | 38 | 15 | 6 | 12 | 1.13 | 1.1 | 4.5 | 0.1000 | 26.5 | ||
71.35 € | 1 | 4 Days | 34 | 8 | 3 | 27 | 12 | 50 | 6 | 34 | 35 | 50 | M26x1.5 | 46.5 | 19 | 7 | 16 | 2.01 | 2 | 8 | 0.1600 | 33.5 | ||
83.24 € | 1 | 4 Days | 43 | 8 | 4 | 32 | 15 | 60 | 7 | 40 | 50 | 75 | M30x1.5 | 56 | 23 | 7 | 20 | 3.14 | 3.1 | 12.5 | 0.2600 | 42.5 | ||
96.31 € | 1 | 4 Days | 45.5 | 11 | 5 | 41 | 16 | 80 | 7 | 52 | 70 | 125 | M38x1.5 | 59.5 | 26.5 | 10 | 25 | 4.91 | 4.9 | 19.6 | 0.4300 | 45 | ||
171.24 € | 1 | 4 Days | 71.5 | 12 | 7 | 50 | 20 | 225 | 8 | 62 | 100 | 200 | M48x1.5 | 87 | 40 | 11 | 32 | 8.04 | 8 | 32 | 1.0300 | 71 |
Loading...
Basic information
| Item | Screw-in cylinder | Main material | steel | Surface finish body | black oxidised |
|---|---|---|---|---|---|
| Version 1 | hydraulic | Form | A | Connection type | drilled channels |
| Form definition | single-acting | PL Edelstahl | false | RoHS | true |
