Configure
- Form-Type
- B=Width(mm)
- 28
- 35
- 43
- H=Height(mm)
- 26
- 34
- 44
- L=Length(mm)
- 210
- 370
- 450
- 530
- 610
- 770
- 930
- Travel S(mm)
- 232
- 380
- 406
- 464
- 486
- 494
- 548
- 556
- 558
- 626
- 646
- 796
- 966
- C0Y(N)
- 432
- 968
- 1025
- 1107
- 1169
- 1250
- 1685
- 1828
- 1908
- 2375
- 2506
- 2934
- 3055
- C0Z(N)
- 302
- 325
- 385
- 471
- 626
- 718
- 728
- 793
- 833
- 1016
- 1279
- 1300
- 1434
- Size
- 28
- 35
- 43
- H2(mm)
- 7.5
- 10
- 13.5
- Number of holes
- 3
- 5
- 6
- 7
- 8
- 10
- 12
- Weight(kg)
- 0.8464
- 0.8535
- 1.4900
- 1.8300
- 1.8400
- 2.1100
- 2.1530
- 2.1900
- 2.7300
- 2.7500
- 3.2300
- 3.2400
- 3.7100
- 4.7000
- 4.7500
- 5.5600
- 5.6100
- 6.3700
- 6.4850
- 8.0700
- 8.1400
- 9.8100
- 9.8900
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

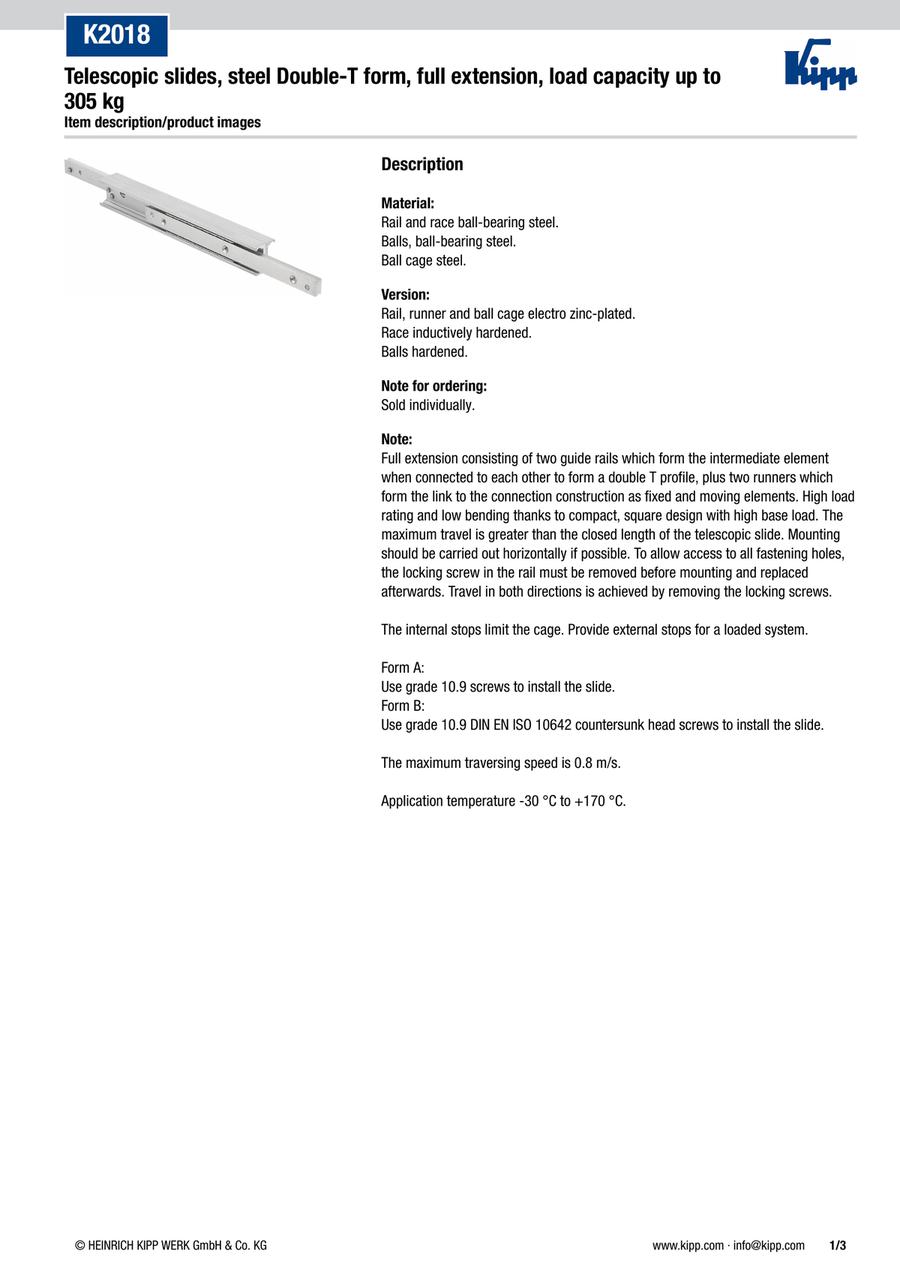

Telescopic slides, Steel Double-T form, full extension, load capacity up to 305 kg (K2018)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
216.81 € ( 258.00 € ) | 4 working days |
289.96 € ( 345.05 € ) | 4 working days |
323.05 € ( 384.43 € ) | 4 working days |
358.40 € ( 426.50 € ) | 4 working days |
327.82 € ( 390.11 € ) | 4 working days |
382.19 € ( 454.81 € ) | 4 working days |
415.24 € ( 494.14 € ) | 4 working days |
467.12 € ( 555.87 € ) | 4 working days |
485.92 € ( 578.24 € ) | 4 working days |
521.31 € ( 620.36 € ) | 4 working days |
582.44 € ( 693.10 € ) | 4 working days |
698.18 € ( 830.83 € ) | 4 working days |
768.90 € ( 914.99 € ) | 4 working days |
216.81 € ( 258.00 € ) | 4 working days |
289.96 € ( 345.05 € ) | 4 working days |
323.05 € ( 384.43 € ) | 4 working days |
358.40 € ( 426.50 € ) | 4 working days |
327.82 € ( 390.11 € ) | 4 working days |
382.19 € ( 454.81 € ) | 4 working days |
415.24 € ( 494.14 € ) | 4 working days |
467.12 € ( 555.87 € ) | 4 working days |
485.92 € ( 578.24 € ) | 4 working days |
521.31 € ( 620.36 € ) | 4 working days |
582.44 € ( 693.10 € ) | 4 working days |
698.18 € ( 830.83 € ) | 4 working days |
768.90 € ( 914.99 € ) | 4 working days |
More Information
Basic information
· Full extension comprising two guide rails and two runners
· Strokes of up to 966 mm
· Loads of up to 3055 N
· High load rating and low deflection
· Hardened tracks and balls
