Sprockets KRF, Teeth Hardened, ISO 10 B-1(Part number list: 3 page)

Configure

Number of Teeth(T)
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
Bore ^H7(mm)
- 15
- 16
- 18
- 19
- 20
- 22
- 24
- 25
- 28
- 30
- 32
- 35
- 38
- 40
- 42
Version
- A
- B
Outer diameter d_a(mm)
- 57.5
- 63
- 68
- 73
- 78
- 83
- 88
- 93
- 98.3
- 103.3
- 108.4
- 113.4
- 118
- 123.4
- 128.3
- 134
Pitch circle diameter d(mm)
- 51.37
- 56.34
- 61.34
- 66.32
- 71.34
- 76.36
- 81.37
- 86.39
- 91.42
- 96.45
- 101.49
- 106.52
- 111.55
- 116.58
- 121.62
- 126.66
Hub diameter ND(mm)
- 35
- 37
- 42
- 44
- 45
- 47
- 49
- 51
- 52
- 57
- 60
- 70
- 75
- 80
Total length L(mm)
- 25
- 30
Keyway width K^H9(mm)
- 5
- 6
- 8
- 10
- 12
Depth of keyway T₂(mm)
- 2.3
- 2.8
- 3.3
Thread size M
- M 4
- M 5
- M 6
- M 8
- M 10
Est. shipping days
- All
- Within 4 working days

Sprockets KRF, Teeth Hardened, ISO 10 B-1(Part number list: 3 page)

Catalog

Part number:

Still undefined. 171 possible part numbers found.

Part number list
More Information

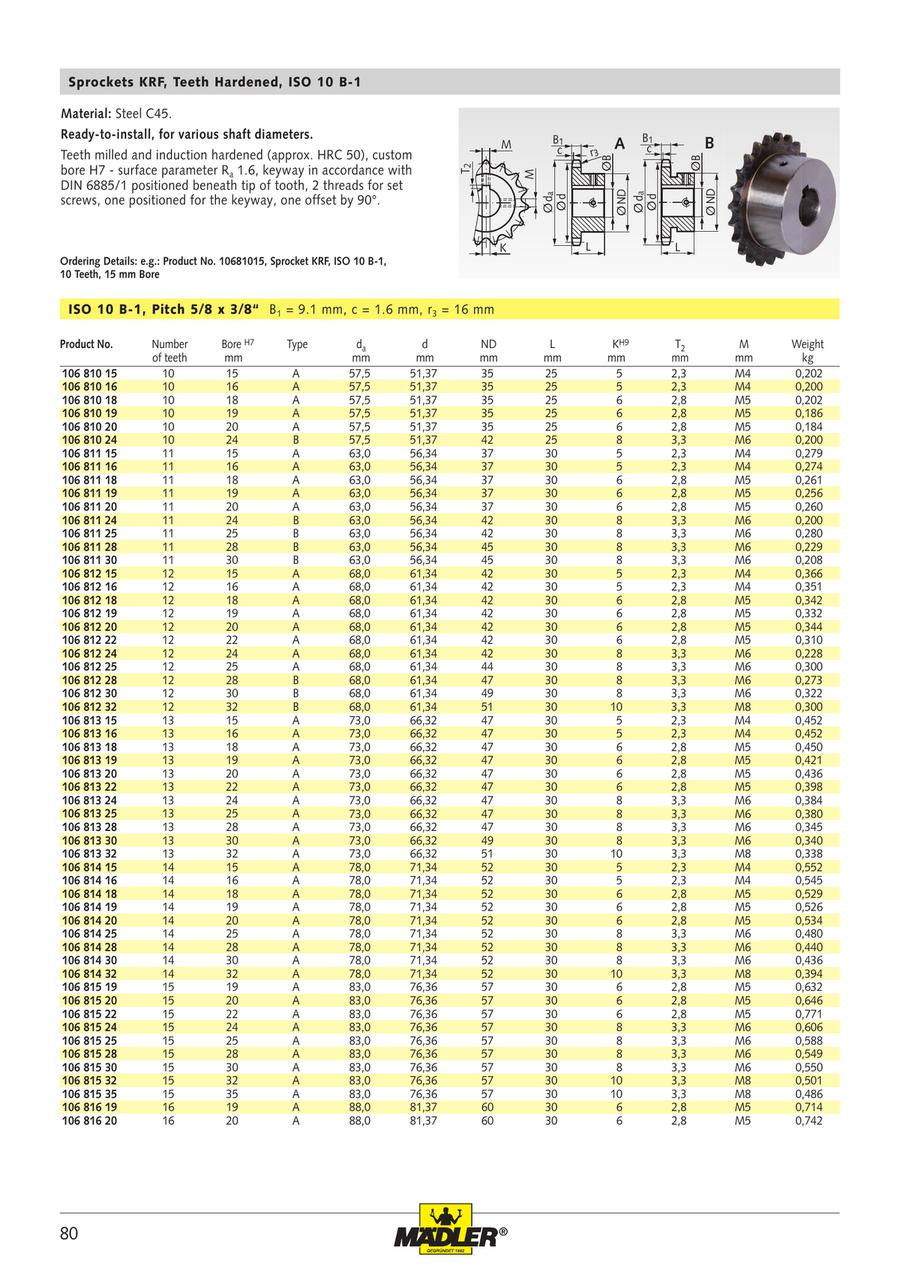

Catalog

Part number list

Number of items

Part number

Number of Teeth

(T)

Bore ^H7

(mm)

Version

Outer diameter d_a

(mm)

Pitch circle diameter d

(mm)

Hub diameter ND

(mm)

Total length L

(mm)

Keyway width K^H9

(mm)

Depth of keyway T₂

(mm)

Thread size M

Weight

(kg)

Minimum order quantity

21	38	A	113.4	106.52	75	30	10	3.3	M 8	1.011	1 pieces
21	40	A	113.4	106.52	75	30	12	3.3	M 10	1.032	1 pieces
21	42	A	113.4	106.52	75	30	12	3.3	M 10	0.963	1 pieces
22	19	A	118	111.55	80	30	6	2.8	M 5	1.383	1 pieces
22	20	A	118	111.55	80	30	6	2.8	M 5	1.14	1 pieces
22	22	A	118	111.55	80	30	6	2.8	M 5	1.36	1 pieces
22	24	A	118	111.55	80	30	8	3.3	M 6	1.34	1 pieces
22	25	A	118	111.55	80	30	8	3.3	M 6	1.186	1 pieces
22	28	A	118	111.55	80	30	8	3.3	M 6	1.297	1 pieces
22	30	A	118	111.55	80	30	8	3.3	M 6	1.322	1 pieces
22	32	A	118	111.55	80	30	10	3.3	M 8	1.253	1 pieces
22	35	A	118	111.55	80	30	10	3.3	M 8	1.264	1 pieces
22	38	A	118	111.55	80	30	10	3.3	M 8	1.176	1 pieces
22	40	A	118	111.55	80	30	12	3.3	M 10	1.184	1 pieces
22	42	A	118	111.55	80	30	12	3.3	M 10	1.108	1 pieces
23	19	A	123.4	116.58	80	30	6	2.8	M 5	1.431	1 pieces
23	20	A	123.4	116.58	80	30	6	2.8	M 5	1.216	1 pieces
23	22	A	123.4	116.58	80	30	6	2.8	M 5	1.422	1 pieces
23	24	A	123.4	116.58	80	30	8	3.3	M 6	1.395	1 pieces
23	25	A	123.4	116.58	80	30	8	3.3	M 6	1.25	1 pieces
23	28	A	123.4	116.58	80	30	8	3.3	M 6	1.359	1 pieces
23	30	A	123.4	116.58	80	30	8	3.3	M 6	1.382	1 pieces
23	32	A	123.4	116.58	80	30	10	3.3	M 8	1.315	1 pieces
23	35	A	123.4	116.58	80	30	10	3.3	M 8	1.332	1 pieces
23	38	A	123.4	116.58	80	30	10	3.3	M 8	1.233	1 pieces
23	40	A	123.4	116.58	80	30	12	3.3	M 10	1.258	1 pieces
23	42	A	123.4	116.58	80	30	12	3.3	M 10	1.177	1 pieces
24	19	A	128.3	121.62	80	30	6	2.8	M 5	1.5	1 pieces
24	20	A	128.3	121.62	80	30	6	2.8	M 5	1.278	1 pieces
24	22	A	128.3	121.62	80	30	6	2.8	M 5	1.475	1 pieces
24	24	A	128.3	121.62	80	30	8	3.3	M 6	1.474	1 pieces
24	25	A	128.3	121.62	80	30	8	3.3	M 6	1.328	1 pieces
24	28	A	128.3	121.62	80	30	8	3.3	M 6	1.429	1 pieces
24	30	A	128.3	121.62	80	30	8	3.3	M 6	1.454	1 pieces
24	32	A	128.3	121.62	80	30	10	3.3	M 8	1.381	1 pieces
24	35	A	128.3	121.62	80	30	10	3.3	M 8	1.388	1 pieces
24	38	A	128.3	121.62	80	30	10	3.3	M 8	1.302	1 pieces
24	40	A	128.3	121.62	80	30	12	3.3	M 10	1.328	1 pieces
24	42	A	128.3	121.62	80	30	12	3.3	M 10	1.244	1 pieces
25	19	A	134	126.66	80	30	6	2.8	M 5	1.581	1 pieces
25	20	A	134	126.66	80	30	6	2.8	M 5	1.352	1 pieces
25	22	A	134	126.66	80	30	6	2.8	M 5	1.546	1 pieces
25	24	A	134	126.66	80	30	8	3.3	M 6	1.53	1 pieces
25	25	A	134	126.66	80	30	8	3.3	M 6	1.388	1 pieces
25	28	A	134	126.66	80	30	8	3.3	M 6	1.49	1 pieces
25	30	A	134	126.66	80	30	8	3.3	M 6	1.53	1 pieces
25	32	A	134	126.66	80	30	10	3.3	M 8	1.496	1 pieces
25	35	A	134	126.66	80	30	10	3.3	M 8	1.472	1 pieces
25	38	A	134	126.66	80	30	10	3.3	M 8	1.971	1 pieces
25	40	A	134	126.66	80	30	12	3.3	M 10	1.4	1 pieces
25	42	A	134	126.66	80	30	12	3.3	M 10	1.309	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

42.55 € ( 50.63 € )	4 working days
42.55 € ( 50.63 € )	4 working days
42.55 € ( 50.63 € )	4 working days
46.05 € ( 54.80 € )	4 working days
46.05 € ( 54.80 € )	4 working days
46.05 € ( 54.80 € )	4 working days
46.05 € ( 54.80 € )	4 working days
46.05 € ( 54.80 € )	4 working days
46.05 € ( 54.80 € )	4 working days
46.05 € ( 54.80 € )	4 working days
46.05 € ( 54.80 € )	4 working days
46.05 € ( 54.80 € )	4 working days
46.05 € ( 54.80 € )	4 working days
46.05 € ( 54.80 € )	4 working days
46.05 € ( 54.80 € )	4 working days
47.79 € ( 56.87 € )	4 working days
47.79 € ( 56.87 € )	4 working days
47.79 € ( 56.87 € )	4 working days
47.79 € ( 56.87 € )	4 working days
47.79 € ( 56.87 € )	4 working days
47.79 € ( 56.87 € )	4 working days
47.79 € ( 56.87 € )	4 working days
47.79 € ( 56.87 € )	4 working days
47.79 € ( 56.87 € )	4 working days
47.79 € ( 56.87 € )	4 working days
47.79 € ( 56.87 € )	4 working days
47.79 € ( 56.87 € )	4 working days
50.17 € ( 59.70 € )	4 working days
50.17 € ( 59.70 € )	4 working days
50.17 € ( 59.70 € )	4 working days
50.17 € ( 59.70 € )	4 working days
50.17 € ( 59.70 € )	4 working days
50.17 € ( 59.70 € )	4 working days
50.17 € ( 59.70 € )	4 working days
50.17 € ( 59.70 € )	4 working days
50.17 € ( 59.70 € )	4 working days
50.17 € ( 59.70 € )	4 working days
50.17 € ( 59.70 € )	4 working days
50.17 € ( 59.70 € )	4 working days
52.45 € ( 62.42 € )	4 working days
52.45 € ( 62.42 € )	4 working days
52.45 € ( 62.42 € )	4 working days
52.45 € ( 62.42 € )	4 working days
52.45 € ( 62.42 € )	4 working days
52.45 € ( 62.42 € )	4 working days
52.45 € ( 62.42 € )	4 working days
52.45 € ( 62.42 € )	4 working days
52.45 € ( 62.42 € )	4 working days
52.45 € ( 62.42 € )	4 working days
52.45 € ( 62.42 € )	4 working days
52.45 € ( 62.42 € )	4 working days

More Information

Basic information

Basic information

Material: Steel C45.
Ready-to-install, for various shaft diameters.
Teeth milled and induction hardened (approx. HRC 50), custom bore H7 - surface parameter R_a 1.6, keyway in accordance with DIN 6885/1 positioned beneath tip of tooth, 2 threads for set screws, one positioned for the keyway, one offset by 90°.
