MAEDLER

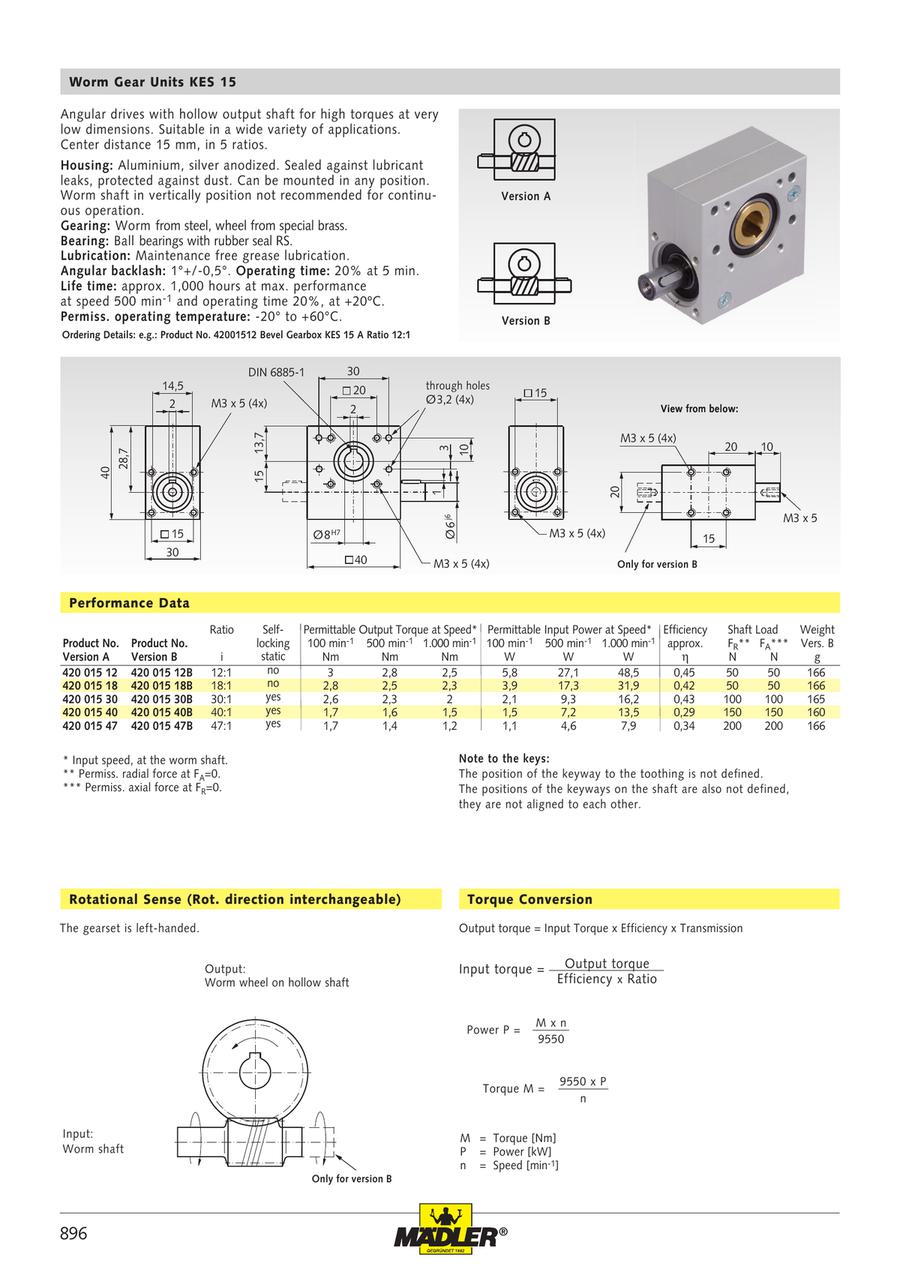

Worm Gear Units KES 15

Worm Gear Units KES 15

Part number:

Still undefined. 10 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    42001512
    42001512B
    42001518
    42001518B
    42001530
    42001530B
    42001540
    42001540B
    42001547
    42001547B

    Ratio

    Self-locking (static)

    Output torque at n1=100min-1

    (Nm)

    Drive power at n1=100min-1

    (W)

    Level of efficiency

    (eta)

    Weight

    (g)

    		Minimum order quantity
    12 : 1
    No
    3
    5.8
    0.45
    162
    1 pieces
    12 : 1
    No
    3
    5.8
    0.45
    166
    1 pieces
    18 : 1
    No
    2.8
    3.9
    0.42
    164
    1 pieces
    18 : 1
    No
    2.8
    3.9
    0.42
    166
    1 pieces
    30 : 1
    Yes
    2.6
    2.1
    0.43
    163
    1 pieces
    30 : 1
    Yes
    2.6
    2.1
    0.43
    165
    1 pieces
    40 : 1
    Yes
    1.7
    1.5
    0.29
    158
    1 pieces
    40 : 1
    Yes
    1.7
    1.5
    0.29
    160
    1 pieces
    47 : 1
    Yes
    1.7
    1.1
    0.34
    166
    1 pieces
    47 : 1
    Yes
    1.7
    1.1
    0.34
    166
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    196.91 €
    ( 234.32 € )
    4 working days
    207.62 €
    ( 247.07 € )
    4 working days
    196.91 €
    ( 234.32 € )
    4 working days
    207.62 €
    ( 247.07 € )
    4 working days
    196.91 €
    ( 234.32 € )
    4 working days
    207.62 €
    ( 247.07 € )
    4 working days
    196.91 €
    ( 234.32 € )
    4 working days
    207.62 €
    ( 247.07 € )
    4 working days
    196.91 €
    ( 234.32 € )
    4 working days
    207.62 €
    ( 247.07 € )
    4 working days
  • 1

    • More Information

    Basic information

    Angular drives with hollow output shaft for high torques at very low dimensions. Suitable in a wide variety of applications.
    Center distance 15 mm, in 5 ratios.
    Housing: Aluminium, silver anodized. Sealed against lubricant leaks, protected against dust. Can be mounted in any position. Worm shaft in vertically position not recommended for continuous operation.
    Gearing: Worm from steel, wheel from special brass.
    Bearing: Ball bearings with rubber seal RS.
    Lubrication: Maintenance free grease lubrication.
    Angular backlash: 1°+/-0,5°. Operating time: 20% at 5 min.
    Life time: approx. 1,000 hours at max. performance at speed 500 min-1 and operating time 20%, at +20ºC.
    Permissable operating temperature: -20° to +60°C.
