Configure
- Allowable Tilt Angle α(deg)
- 13
- 14
- 15
- 16
- 17
- 19
- Inner diameter dH7(mm)
- 5
- 6
- 8
- 10
- 12
- 14
- 16
- 18
- 20
- 22
- 25
- 30
- 35
- 40
- Total width B+0/-0.12(mm)
- 8
- 9
- 12
- 14
- 16
- 19
- 21
- 23
- 25
- 28
- 31
- 37
- 43
- 49
- Bearing shell width C+0/-0.24(mm)
- 6
- 6.75
- 9
- 10.5
- 12
- 13.5
- 15
- 16.5
- 18
- 20
- 22
- 25
- 28
- 35
- Outer diameter DA+0/-0.012(mm)
- 16
- 18
- 22
- 26
- 30
- 34
- 38
- 42
- 46
- 50
- 56
- 66
- 78
- 87
- d1(mm)
- 7.7
- 8.9
- 10.4
- 12.9
- 15.4
- 16.8
- 19.3
- 21.8
- 24.3
- 25.8
- 29.6
- 34.8
- 37.7
- 44.2
- Est. shipping days
- All
- Within 4 working days

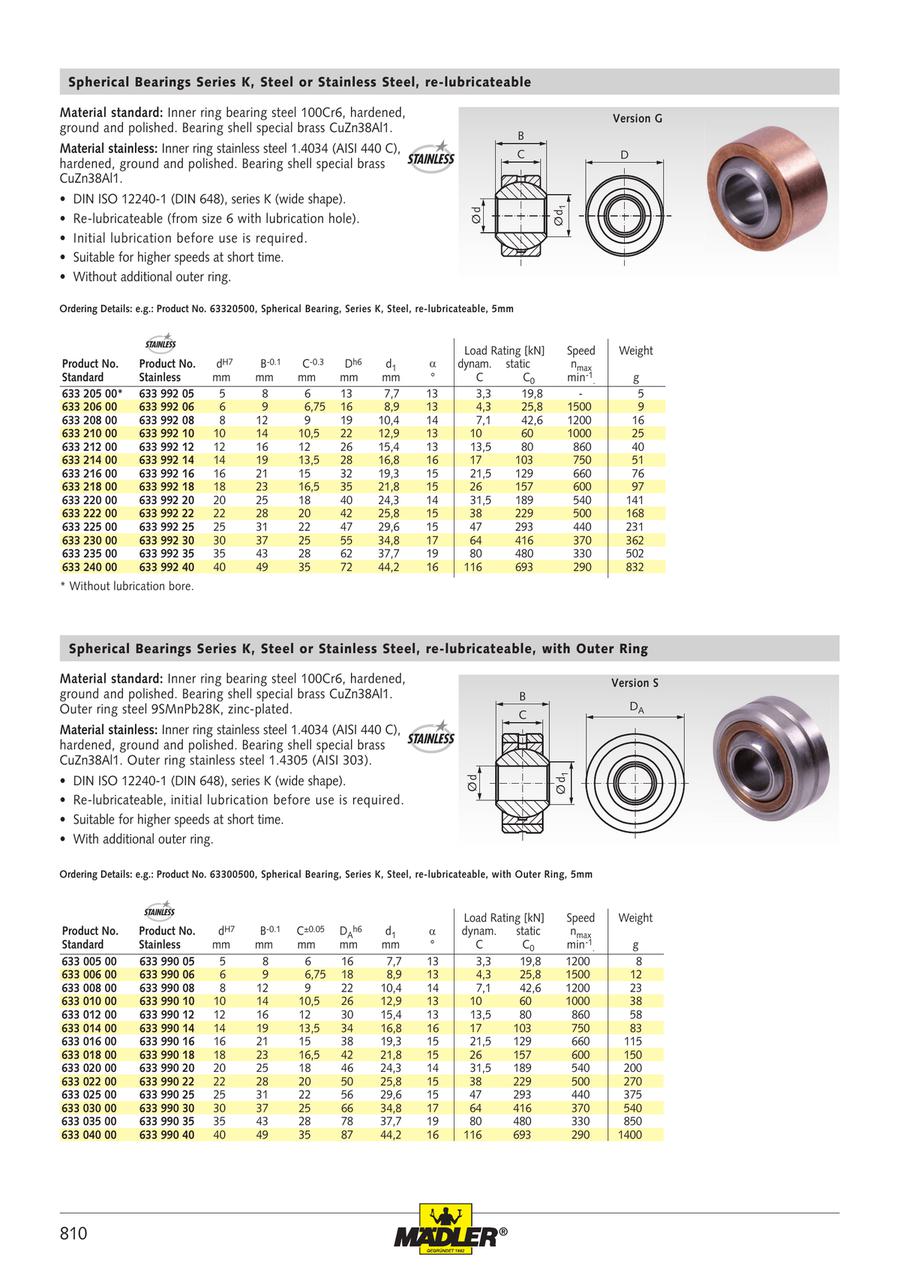

Spherical Bearings Series K, Steel, Re-lubricateable, with Outer Ring
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
14.73 € ( 17.53 € ) | 4 working days |
14.82 € ( 17.64 € ) | 4 working days |
15.50 € ( 18.45 € ) | 4 working days |
17.64 € ( 20.99 € ) | 4 working days |
19.82 € ( 23.59 € ) | 4 working days |
22.79 € ( 27.12 € ) | 4 working days |
27.45 € ( 32.67 € ) | 4 working days |
31.58 € ( 37.58 € ) | 4 working days |
35.72 € ( 42.51 € ) | 4 working days |
49.75 € ( 59.20 € ) | 4 working days |
53.28 € ( 63.40 € ) | 4 working days |
67.18 € ( 79.94 € ) | 4 working days |
101.93 € ( 121.30 € ) | 4 working days |
239.58 € ( 285.10 € ) | 4 working days |
More Information
Basic information
Material: Inner ring bearing steel 100Cr6, hardened, ground and polished. Bearing shell special brass CuZn38Al1. Outer ring steel 9SMnPb28K, zinc-plated.
• DIN ISO 12240-1 (DIN 648), series K (wide shape).
• Re-lubricateable, initial lubrication before use is required.
• Suitable for higher speeds at short time.
• With additional outer ring.
