MAEDLER

SL Retainers, Steel, Zinc-plated

SL Retainers, Steel, Zinc-plated

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    63790101
    63790301
    63790501
    63790701
    63790901
    63791101
    63791301
    63791501

    Nominal size

    b

    (mm)

    h1

    (mm)

    h2

    (mm)

    a

    (mm)

    s

    (mm)

    Admissible axial force Fax

    (kN)

    Shaft diameter d1h11

    (mm)

    d2h11

    (mm)

    m+0.1

    (mm)

    n

    (mm)

    z

    (mm)

    Weight per 100 pcs

    (g)

    		Minimum order quantity
    4
    7
    8.5
    4
    2.3
    0.3
    1
    4
    3.2
    0.64
    2
    0.5
    19
    1 pieces
    5
    9
    10.7
    5
    3.3
    0.4
    1.3
    5
    4
    0.74
    2.5
    0.5
    34
    1 pieces
    6
    11
    14.1
    6
    3.8
    0.4
    1.5
    6
    5
    0.74
    3
    0.75
    63
    1 pieces
    8
    14
    17.5
    8
    4
    0.5
    3.6
    8
    6
    0.94
    3.5
    1
    109
    1 pieces
    10
    18
    22.1
    10
    5
    0.5
    6.4
    10
    8
    1.05
    4.5
    1
    211
    1 pieces
    12
    22
    26
    12
    5
    0.5
    9.6
    12
    9
    1.15
    5
    1.25
    280
    1 pieces
    14
    25
    30
    13.5
    6
    0.6
    11.3
    14
    10
    1.25
    5.5
    1.5
    474
    1 pieces
    16
    28
    34
    16
    6
    0.6
    13.5
    16
    12
    1.35
    6
    1.5
    563
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    0.36 €
    ( 0.43 € )
    4 working days
    0.36 €
    ( 0.43 € )
    4 working days
    0.36 €
    ( 0.43 € )
    4 working days
    0.49 €
    ( 0.58 € )
    4 working days
    0.72 €
    ( 0.86 € )
    4 working days
    0.84 €
    ( 1.00 € )
    4 working days
    1.09 €
    ( 1.30 € )
    4 working days
    1.15 €
    ( 1.37 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material: Spring steel, zinc-plated.

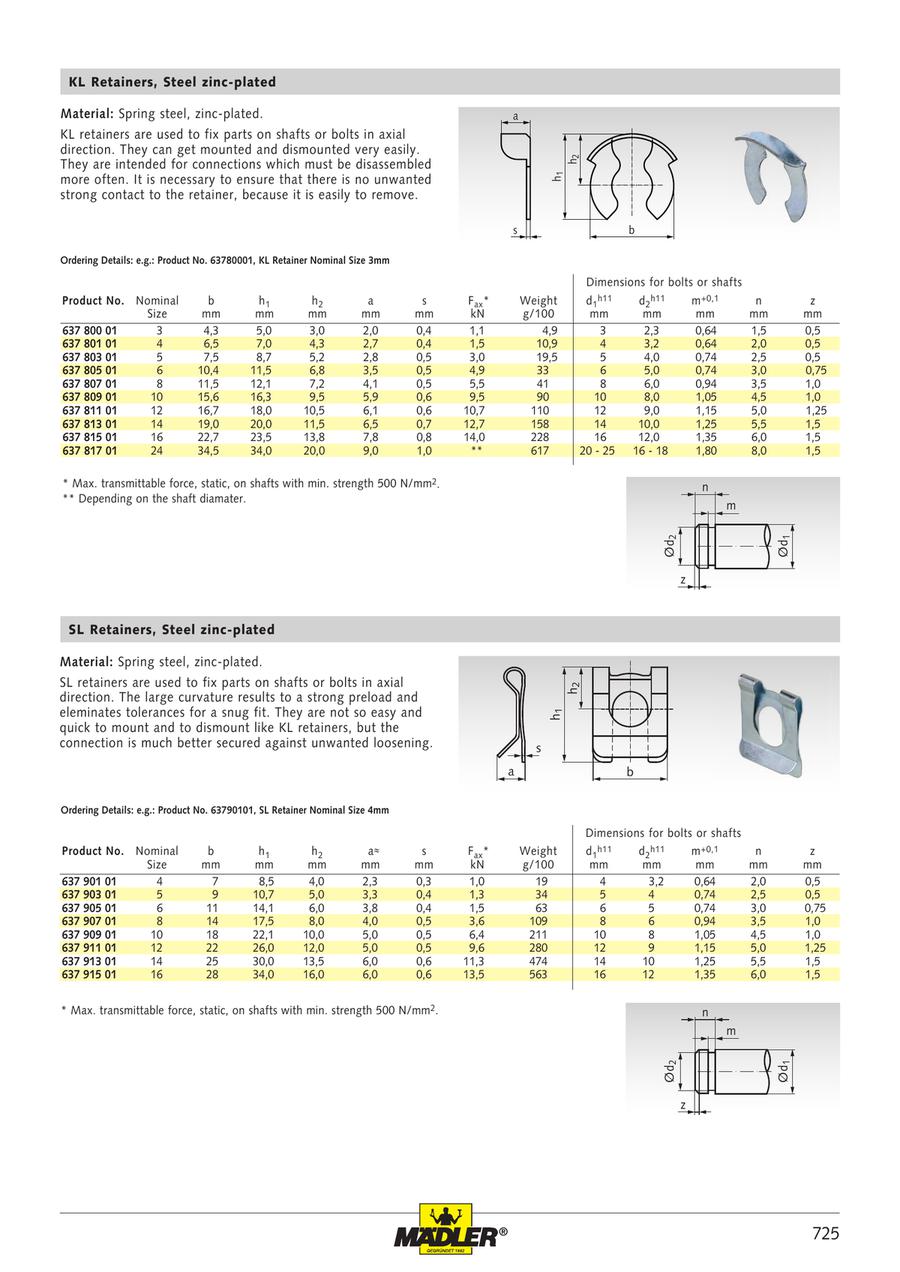

    SL retainers are used to fix parts on shafts or bolts in axial direction. The large curvature results to a strong preload and eleminates tolerances for a snug fit. They are not so easy and quick to mount and to dismount like KL retainers, but the connection is much better secured against unwanted loosening.
