MAEDLER

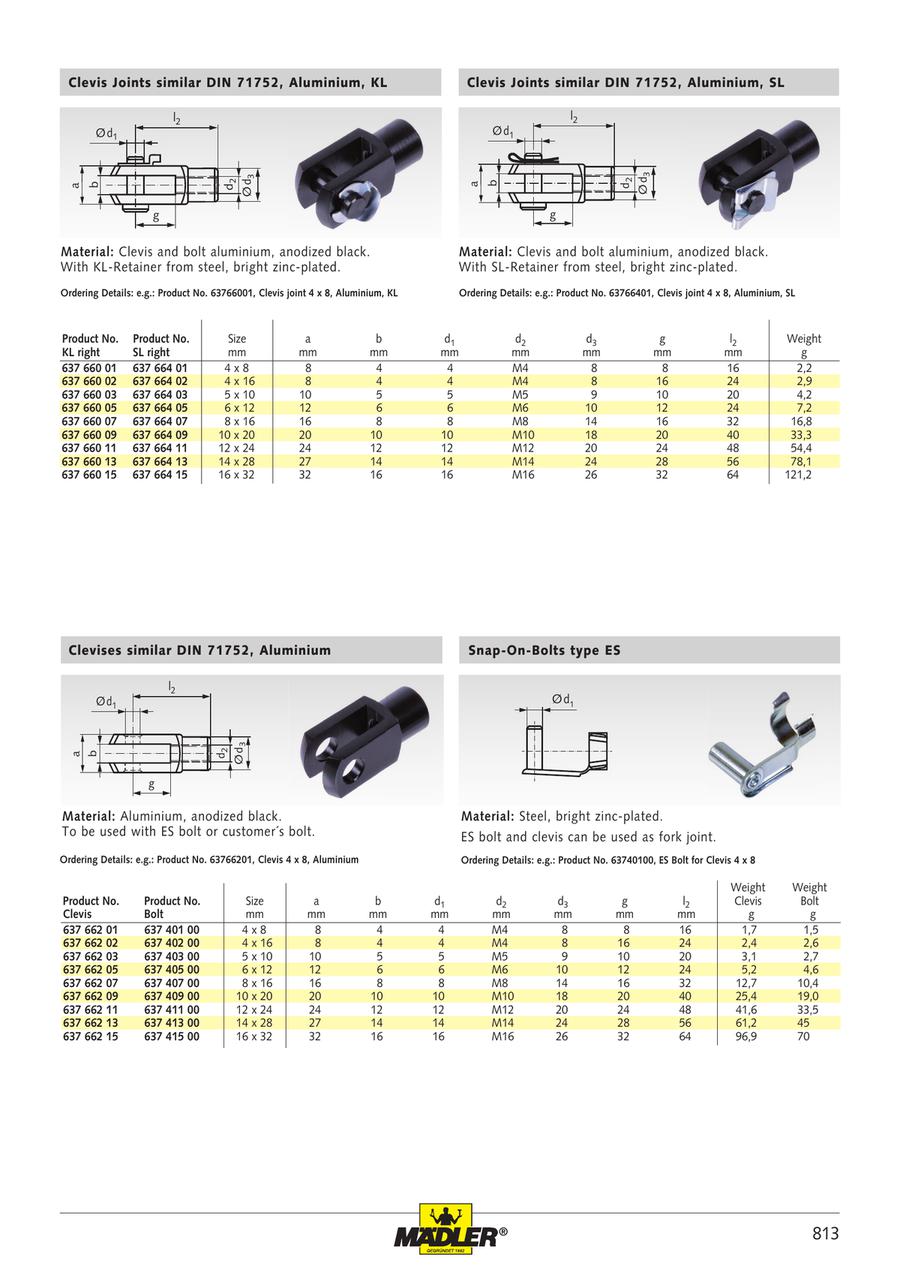

Clevis Joints Similar DIN 71752, Aluminium, KL

Clevis Joints Similar DIN 71752, Aluminium, KL

Part number:

Still undefined. 9 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    63766001
    63766002
    63766003
    63766005
    63766007
    63766009
    63766011
    63766013
    63766015

    Size

    Outer width a

    (mm)

    Inner width b

    (mm)

    Bolt diameter d1

    (mm)

    Thread size d2

    (mm)

    Thread pitch

    (mm)

    d3

    (mm)

    g

    (mm)

    Center distance to mounting surface l2

    (mm)

    Weight

    (g)

    		Minimum order quantity
    4x8
    8
    4
    4
    M 4
    0.7
    8
    8
    16
    2.2
    1 pieces
    4x16
    8
    4
    4
    M 4
    0.7
    8
    16
    24
    2.9
    1 pieces
    5x10
    10
    5
    5
    M 5
    0.8
    9
    10
    20
    4.2
    1 pieces
    6x12
    12
    6
    6
    M 6
    1
    10
    12
    24
    7.2
    1 pieces
    8x16
    16
    8
    8
    M 8
    1.25
    14
    16
    32
    16.8
    1 pieces
    10x20
    20
    10
    10
    M 10
    1.5
    18
    20
    40
    33.3
    1 pieces
    12x24
    24
    12
    12
    M 12
    1.75
    20
    24
    48
    54.4
    1 pieces
    14x28
    27
    14
    14
    M 14
    2
    24
    28
    56
    78.1
    1 pieces
    16x32
    32
    16
    16
    M 16
    2
    26
    32
    64
    121.2
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    1.82 €
    ( 2.17 € )
    4 working days
    2.13 €
    ( 2.53 € )
    4 working days
    2.17 €
    ( 2.58 € )
    4 working days
    2.40 €
    ( 2.86 € )
    4 working days
    3.25 €
    ( 3.87 € )
    4 working days
    4.06 €
    ( 4.83 € )
    4 working days
    6.17 €
    ( 7.34 € )
    4 working days
    7.83 €
    ( 9.32 € )
    4 working days
    10.72 €
    ( 12.76 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material: Clevis and bolt aluminium, anodized black.
    With KL-Retainer from steel, bright zinc-plated.
