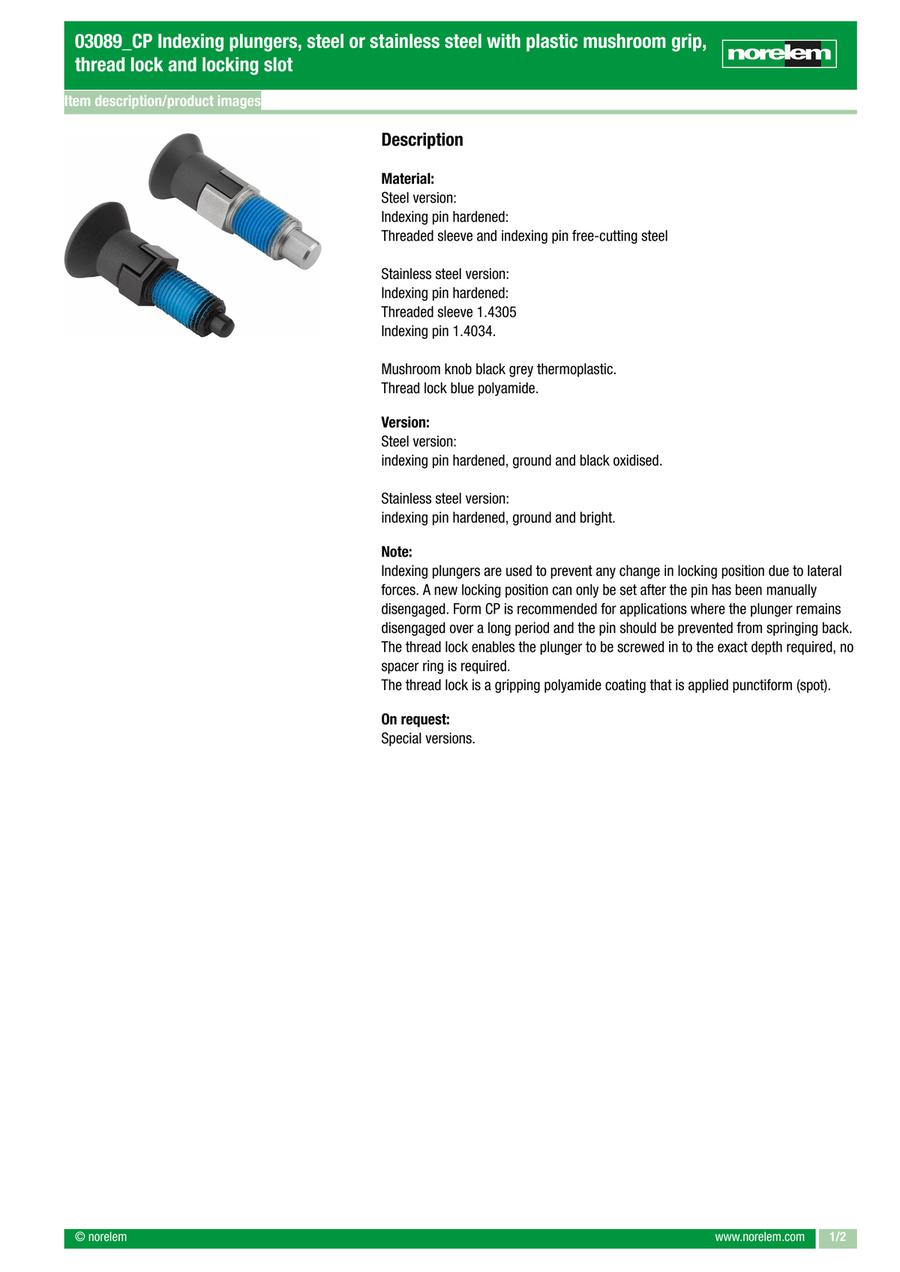

Indexing plunger with thread lock, form CP with locking slot without locknut (03089)
· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
· High stability
· The thread lock enables the depth to be adjusted without additional stops
· Material: steel or stainless steel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 03089-093004 |
| 03089-093105 |
| 03089-093206 |
| 03089-093308 |
| 03089-093410 |
| 03089-093412 |
| 03089-093516 |
| 03089-093903 |
| 03089-93004 |
| 03089-93105 |
| 03089-93206 |
| 03089-93308 |
| 03089-93410 |
| 03089-93412 |
| 03089-93516 |
| 03089-93903 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main material | Steel code | Size | D1=Thread | Spring force final pressure F2 approx. (N) | Spring force initial pressure F1 approx. (N) | Fx30° | L=Length | D=pin diameter | L2 | SW1 | D2 | Travel S | L1 | L3 | PL Edelstahl | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
18.52 € | 1 | 4 Days | Stainless steel | 1.4034 | 0 | M8x1 | 12 | 6 | 1 | 38.5 | 4 | 6 | 10 | 18 | 4 | 15 | 13 | yes | 0.0095 | ||
17.61 € | 1 | 4 Days | Stainless steel | 1.4034 | 1 | M10x1 | 12 | 5 | 1.3 | 43.5 | 5 | 7 | 13 | 21 | 5 | 17 | 15 | yes | 0.0179 | ||
20.74 € | 1 | 4 Days | Stainless steel | 1.4034 | 2 | M12x1.5 | 14 | 6 | 1.8 | 51.7 | 6 | 8 | 14 | 25 | 6 | 20 | 17 | yes | 0.0271 | ||
28.28 € | 1 | 4 Days | Stainless steel | 1.4034 | 3 | M16x1.5 | 35 | 15 | 2.3 | 68 | 8 | 10 | 19 | 33 | 8 | 26 | 23 | yes | 0.0664 | ||
52.43 € | 1 | 4 Days | Stainless steel | 1.4034 | 4 | M20x1.5 | 34 | 15 | 2.8 | 74 | 10 | 12 | 22 | 33 | 10 | 28 | 25 | yes | 0.1088 | ||
57.63 € | 1 | 4 Days | Stainless steel | 1.4034 | 4 | M20x1.5 | 39 | 15 | 2.8 | 78 | 12 | 14 | 22 | 33 | 12 | 28 | 25 | yes | 0.1118 | ||
65.54 € | 1 | 4 Days | Stainless steel | 1.4034 | 5 | M24x2 | 46 | 20 | 3.2 | 96 | 16 | 18 | 27 | 40 | 16 | 32 | 28 | yes | 0.2071 | ||
19.40 € | 1 | 4 Days | Stainless steel | 1.4034 | 9 | M6x0.75 | 10 | 4.5 | 0.8 | 31.5 | 3 | 5 | 8 | 14 | 3.5 | 12 | 10 | yes | 0.0045 | ||
11.74 € | 1 | 4 Days | Steel | - | 0 | M8x1 | 12 | 6 | 1 | 38.5 | 4 | 6 | 10 | 18 | 4 | 15 | 13 | no | 0.0094 | ||
11.19 € | 1 | 4 Days | Steel | - | 1 | M10x1 | 12 | 5 | 1.3 | 43.5 | 5 | 7 | 13 | 21 | 5 | 17 | 15 | no | 0.0178 | ||
12.57 € | 1 | 4 Days | Steel | - | 2 | M12x1.5 | 14 | 6 | 1.8 | 51.7 | 6 | 8 | 14 | 25 | 6 | 20 | 17 | no | 0.0271 | ||
15.51 € | 1 | 4 Days | Steel | - | 3 | M16x1.5 | 35 | 15 | 2.3 | 68 | 8 | 10 | 19 | 33 | 8 | 26 | 23 | no | 0.0660 | ||
24.62 € | 1 | 4 Days | Steel | - | 4 | M20x1.5 | 34 | 15 | 2.8 | 74 | 10 | 12 | 22 | 33 | 10 | 28 | 25 | no | 0.1119 | ||
27.06 € | 1 | 4 Days | Steel | - | 4 | M20x1.5 | 39 | 15 | 2.8 | 78 | 12 | 14 | 22 | 33 | 12 | 28 | 25 | no | 0.1117 | ||
30.77 € | 1 | 4 Days | Steel | - | 5 | M24x2 | 46 | 20 | 3.2 | 96 | 16 | 18 | 27 | 40 | 16 | 32 | 28 | no | 0.2083 | ||
12.32 € | 1 | 4 Days | Steel | - | 9 | M6x0.75 | 10 | 4.5 | 0.8 | 31.5 | 3 | 5 | 8 | 14 | 3.5 | 12 | 10 | no | 0.0045 |
Loading...
Basic information
| Surface finish body | hardened | Component material | Thermoplastic | Component colour | black grey RAL 7021 |
|---|---|---|---|---|---|
| Form | CP | Locknut | without locknut | Version 1 | with locking slot |
| Item | Indexing Plunger | Product type | with thread lock | Form definition | with locking slot, without locknut |
| RoHS | yes |
