NORELEM

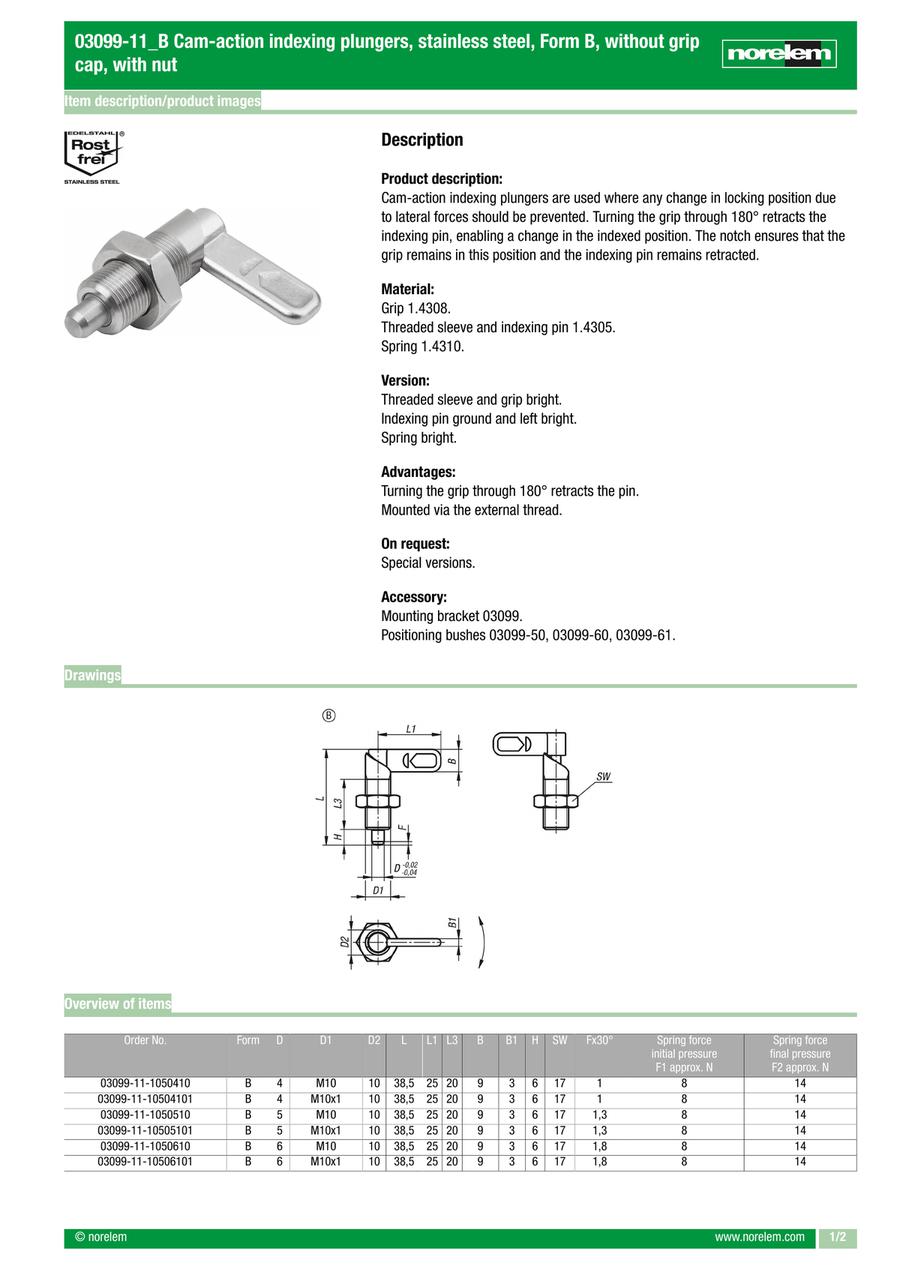

Cam-action indexing plungers, stainless steel, Form B, without grip cap, with nut (03099-11)

Cam-action indexing plungers, stainless steel, Form B, without grip cap, with nut (03099-11)

Part number:

Still undefined. 24 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03099-11-1050410
    03099-11-10504101
    03099-11-1050510
    03099-11-10505101
    03099-11-1050512
    03099-11-10505121
    03099-11-1050610
    03099-11-10506101
    03099-11-1050612
    03099-11-1050616
    03099-11-10506121
    03099-11-10506161
    03099-11-1050812
    03099-11-1050816
    03099-11-10508121
    03099-11-10508161
    03099-11-1050820
    03099-11-10508201
    03099-11-1051016
    03099-11-10510161
    03099-11-1051020
    03099-11-10510201
    03099-11-1051220
    03099-11-10512201

    B

    (mm)

    B1

    (mm)

    D=locking pin diameter

    (mm)

    D1

    D2

    (mm)

    Fx30°

    (mm)

    H

    (mm)

    L

    (mm)

    L1=Handle length

    (mm)

    L3

    (mm)

    SW

    (mm)

    Spring force final pressure F2 approx.

    (N)

    Spring force initial pressure F1 approx.

    (N)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    9
    3
    4
    M10
    10
    1
    6
    38.5
    25
    20
    17
    14
    8
    0.0230
    1 pieces
    9
    3
    4
    M10x1
    10
    1
    6
    38.5
    25
    20
    17
    14
    8
    0.0230
    1 pieces
    9
    3
    5
    M10
    10
    1.3
    6
    38.5
    25
    20
    17
    14
    8
    0.0240
    1 pieces
    9
    3
    5
    M10x1
    10
    1.3
    6
    38.5
    25
    20
    17
    14
    8
    0.0240
    1 pieces
    10.8
    3.6
    5
    M12
    12
    1.3
    8
    47.4
    30
    25
    19
    15
    8
    0.0240
    1 pieces
    10.8
    3.6
    5
    M12x1.5
    12
    1.3
    8
    47.4
    30
    25
    19
    15
    8
    0.0240
    1 pieces
    9
    3
    6
    M10
    10
    1.8
    6
    38.5
    25
    20
    17
    14
    8
    0.0380
    1 pieces
    9
    3
    6
    M10x1
    10
    1.8
    6
    38.5
    25
    20
    17
    14
    8
    0.0380
    1 pieces
    10.8
    3.6
    6
    M12
    12
    1.8
    8
    47.4
    30
    25
    19
    15
    8
    0.0380
    1 pieces
    14.4
    4.8
    6
    M16
    16
    1.8
    10
    61.2
    40
    32
    24
    35
    15
    0.0860
    1 pieces
    10.8
    3.6
    6
    M12x1.5
    12
    1.8
    8
    47.4
    30
    25
    19
    15
    8
    0.0380
    1 pieces
    14.4
    4.8
    6
    M16x1.5
    16
    1.8
    10
    61.2
    40
    32
    24
    35
    15
    0.0860
    1 pieces
    10.8
    3.6
    8
    M12
    12
    2.3
    8
    47.4
    30
    25
    19
    15
    8
    0.0390
    1 pieces
    14.4
    4.8
    8
    M16
    16
    2.3
    10
    61.2
    40
    32
    24
    35
    15
    0.0920
    1 pieces
    10.8
    3.6
    8
    M12x1.5
    12
    2.3
    8
    47.4
    30
    25
    19
    15
    8
    0.0390
    1 pieces
    14.4
    4.8
    8
    M16x1.5
    16
    2.3
    10
    61.2
    40
    32
    24
    35
    15
    0.0920
    1 pieces
    18
    6
    8
    M20
    20
    2.3
    12
    71
    50
    35
    30
    60
    20
    0.1650
    1 pieces
    18
    6
    8
    M20x1.5
    20
    2.3
    12
    71
    50
    35
    30
    60
    20
    0.1650
    1 pieces
    14.4
    4.8
    10
    M16
    16
    2.8
    10
    61.2
    40
    32
    24
    35
    15
    0.0910
    1 pieces
    14.4
    4.8
    10
    M16x1.5
    16
    2.8
    10
    61.2
    40
    32
    24
    35
    15
    0.0910
    1 pieces
    18
    6
    10
    M20
    20
    2.8
    12
    71
    50
    35
    30
    60
    20
    0.1670
    1 pieces
    18
    6
    10
    M20x1.5
    20
    2.8
    12
    71
    50
    35
    30
    60
    20
    0.1670
    1 pieces
    18
    6
    12
    M20
    20
    3
    12
    71
    50
    35
    30
    60
    20
    0.1730
    1 pieces
    18
    6
    12
    M20x1.5
    20
    3
    12
    71
    50
    35
    30
    60
    20
    0.1730
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    18.60 €
    ( 22.13 € )
    4 working days
    18.60 €
    ( 22.13 € )
    4 working days
    18.60 €
    ( 22.13 € )
    4 working days
    18.60 €
    ( 22.13 € )
    4 working days
    20.51 €
    ( 24.41 € )
    4 working days
    20.51 €
    ( 24.41 € )
    4 working days
    18.60 €
    ( 22.13 € )
    4 working days
    18.60 €
    ( 22.13 € )
    4 working days
    20.51 €
    ( 24.41 € )
    4 working days
    23.03 €
    ( 27.41 € )
    4 working days
    20.51 €
    ( 24.41 € )
    4 working days
    23.03 €
    ( 27.41 € )
    4 working days
    20.51 €
    ( 24.41 € )
    4 working days
    23.03 €
    ( 27.41 € )
    4 working days
    20.51 €
    ( 24.41 € )
    4 working days
    23.03 €
    ( 27.41 € )
    4 working days
    28.62 €
    ( 34.06 € )
    4 working days
    28.62 €
    ( 34.06 € )
    4 working days
    23.03 €
    ( 27.41 € )
    4 working days
    23.03 €
    ( 27.41 € )
    4 working days
    28.62 €
    ( 34.06 € )
    4 working days
    28.62 €
    ( 34.06 € )
    4 working days
    28.62 €
    ( 34.06 € )
    4 working days
    28.62 €
    ( 34.06 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Turning the grip through 180° retracts the indexing pin.

    · Mounted via the external thread.

    · Mounted via the external thread.
