NORELEM

Indexing plungers, Form D, inch (03090)

Indexing plungers, Form D, inch (03090)

Part number:

Still undefined. 15 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03090-04005A4
    03090-04105AL
    03090-04206A5
    03090-04308A6
    03090-04410A7
    03090-14005A4
    03090-14105AL
    03090-14206A5
    03090-14308A6
    03090-14410A7
    03090-4005A4
    03090-4105AL
    03090-4206A5
    03090-4308A6
    03090-4410A7

    Body Material

    Travel S

    (mm)

    Length L

    (mm)

    Steel code

    Grade

    Surface finish body

    Size

    D=pin diameter

    (mm)

    D1=Thread

    D2

    (mm)

    Fx30°

    (mm)

    L1

    (mm)

    L2

    (mm)

    L3

    (mm)

    SW1

    (mm)

    SW2

    (mm)

    Spring force final pressure F2 approx.

    (N)

    Spring force initial pressure F1 approx.

    (N)

    PL Edelstahl

    Weight (ERP)

    (kg)

    		Minimum order quantity
    Stainless Steel
    5
    47
    1.4034
    -
    Hardened
    0
    5
    3/8-16
    21
    1.3
    17
    7
    15
    13
    9/16
    12
    5
    Yes
    0.0010
    1 pieces
    Stainless Steel
    5
    47
    1.4034
    -
    Hardened
    1
    5
    3/8-24
    21
    1.3
    17
    7
    15
    13
    9/16
    12
    5
    Yes
    0.0010
    1 pieces
    Stainless Steel
    6
    56
    1.4034
    -
    Hardened
    2
    6
    1/2-13
    25
    1.8
    20
    8
    17
    14
    3/4
    14
    6
    Yes
    0.0010
    1 pieces
    Stainless Steel
    8
    74
    1.4034
    -
    Hardened
    3
    8
    5/8-11
    33
    2.3
    26
    10
    23
    19
    15/16
    35
    15
    Yes
    0.0010
    1 pieces
    Stainless Steel
    10
    80
    1.4034
    -
    Hardened
    4
    10
    3/4-10
    33
    2.8
    28
    12
    25
    22
    1-1/8
    34
    15
    Yes
    0.1354
    1 pieces
    Stainless Steel
    5
    47
    1.4305
    -
    Not hardened
    0
    5
    3/8-16
    21
    1.3
    17
    7
    15
    13
    9/16
    12
    5
    Yes
    0.0010
    1 pieces
    Stainless Steel
    5
    47
    1.4305
    -
    Not hardened
    1
    5
    3/8-24
    21
    1.3
    17
    7
    15
    13
    9/16
    12
    5
    Yes
    0.0010
    1 pieces
    Stainless Steel
    6
    56
    1.4305
    -
    Not hardened
    2
    6
    1/2-13
    25
    1.8
    20
    8
    17
    14
    3/4
    14
    6
    Yes
    0.0010
    1 pieces
    Stainless Steel
    8
    74
    1.4305
    -
    Not hardened
    3
    8
    5/8-11
    33
    2.3
    26
    10
    23
    19
    15/16
    35
    15
    Yes
    0.0010
    1 pieces
    Stainless Steel
    10
    80
    1.4305
    -
    Not hardened
    4
    10
    3/4-10
    33
    2.8
    28
    12
    25
    22
    1-1/8
    34
    15
    Yes
    0.1368
    1 pieces
    Steel
    5
    47
    -
    5.8
    Hardened
    0
    5
    3/8-16
    21
    1.3
    17
    7
    15
    13
    9/16
    12
    5
    No
    0.0010
    1 pieces
    Steel
    5
    47
    -
    5.8
    Hardened
    1
    5
    3/8-24
    21
    1.3
    17
    7
    15
    13
    9/16
    12
    5
    No
    0.0216
    1 pieces
    Steel
    6
    56
    -
    5.8
    Hardened
    2
    6
    1/2-13
    25
    1.8
    20
    8
    17
    14
    3/4
    14
    6
    No
    0.0399
    1 pieces
    Steel
    8
    74
    -
    5.8
    Hardened
    3
    8
    5/8-11
    33
    2.3
    26
    10
    23
    19
    15/16
    35
    15
    No
    0.0857
    1 pieces
    Steel
    10
    80
    -
    5.8
    Hardened
    4
    10
    3/4-10
    33
    2.8
    28
    12
    25
    22
    1-1/8
    34
    15
    No
    0.1389
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    24.22 €
    ( 28.82 € )
    4 working days
    23.07 €
    ( 27.45 € )
    4 working days
    27.17 €
    ( 32.33 € )
    4 working days
    35.23 €
    ( 41.92 € )
    4 working days
    37.76 €
    ( 44.93 € )
    4 working days
    24.22 €
    ( 28.82 € )
    4 working days
    23.07 €
    ( 27.45 € )
    4 working days
    27.17 €
    ( 32.33 € )
    4 working days
    35.23 €
    ( 41.92 € )
    4 working days
    37.76 €
    ( 44.93 € )
    4 working days
    15.36 €
    ( 18.28 € )
    4 working days
    15.11 €
    ( 17.98 € )
    4 working days
    16.97 €
    ( 20.19 € )
    4 working days
    19.47 €
    ( 23.17 € )
    4 working days
    19.72 €
    ( 23.47 € )
    4 working days
  • 1

    • More Information

    Basic information

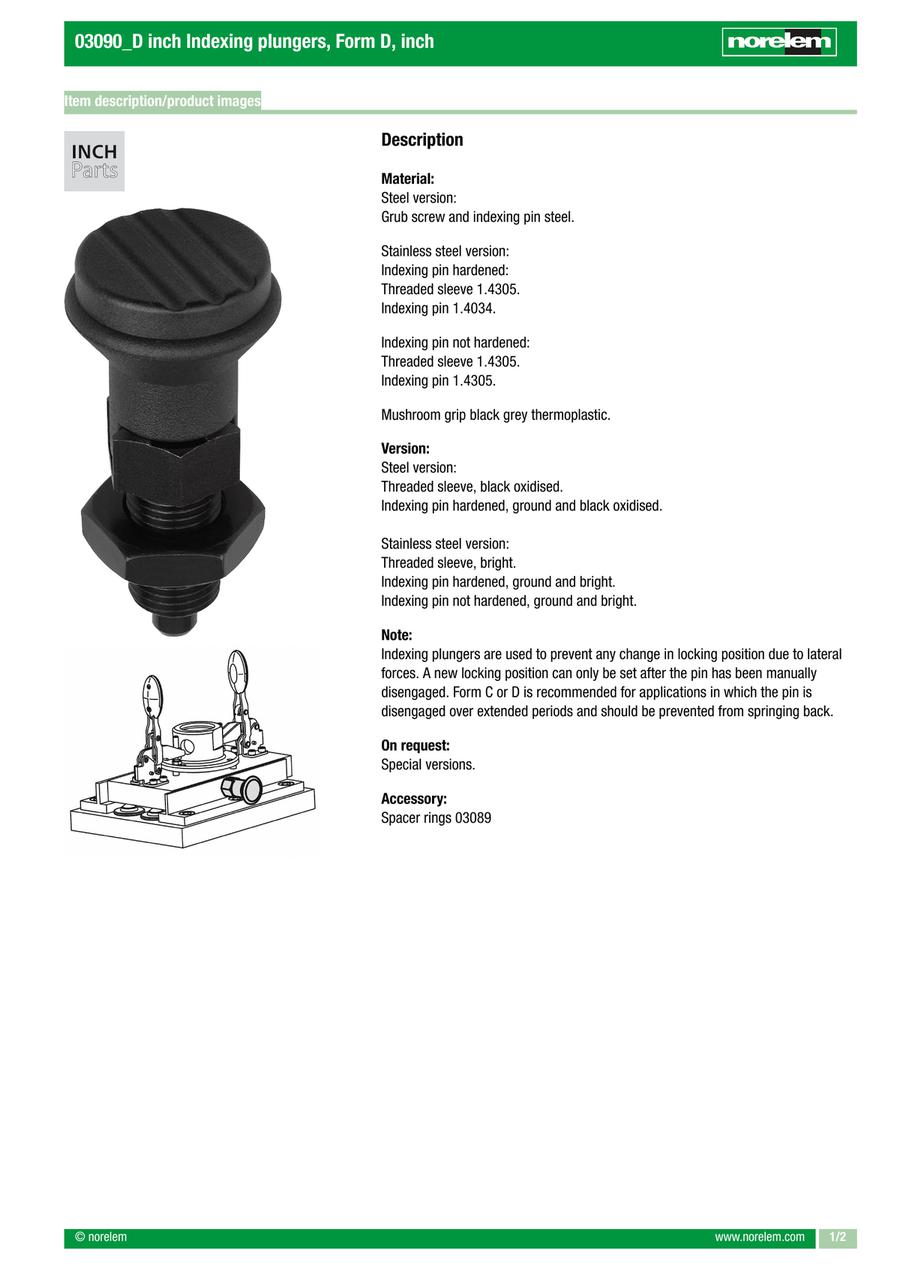

    · Indexing plungers facilitate indexing and locking

    · Application sectors: machine, instrument and fixture construction, measuring technology, domestic use

    · High stability

    · Material: steel or stainless steel
