Configure

Body Material
- Steel
- Stainless Steel
Travel S(mm)
- 3.5
- 4
- 5
- 6
- 8
- 10
- 12
- 16
Length L(mm)
- 24
- 32
- 37
- 42
- 56
- 62
- 66
- 80
Steel code
- 1.4034
- 1.4305
Grade
- 5.8
Surface finish body
- Hardened
- Not hardened
Size
- 0
- 1
- 2
- 3
- 4
- 5
- 9
D=pin diameter(mm)
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
D1=Thread
D2(mm)
- M2
- M3
- M4
- M6
- M8
- M10
Fx30°(mm)
- 0.8
- 1
- 1.3
- 1.8
- 2.3
- 2.8
- 3.2
L1(mm)
- 12
- 15
- 17
- 20
- 26
- 28
- 32
L2(mm)
- 5
- 6
- 7
- 8
- 10
- 12
- 14
- 18
L3(mm)
- 3.5
- 7
- 8
- 12
- 14
L4(mm)
- 10
- 13
- 15
- 17
- 23
- 25
- 28
SW1(mm)
- 8
- 10
- 13
- 14
- 19
- 22
- 27
SW2(mm)
- 1-1/2
- 1-1/8
- 1/2
- 3/4
- 7/16
- 9/16
- 15/16
Spring force final pressure F2 approx.(N)
- 10
- 12
- 14
- 34
- 35
- 39
- 46
Spring force initial pressure F1 approx.(N)
- 4.5
- 5
- 6
- 15
- 20
PL Edelstahl
- No
- Yes
Est. shipping days
- All
- Within 4 working days

Indexing plungers, Form F, inch (03092)

Catalog

Part number:

Still undefined. 24 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Body Material

Travel S

(mm)

Length L

(mm)

Steel code

Grade

Surface finish body

Size

D=pin diameter

(mm)

D1=Thread

(mm)

Fx30°

(mm)

SW1

(mm)

SW2

(mm)

Spring force final pressure F2 approx.

(N)

Spring force initial pressure F1 approx.

(N)

PL Edelstahl

Weight (ERP)

(kg)

Minimum order quantity

Stainless Steel	4	32	1.4034	-	Hardened	0	4	5/16-24	M3	1	15	6	7	13	10	1/2	12	6	Yes	0.0010	1 pieces
Stainless Steel	5	37	1.4034	-	Hardened	1	5	3/8-24	M4	1.3	17	7	8	15	13	9/16	12	5	Yes	0.0010	1 pieces
Stainless Steel	6	42	1.4034	-	Hardened	2	6	1/2-13	M6	1.8	20	8	8	17	14	3/4	14	6	Yes	0.0376	1 pieces
Stainless Steel	8	56	1.4034	-	Hardened	3	8	5/8-11	M8	2.3	26	10	12	23	19	15/16	35	15	Yes	0.0010	1 pieces
Stainless Steel	10	62	1.4034	-	Hardened	4	10	3/4-10	M8	2.8	28	12	12	25	22	1-1/8	34	15	Yes	0.1279	1 pieces
Stainless Steel	12	66	1.4034	-	Hardened	4	12	3/4-16	M8	2.8	28	14	12	25	22	1-1/8	39	15	Yes	0.1312	1 pieces
Stainless Steel	16	80	1.4034	-	Hardened	5	16	1-8	M10	3.2	32	18	14	28	27	1-1/2	46	20	Yes	0.0010	1 pieces
Stainless Steel	3.5	24	1.4034	-	Hardened	9	3	1/4-28	M2	0.8	12	5	3.5	10	8	7/16	10	4.5	Yes	0.0042	1 pieces
Stainless Steel	4	32	1.4305	-	Not hardened	0	4	5/16-24	M3	1	15	6	7	13	10	1/2	12	6	Yes	0.0010	1 pieces
Stainless Steel	5	37	1.4305	-	Not hardened	1	5	3/8-24	M4	1.3	17	7	8	15	13	9/16	12	5	Yes	0.0010	1 pieces
Stainless Steel	6	42	1.4305	-	Not hardened	2	6	1/2-13	M6	1.8	20	8	8	17	14	3/4	14	6	Yes	0.0010	1 pieces
Stainless Steel	8	56	1.4305	-	Not hardened	3	8	5/8-11	M8	2.3	26	10	12	23	19	15/16	35	15	Yes	0.0010	1 pieces
Stainless Steel	10	62	1.4305	-	Not hardened	4	10	3/4-10	M8	2.8	28	12	12	25	22	1-1/8	34	15	Yes	0.1284	1 pieces
Stainless Steel	12	66	1.4305	-	Not hardened	4	12	3/4-16	M8	2.8	28	14	12	25	22	1-1/8	39	15	Yes	0.0010	1 pieces
Stainless Steel	16	80	1.4305	-	Not hardened	5	16	1-8	M10	3.2	32	18	14	28	27	1-1/2	46	20	Yes	0.2416	1 pieces
Stainless Steel	3.5	24	1.4305	-	Not hardened	9	3	1/4-28	M2	0.8	12	5	3.5	10	8	7/16	10	4.5	Yes	0.0042	1 pieces
Steel	4	32	-	5.8	Hardened	0	4	5/16-24	M3	1	15	6	7	13	10	1/2	12	6	No	0.0010	1 pieces
Steel	5	37	-	5.8	Hardened	1	5	3/8-24	M4	1.3	17	7	8	15	13	9/16	12	5	No	0.0010	1 pieces
Steel	6	42	-	5.8	Hardened	2	6	1/2-13	M6	1.8	20	8	8	17	14	3/4	14	6	No	0.0332	1 pieces
Steel	8	56	-	5.8	Hardened	3	8	5/8-11	M8	2.3	26	10	12	23	19	15/16	35	15	No	0.0775	1 pieces
Steel	10	62	-	5.8	Hardened	4	10	3/4-10	M8	2.8	28	12	12	25	22	1-1/8	34	15	No	0.1280	1 pieces
Steel	12	66	-	5.8	Hardened	4	12	3/4-16	M8	2.8	28	14	12	25	22	1-1/8	39	15	No	0.1370	1 pieces
Steel	16	80	-	5.8	Hardened	5	16	1-8	M10	3.2	32	18	14	28	27	1-1/2	46	20	No	0.2558	1 pieces
Steel	3.5	24	-	5.8	Hardened	9	3	1/4-28	M2	0.8	12	5	3.5	10	8	7/16	10	4.5	No	0.0042	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

20.47 € ( 24.36 € )	4 working days
19.50 € ( 23.20 € )	4 working days
23.07 € ( 27.45 € )	4 working days
30.93 € ( 36.81 € )	4 working days
46.42 € ( 55.24 € )	4 working days
51.06 € ( 60.76 € )	4 working days
77.36 € ( 92.06 € )	4 working days
21.51 € ( 25.60 € )	4 working days
20.47 € ( 24.36 € )	4 working days
19.50 € ( 23.20 € )	4 working days
23.07 € ( 27.45 € )	4 working days
30.93 € ( 36.81 € )	4 working days
46.42 € ( 55.24 € )	4 working days
51.06 € ( 60.76 € )	4 working days
77.36 € ( 92.06 € )	4 working days
21.51 € ( 25.60 € )	4 working days
11.73 € ( 13.96 € )	4 working days
11.18 € ( 13.30 € )	4 working days
12.45 € ( 14.82 € )	4 working days
16.30 € ( 19.40 € )	4 working days
22.81 € ( 27.14 € )	4 working days
25.09 € ( 29.86 € )	4 working days
35.65 € ( 42.42 € )	4 working days
12.31 € ( 14.65 € )	4 working days

More Information

Basic information

Basic information

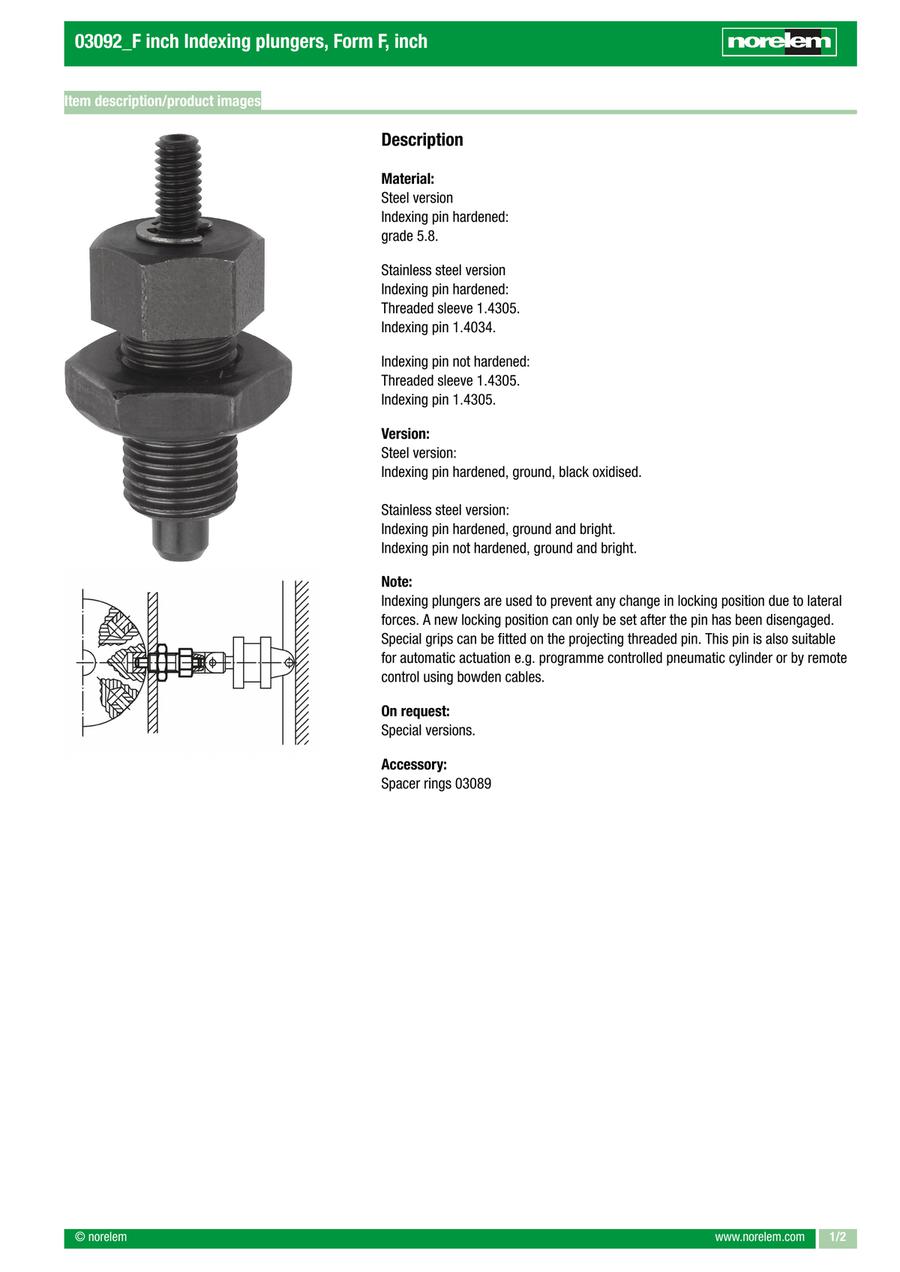

· Indexing plungers facilitate indexing and locking

· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use

· High stability

· Material: steel or stainless steel

Catalog

Products homepage

Catalog (2-page spread)
