Configure
- B(mm)
- 9
- 10.2
- 14.4
- 17
- B1(mm)
- 3
- 3.6
- 4.8
- 6
- D=locking pin diameter(mm)
- 5
- 6
- 8
- 10
- D2(mm)
- 16
- 17.4
- 21.6
- 24.8
- Fx30°(mm)
- 1.3
- 1.8
- 2.3
- 2.8
- H(mm)
- 6
- 8
- 10
- 12
- L(mm)
- 45.8
- 55.4
- 71
- 80.5
- L1=Handle length(mm)
- 25
- 30
- 40
- 50
- L3(mm)
- 15
- 19
- 26
- 30
- SW1(mm)
- 13
- 14
- 19
- 22
- Spring force final pressure F2 approx.(N)
- 14
- 15
- 35
- 60
- Spring force initial pressure F1 approx.(N)
- 8
- 15
- 20
- Est. shipping days
- All
- Within 4 working days

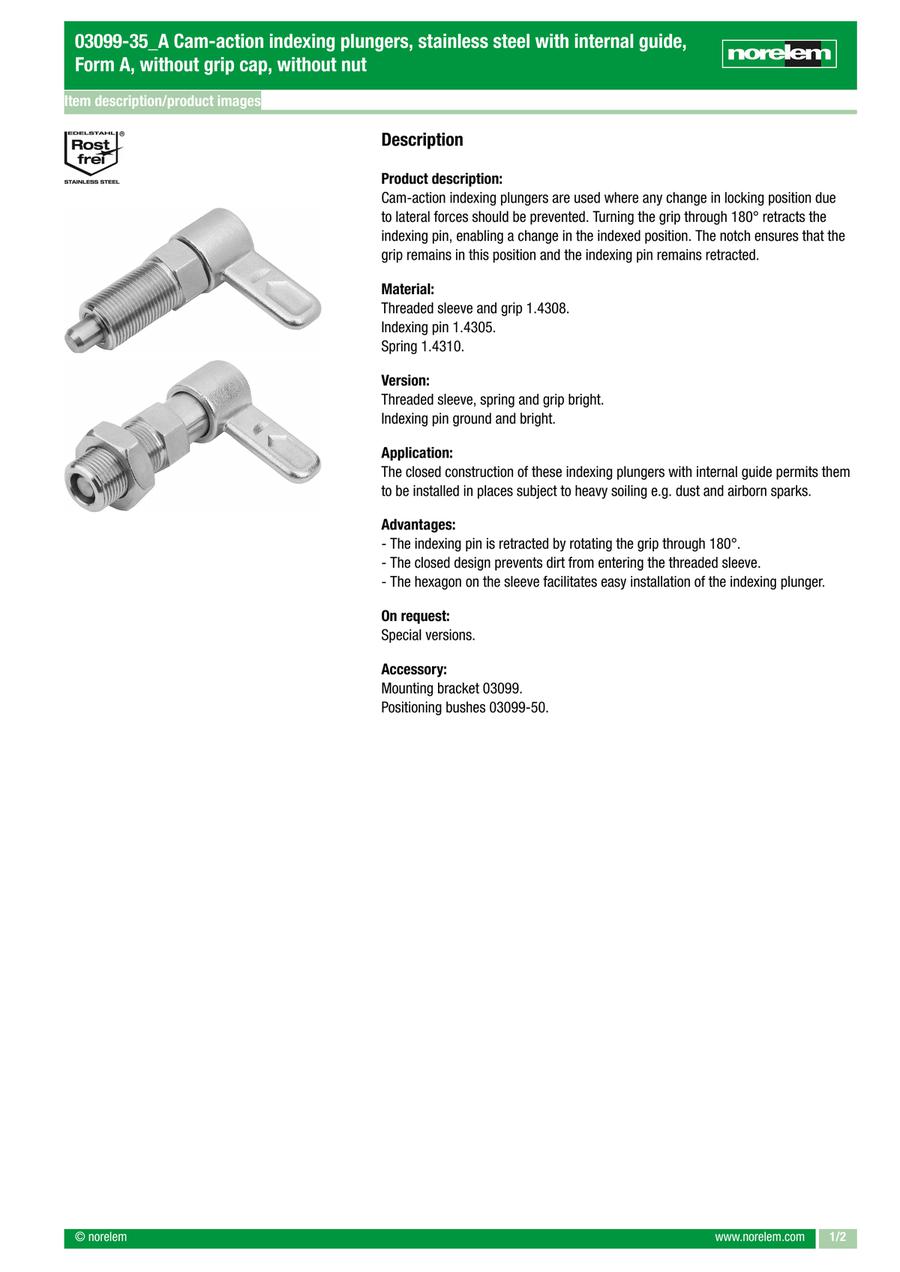

Cam-action indexing plungers, stainless steel with internal guide, Form A, without grip cap, without nut (03099-35)
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
21.83 € ( 25.98 € ) | 4 working days |
23.83 € ( 28.36 € ) | 4 working days |
26.18 € ( 31.15 € ) | 4 working days |
31.09 € ( 37.00 € ) | 4 working days |
More Information
Basic information
· Turning the grip through 180° retracts the indexing pin.
· The closed design prevents dirt from entering the threaded sleeve.
· The hexagon on the sleeve facilitates easy installation of the indexing plunger
