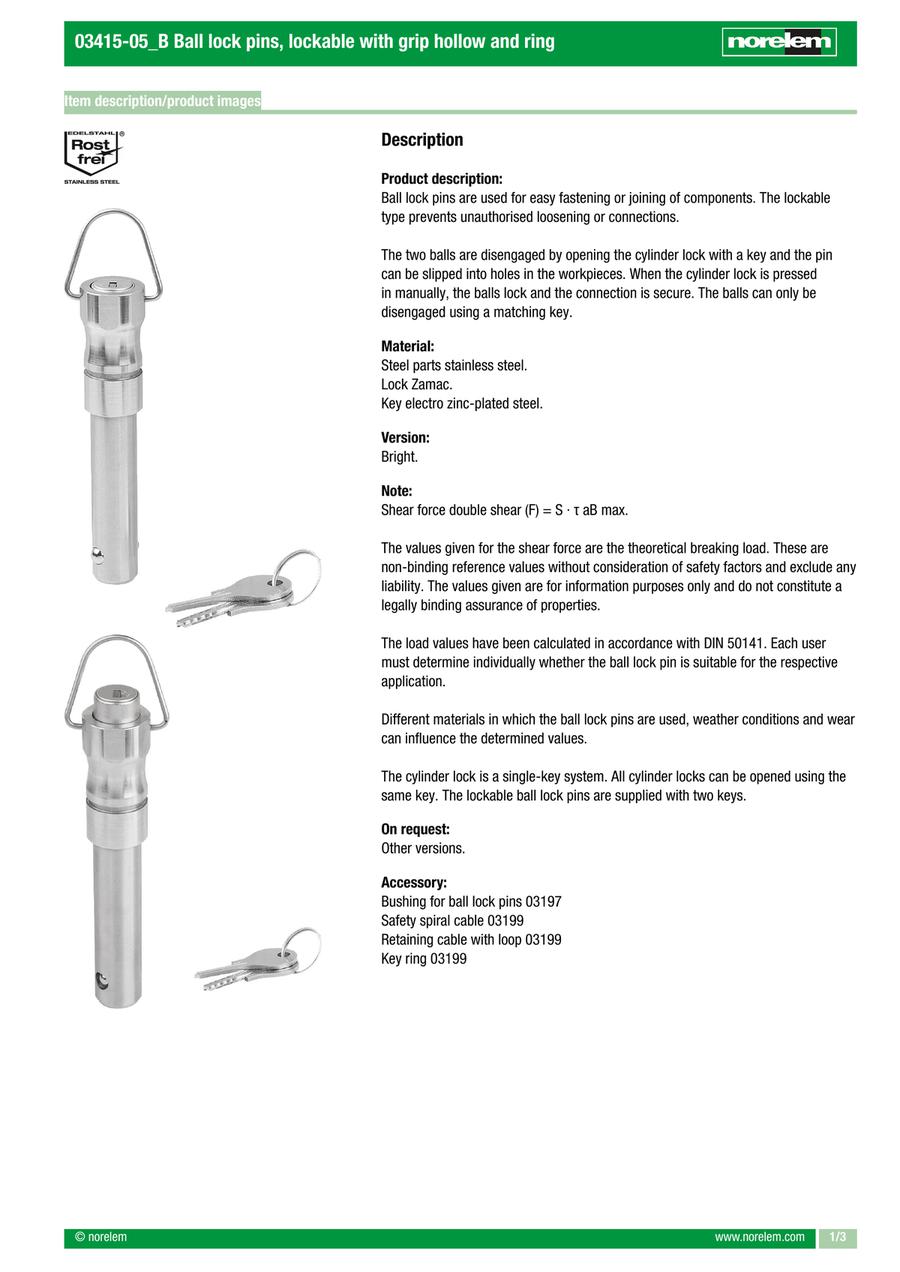

Ball lock pins, lockable with grip hollow and ring (03415-05)

Configure

D1=Pin diameter
- 8
- 10
- 12
- 16
D2(mm)
- 9.5
- 12
- 14.5
- 19
L=Length(mm)
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 60
- 70
- 80
L2(mm)
- 49.2
- 51.2
L5(mm)
- 27.8
- 28.9
- 32.8
- 33.9
- 34.9
- 37.8
- 38.9
- 39.9
- 42.8
- 43.1
- 43.9
- 44.9
- 47.8
- 48.1
- 48.9
- 49.9
- 52.8
- 53.1
- 53.9
- 54.9
- 57.8
- 58.1
- 58.9
- 59.9
- 63.1
- 68.9
- 69.9
- 73.1
- 79.9
- 83.1
- 89.9
- 93.1
Receiving hole H11(mm)
- 8
- 10
- 12
- 16
Shearing force double shear max.(kN)
- 38
- 60
- 86
- 153
Est. shipping days
- All
- Within 4 working days

Ball lock pins, lockable with grip hollow and ring (03415-05)

Catalog

Part number:

Still undefined. 32 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

D1=Pin diameter

(mm)

L=Length

(mm)

Receiving hole H11

(mm)

Shearing force double shear max.

(kN)

Weight (ERP)

(kg)

Minimum order quantity

8	9.5	20	49.2	27.8	8	38	0.1970	1 pieces
8	9.5	25	49.2	32.8	8	38	0.1980	1 pieces
8	9.5	30	49.2	37.8	8	38	0.1990	1 pieces
8	9.5	35	49.2	42.8	8	38	0.2000	1 pieces
8	9.5	40	49.2	47.8	8	38	0.2010	1 pieces
8	9.5	45	49.2	52.8	8	38	0.2020	1 pieces
8	9.5	50	49.2	57.8	8	38	0.2030	1 pieces
10	12	20	49.2	28.9	10	60	0.2050	1 pieces
10	12	25	49.2	33.9	10	60	0.2060	1 pieces
10	12	30	49.2	38.9	10	60	0.2070	1 pieces
10	12	35	49.2	43.9	10	60	0.2080	1 pieces
10	12	40	49.2	48.9	10	60	0.2090	1 pieces
10	12	45	49.2	53.9	10	60	0.2100	1 pieces
10	12	50	49.2	58.9	10	60	0.2110	1 pieces
10	12	60	49.2	68.9	10	60	0.2120	1 pieces
12	14.5	25	49.2	34.9	12	86	0.2020	1 pieces
12	14.5	30	49.2	39.9	12	86	0.2030	1 pieces
12	14.5	35	49.2	44.9	12	86	0.2040	1 pieces
12	14.5	40	49.2	49.9	12	86	0.2050	1 pieces
12	14.5	45	49.2	54.9	12	86	0.2060	1 pieces
12	14.5	50	49.2	59.9	12	86	0.2070	1 pieces
12	14.5	60	49.2	69.9	12	86	0.2080	1 pieces
12	14.5	70	49.2	79.9	12	86	0.2090	1 pieces
12	14.5	80	49.2	89.9	12	86	0.2100	1 pieces
16	19	30	51.2	43.1	16	153	0.2230	1 pieces
16	19	35	51.2	48.1	16	153	0.2240	1 pieces
16	19	40	51.2	53.1	16	153	0.2250	1 pieces
16	19	45	51.2	58.1	16	153	0.2260	1 pieces
16	19	50	51.2	63.1	16	153	0.2270	1 pieces
16	19	60	51.2	73.1	16	153	0.2280	1 pieces
16	19	70	51.2	83.1	16	153	0.2290	1 pieces
16	19	80	51.2	93.1	16	153	0.2300	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

36.34 € ( 43.24 € )	4 working days
36.34 € ( 43.24 € )	4 working days
40.34 € ( 48.00 € )	4 working days
40.34 € ( 48.00 € )	4 working days
40.34 € ( 48.00 € )	4 working days
40.34 € ( 48.00 € )	4 working days
40.34 € ( 48.00 € )	4 working days
49.02 € ( 58.33 € )	4 working days
49.02 € ( 58.33 € )	4 working days
51.49 € ( 61.27 € )	4 working days
51.49 € ( 61.27 € )	4 working days
51.49 € ( 61.27 € )	4 working days
51.49 € ( 61.27 € )	4 working days
51.49 € ( 61.27 € )	4 working days
54.15 € ( 64.44 € )	4 working days
44.74 € ( 53.24 € )	4 working days
46.66 € ( 55.53 € )	4 working days
46.66 € ( 55.53 € )	4 working days
46.66 € ( 55.53 € )	4 working days
46.66 € ( 55.53 € )	4 working days
46.66 € ( 55.53 € )	4 working days
48.69 € ( 57.94 € )	4 working days
49.87 € ( 59.35 € )	4 working days
49.87 € ( 59.35 € )	4 working days
68.42 € ( 81.42 € )	4 working days
68.42 € ( 81.42 € )	4 working days
68.42 € ( 81.42 € )	4 working days
68.42 € ( 81.42 € )	4 working days
68.42 € ( 81.42 € )	4 working days
73.68 € ( 87.68 € )	4 working days
73.68 € ( 87.68 € )	4 working days
78.18 € ( 93.03 € )	4 working days

More Information

Basic information

Basic information

· Lockable

· For connecting machine parts and workpieces quickly and easily

· Application sectors: machine, instrument and fixture construction, measuring technology, chemical and foodstuff industries
