NORELEM

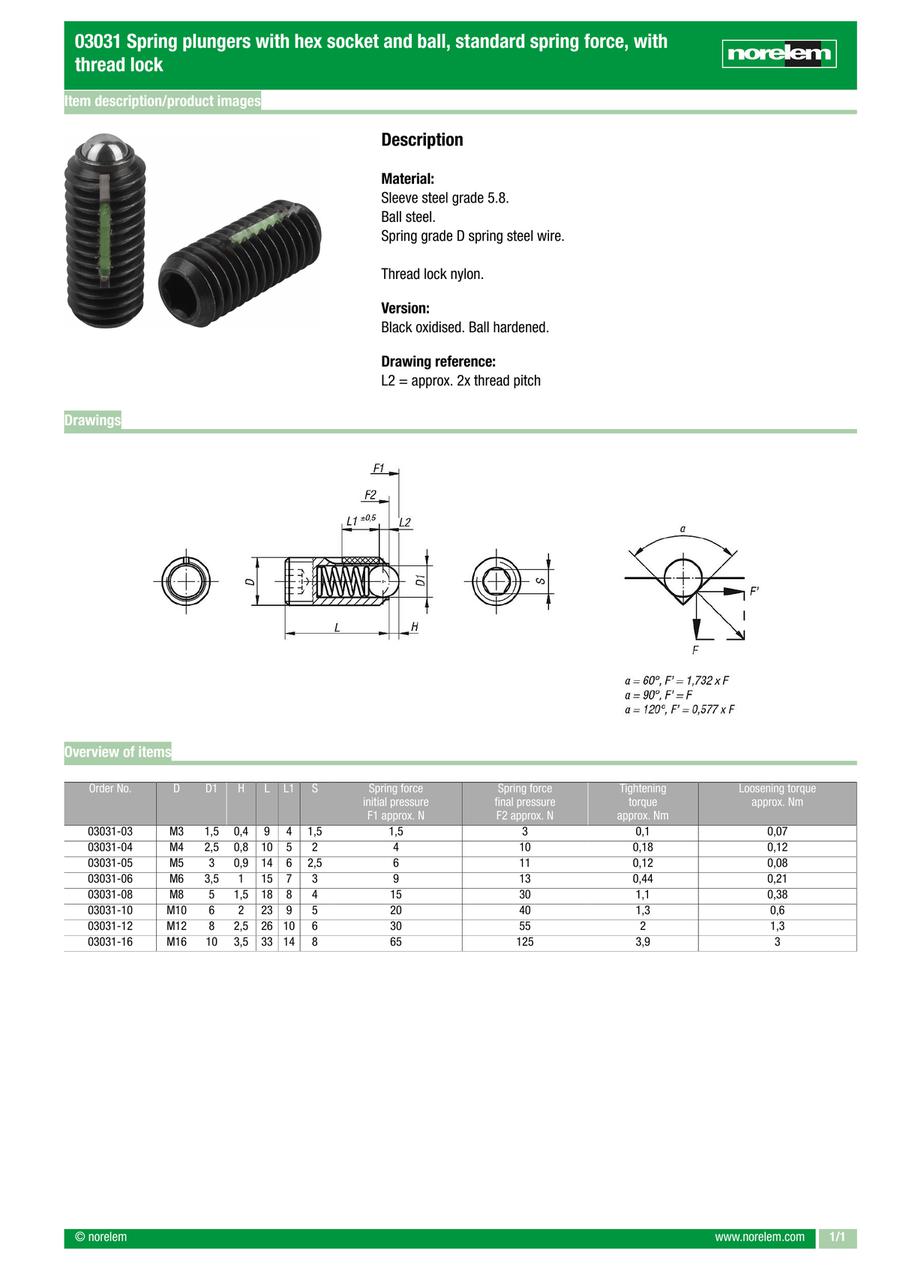

Spring plungers with hex socket and ball, standard spring force, with thread lock (03031)

Spring plungers with hex socket and ball, standard spring force, with thread lock (03031)

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03031-03
    03031-04
    03031-05
    03031-06
    03031-08
    03031-10
    03031-12
    03031-16

    Thread M

    (mm)

    H

    (mm)

    D1

    (mm)

    L1

    (mm)

    L=Length

    (mm)

    S

    (mm)

    Loosening torque approx.

    (Nm)

    Spring force initial pressure F1 approx.

    (N)

    Spring force final pressure F2 approx.

    (N)

    Tightening torque approx.

    (Nm)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    3
    0.4
    1.5
    4
    9
    1.5
    0.07
    1.5
    3
    0.1
    0.0003
    1 pieces
    4
    0.8
    2.5
    5
    10
    2
    0.12
    4
    10
    0.18
    0.0005
    1 pieces
    5
    0.9
    3
    6
    14
    2.5
    0.08
    6
    11
    0.12
    0.0011
    1 pieces
    6
    1
    3.5
    7
    15
    3
    0.21
    9
    13
    0.44
    0.0017
    1 pieces
    8
    1.5
    5
    8
    18
    4
    0.38
    15
    30
    1.1
    0.0036
    1 pieces
    10
    2
    6
    9
    23
    5
    0.6
    20
    40
    1.3
    0.0077
    1 pieces
    12
    2.5
    8
    10
    26
    6
    1.3
    30
    55
    2
    0.0118
    1 pieces
    16
    3.5
    10
    14
    33
    8
    3
    65
    125
    3.9
    0.0301
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    3.24 €
    ( 3.86 € )
    4 working days
    2.80 €
    ( 3.33 € )
    4 working days
    2.76 €
    ( 3.28 € )
    4 working days
    2.64 €
    ( 3.14 € )
    4 working days
    3.20 €
    ( 3.81 € )
    4 working days
    3.48 €
    ( 4.14 € )
    4 working days
    5.92 €
    ( 7.04 € )
    4 working days
    8.45 €
    ( 10.06 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Quick indexing, positioning and fixating of components

    · Application sectors: machine and plant construction, trade, domestic

    · Universally applicable and easy to mount

    · ball point hardened

    · with thread lock: safety against vibrations, reusable
