NORELEM

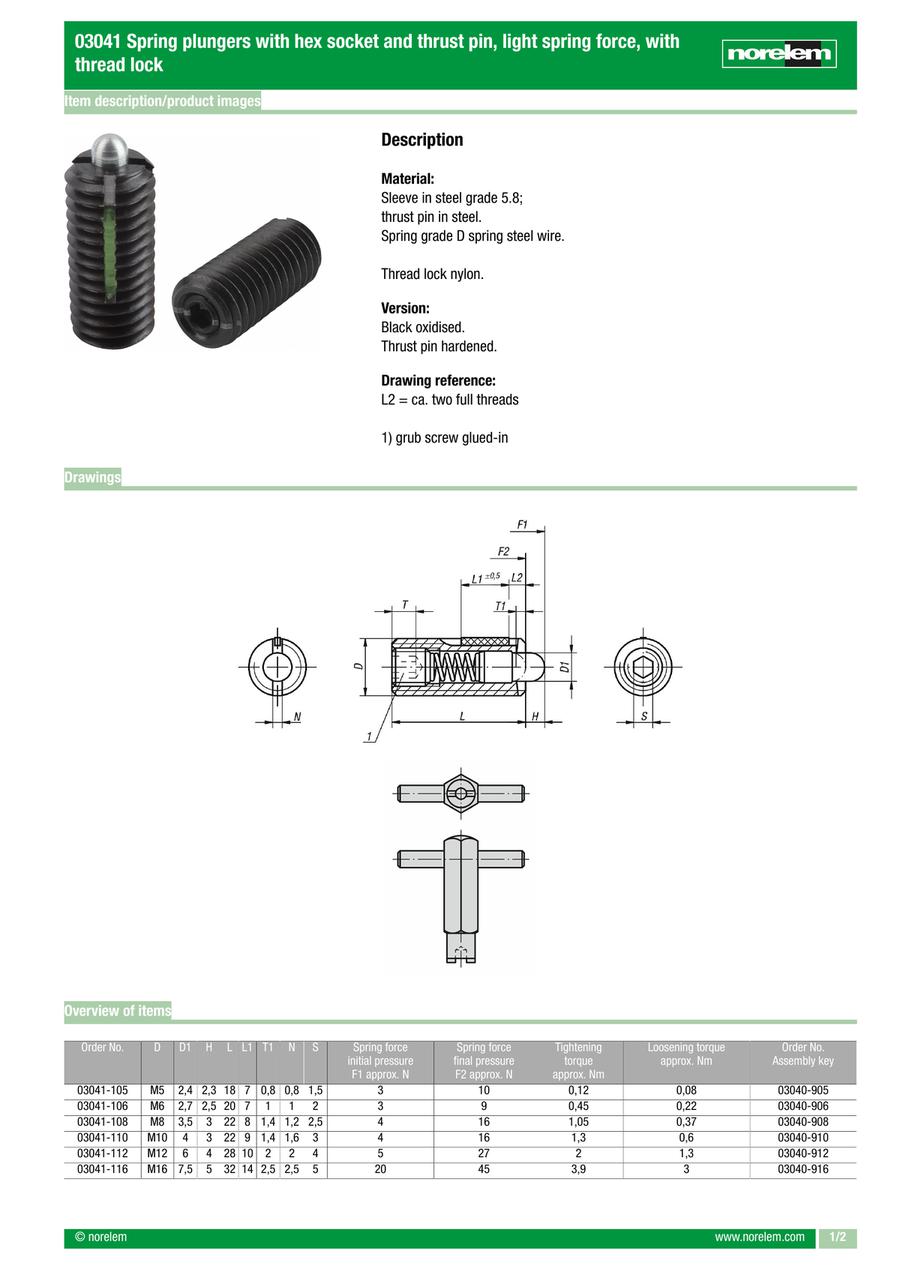

Spring plungers with hex socket and thrust pin, light spring force, with thread lock (03041)

Spring plungers with hex socket and thrust pin, light spring force, with thread lock (03041)

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03041-105
    03041-106
    03041-108
    03041-110
    03041-112
    03041-116

    Thread M

    (mm)

    H

    (mm)

    D1

    (mm)

    L1

    (mm)

    L=Length

    (mm)

    S

    (mm)

    T1

    (mm)

    Assembly key approx. weight

    Loosening torque approx.

    (Nm)

    N

    (mm)

    Order No. assembly key

    Spring force initial pressure F1 approx.

    (N)

    Spring force final pressure F2 approx.

    (N)

    Tightening torque approx.

    (Nm)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    5
    2.3
    2.4
    7
    18
    1.5
    0.8
    14
    0.08
    0.8
    03040-905
    3
    10
    0.12
    0.0016
    1 pieces
    6
    2.5
    2.7
    7
    20
    2
    1
    14
    0.22
    1
    03040-906
    3
    9
    0.45
    0.0026
    1 pieces
    8
    3
    3.5
    8
    22
    2.5
    1.4
    33
    0.37
    1.2
    03040-908
    4
    16
    1.05
    0.0051
    1 pieces
    10
    3
    4
    9
    22
    3
    1.4
    50
    0.6
    1.6
    03040-910
    4
    16
    1.3
    0.0086
    1 pieces
    12
    4
    6
    10
    28
    4
    2
    70
    1.3
    2
    03040-912
    5
    27
    2
    0.0158
    1 pieces
    16
    5
    7.5
    14
    32
    5
    2.5
    100
    3
    2.5
    03040-916
    20
    45
    3.9
    0.0335
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    3.38 €
    ( 4.02 € )
    4 working days
    3.48 €
    ( 4.14 € )
    4 working days
    3.95 €
    ( 4.70 € )
    4 working days
    4.33 €
    ( 5.15 € )
    4 working days
    6.83 €
    ( 8.13 € )
    4 working days
    9.51 €
    ( 11.32 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Quick indexing, positioning and fixating of components

    · Application sectors: machine and plant construction, trade, domestic

    · Universally applicable and easy to mount

    · ball point hardened

    · with thread lock: safety against vibrations, reusable
