Configure

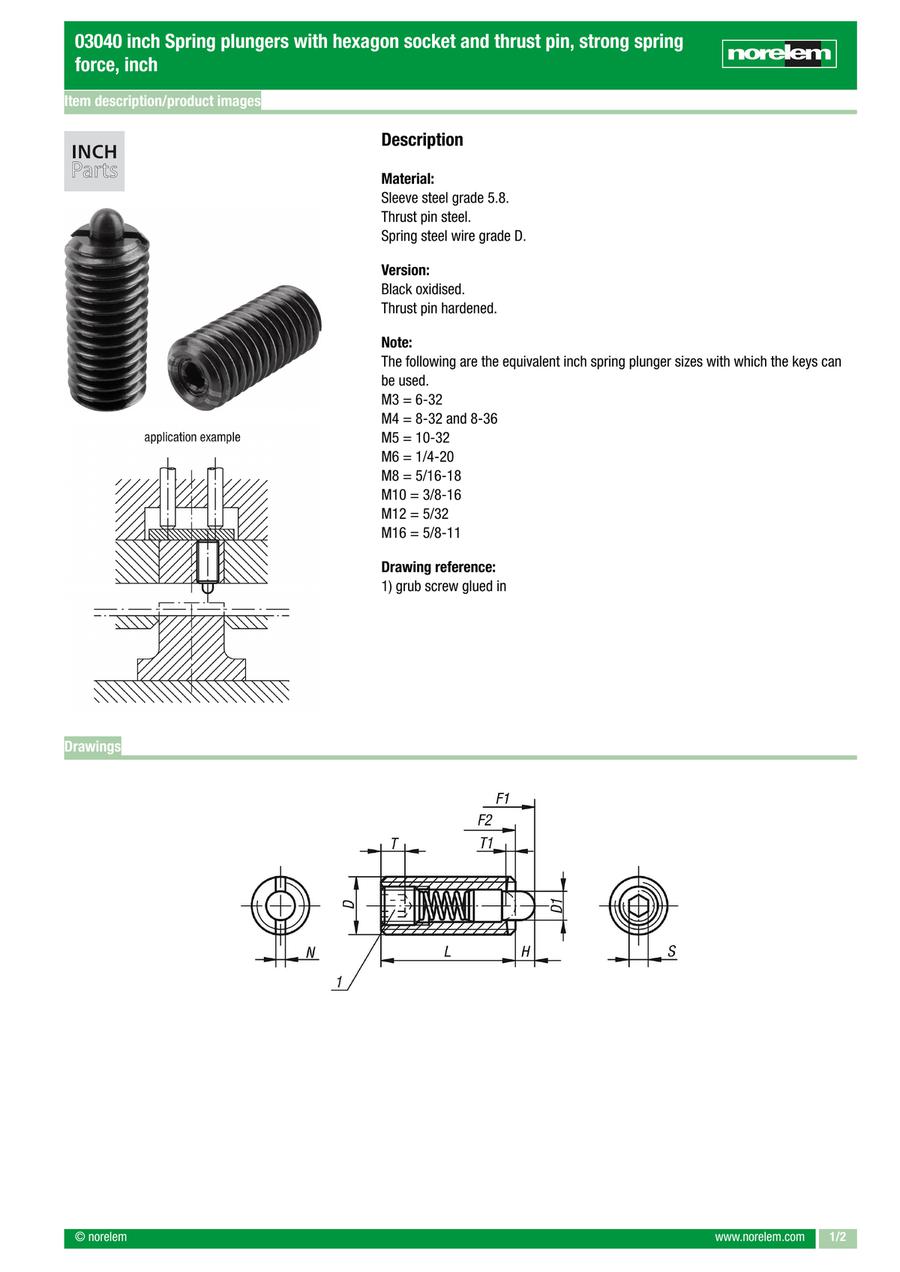

Spring plungers with hexagon socket and thrust pin, strong spring force, inch (03040)

Part number:

Still undefined. 7 possible part numbers found.
Quantity:

Part number list

Number of items

Initial Load (Range)

(N)

Initial Load

(N)

Max. Load

(N)

D=thread

D1

(mm)

L=Length

(mm)

H

(mm)

N

(mm)

S

(mm)

T1

(mm)

Weight (ERP)

(kg)

Minimum order quantity
0.01 to 50
11
29
10-32
2.4
18
2.3
0.8
1.5
0.8
0.0016
1 pieces
0.01 to 50
14
37
1/4-20
2.7
20
2.5
1
2
1
0.0030
1 pieces
0.01 to 50
22
65
5/16-18
3.5
22
3
1.2
2.5
1.4
0.0053
1 pieces
0.01 to 50
19
70
3/8-16
4
22
3
1.6
3
1.4
0.0077
1 pieces
0.01 to 50
25
85
1/2-13
6
28
4
2
4
2
0.0183
1 pieces
50.01 to 100
60
150
5/8-11
7.5
32
5
2.5
5
2.5
0.0323
1 pieces
0.01 to 50
14
37
1/4-28
2.7
20
2.5
1
2
1
0.0034
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
3.33 €
( 3.96 € )
4 working days
3.42 €
( 4.07 € )
4 working days
4.11 €
( 4.89 € )
4 working days
4.55 €
( 5.41 € )
4 working days
5.89 €
( 7.01 € )
4 working days
7.55 €
( 8.98 € )
4 working days
3.42 €
( 4.07 € )
4 working days

More Information

Basic information

· Quick indexing, positioning and fixating of components

· Application sectors: machine and plant construction, trade, domestic

· Universally applicable

· Simple assembly

· Hardened thrust pin
