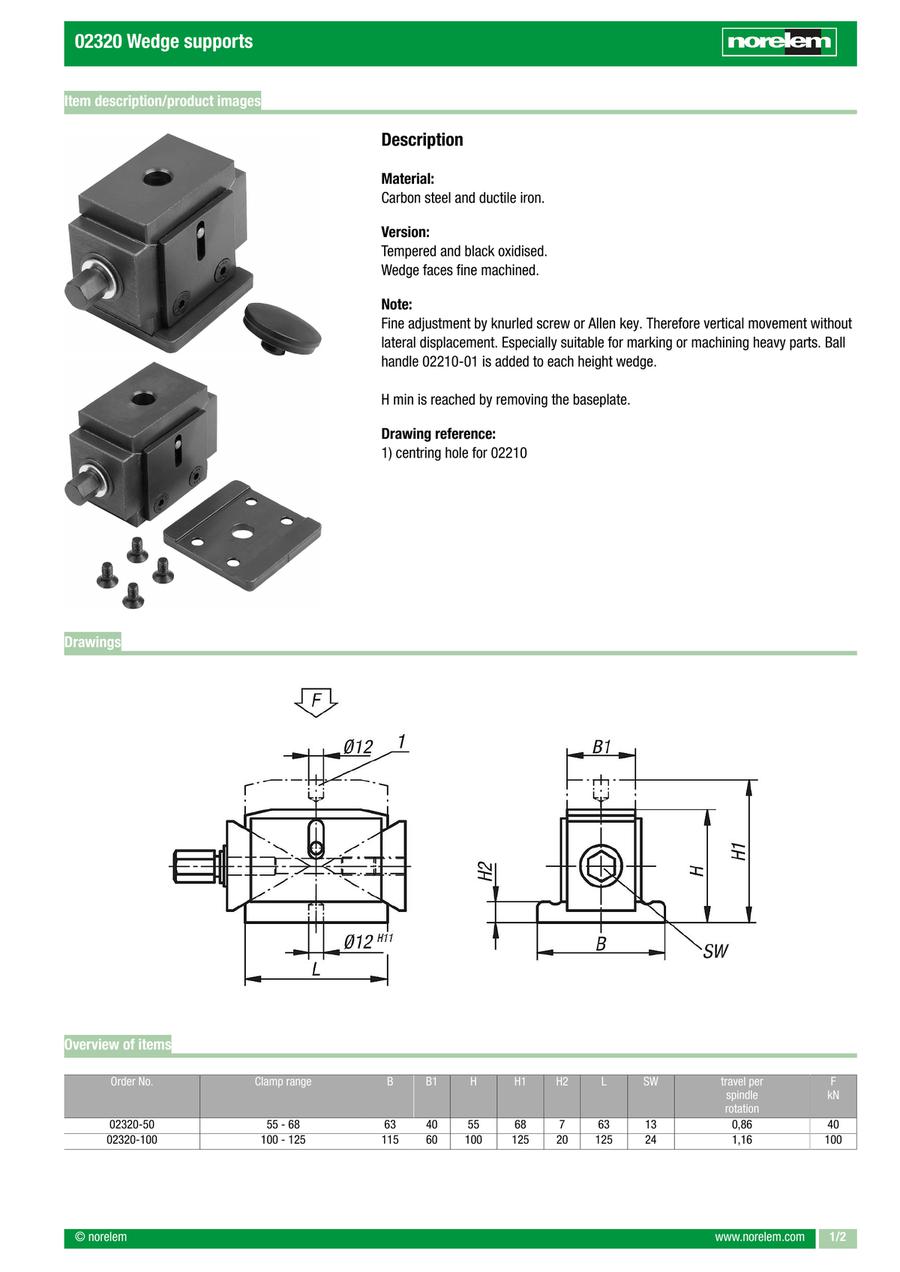

Leveling wedge, carbon steel (02320)
· Particularly suitable for marking out or machining heavy parts
· Various optional attachments available
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 02320-50 |
| 02320-100 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | B | B1 | B3=Clamping range | F (kN) | H | H1 | H2 | L | SW=key width | travel per spindle rotation | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
459.54 € | 1 | 4 Days | 63 | 40 | 50 - 68 | 40 | 50 | 68 | 7 | 63 | 13 | 0.86 | 1.5690 | ||
986.70 € | 1 | 4 Days | 115 | 60 | 100 - 125 | 100 | 100 | 125 | 20 | 125 | 24 | 1.16 | 8.4250 |
Loading...
Basic information
| Main material | High carbon steel | Item | Levelling Wedge | RoHS | yes |
|---|
Configure
Basic Attributes
-
B
- 63
- 115
-
B1
- 40
- 60
-
B3=Clamping range
- 50 - 68
- 100 - 125
-
F(kN)
- 40
- 100
-
H
- 50
- 100
-
H1
- 68
- 125
-
H2
- 7
- 20
-
L
- 63
- 125
-
SW=key width
- 13
- 24
-
travel per spindle rotation
- 0.86
- 1.16
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
