NORELEM

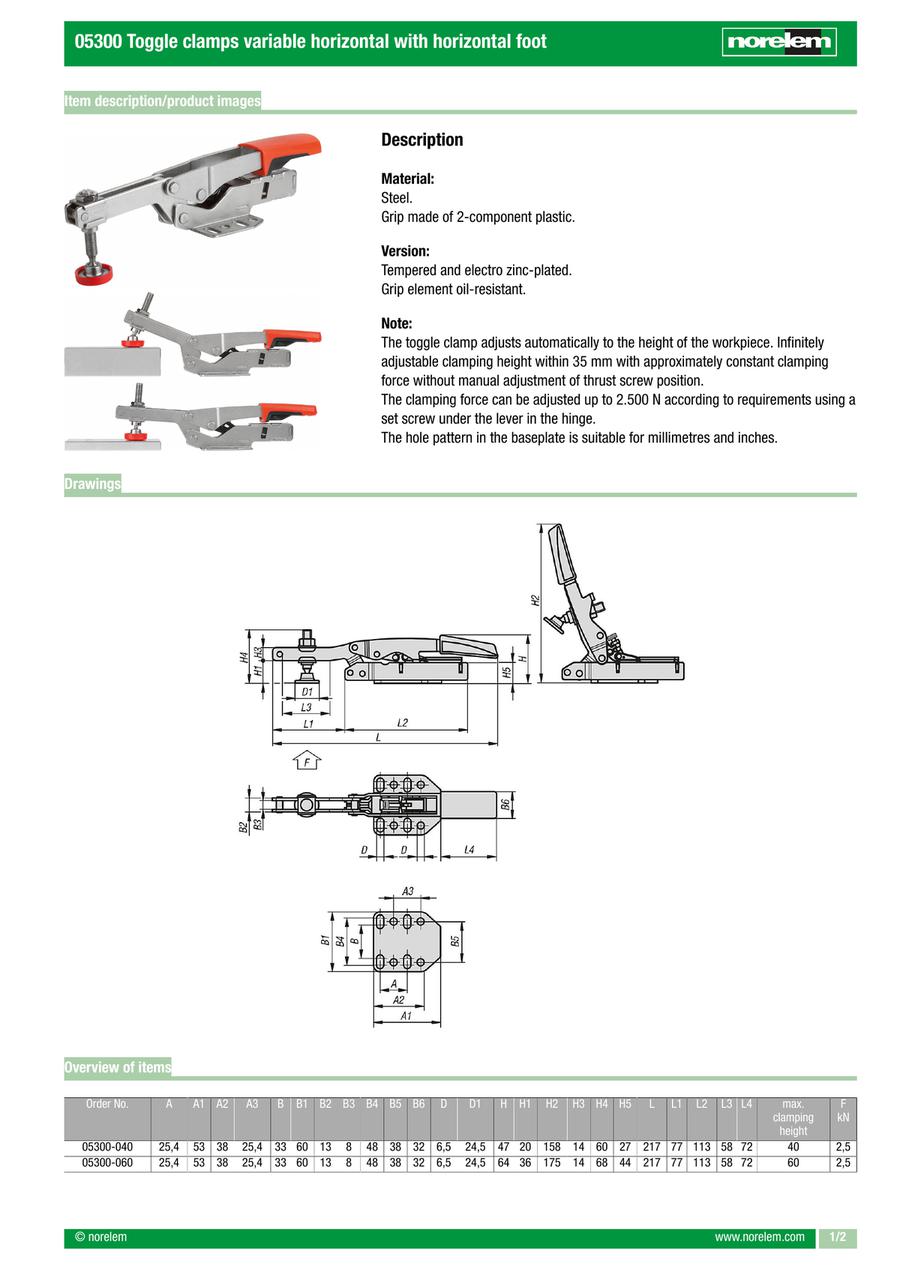

Toggle clamps variable horizontal with horizontal foot (05300)

Toggle clamps variable horizontal with horizontal foot (05300)

Part number:

Still undefined. 2 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    05300-040
    05300-060

    H

    (mm)

    H1

    (mm)

    H2

    (mm)

    H4

    (mm)

    H5

    (mm)

    max. clamping height

    Weight (ERP)

    (kg)

    		Minimum order quantity
    47
    20
    158
    60
    27
    40
    0.4218
    1 pieces
    64
    36
    175
    68
    44
    60
    0.4588
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    43.03 €
    ( 51.21 € )
    4 working days
    44.17 €
    ( 52.56 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Automatic adaptation to workpiece height without having to adjust the thrust screw

    · Adjustable clamping force

    · Toggle clamps and power clamps are used in assembly and workholding fixtures

    · Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry
