Configure
- Hand Force(N)
- 160
- 200
- Retaining force F1(N)
- 1350
- 2000
- Retaining force F2(N)
- 1900
- 2800
- Clamping force F3(N)
- 720
- 830
- Clamping force F4(N)
- 1200
- 1400
- A1(mm)
- 39
- 44
- A2(mm)
- 6.5
- 9
- A4(mm)
- 2.5
- 3.5
- B2(mm)
- 17.5
- 21
- B3(mm)
- 12.5
- 16
- B6(mm)
- 51.1
- 53.4
- C(mm)
- 36.9
- 46.5
- C2(mm)
- 8
- 10.5
- D(mm)
- 5.5
- 6.2
- H(mm)
- 75.2
- 88.2
- H1(mm)
- 71
- 84.3
- L(mm)
- 193.3
- 230.4
- L1(mm)
- 60.5
- 74.9
- Est. shipping days
- All
- Within 4 working days

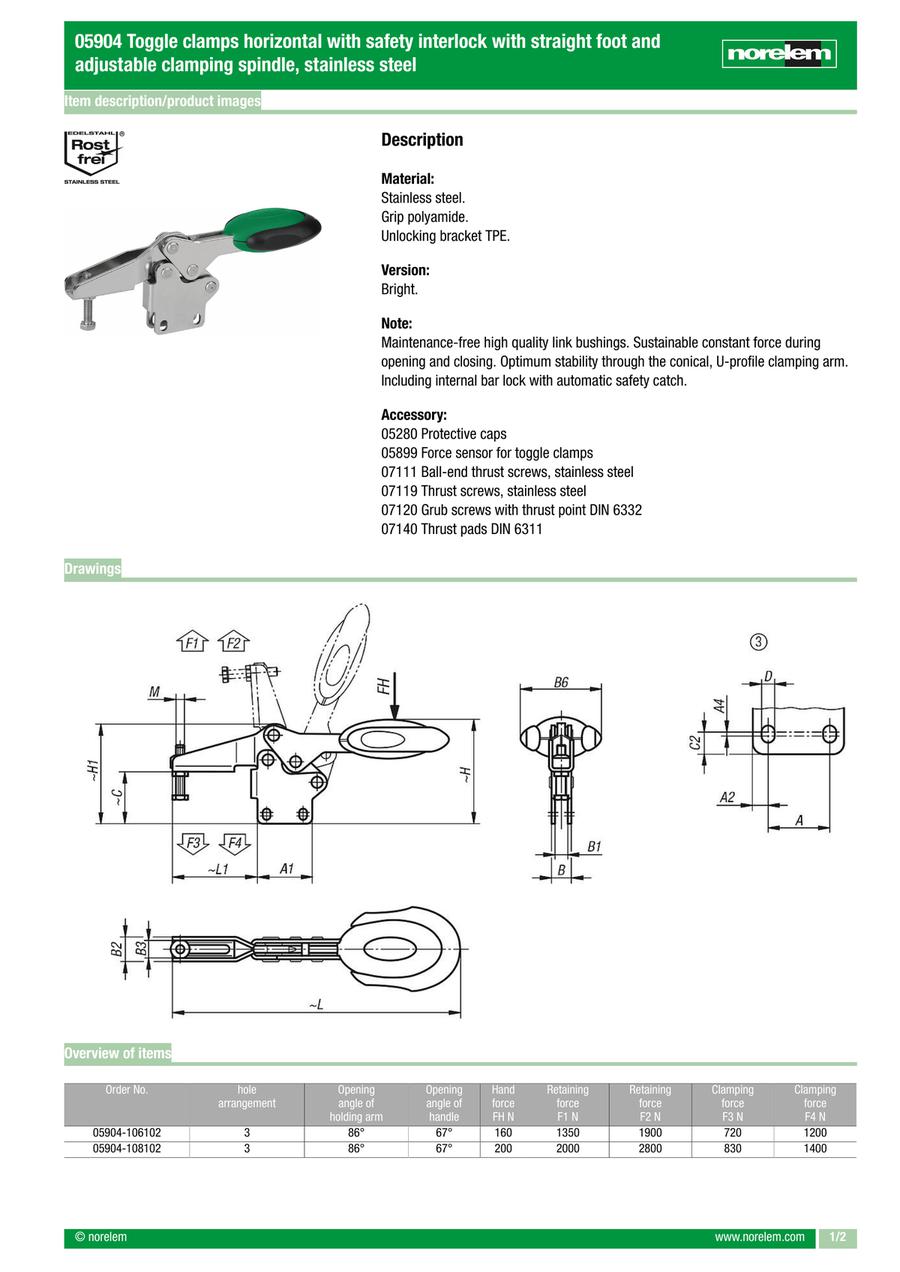

Toggle clamps horizontal with safety interlock with straight foot and adjustable clamping spindle, stainless steel (05904)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
94.02 € ( 111.88 € ) | 4 working days |
111.30 € ( 132.45 € ) | 4 working days |
More Information
Basic information
· Toggle clamps and power clamps are used in assembly and workholding fixtures
· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry
· Optimum stability through the conical, U-profile clamping arm
· Slim design – ideal for tight spaces
· Internal rod lock with automatic catch
