Configure
- A(mm)
- 55
- 60
- 68
- 75
- B(mm)
- 28
- 30
- 35
- 40
- D1(mm)
- 6
- 6.5
- 8.5
- 9
- F(kN)
- 1
- 2
- 3
- 4
- H(mm)
- 33
- 42
- 47
- 59
- H1(mm)
- 26.2
- 31.5
- 35.5
- 50
- L(mm)
- 178
- 255
- 275
- 300
- L1(mm)
- 40
- 49
- 52
- 62
- L2(mm)
- 40
- 45
- 52
- 58
- L3(mm)
- 75
- 85
- 92
- 100
- L4(mm)
- 10
- 12
- 12.5
- L5 max.(mm)
- 23
- 26
- 35
- 36
- L5 min.(mm)
- 13
- 14
- 25
- S1(mm)
- 2
- 2.5
- 3
- Travel S(mm)
- 15
- 22
- 26
- Est. shipping days
- All
- Within 4 working days

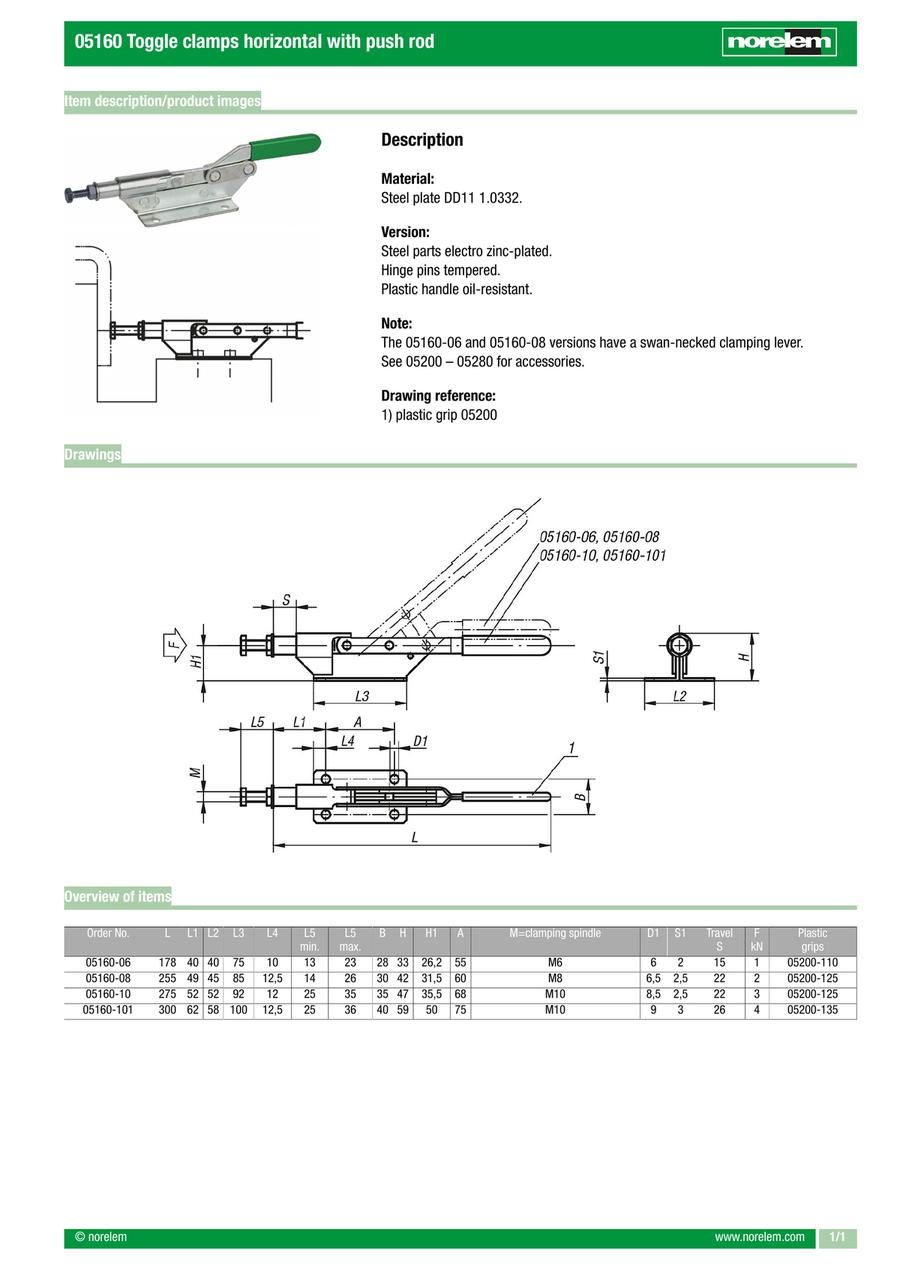

Toggle clamps horizontal with push rod (05160)
Part number:
possible part numbers found.More Information
Basic information
· Toggle clamps and power clamps are used in assembly and workholding fixtures
· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry
· Self-locking prevents the clamping arm opening autonomously.
