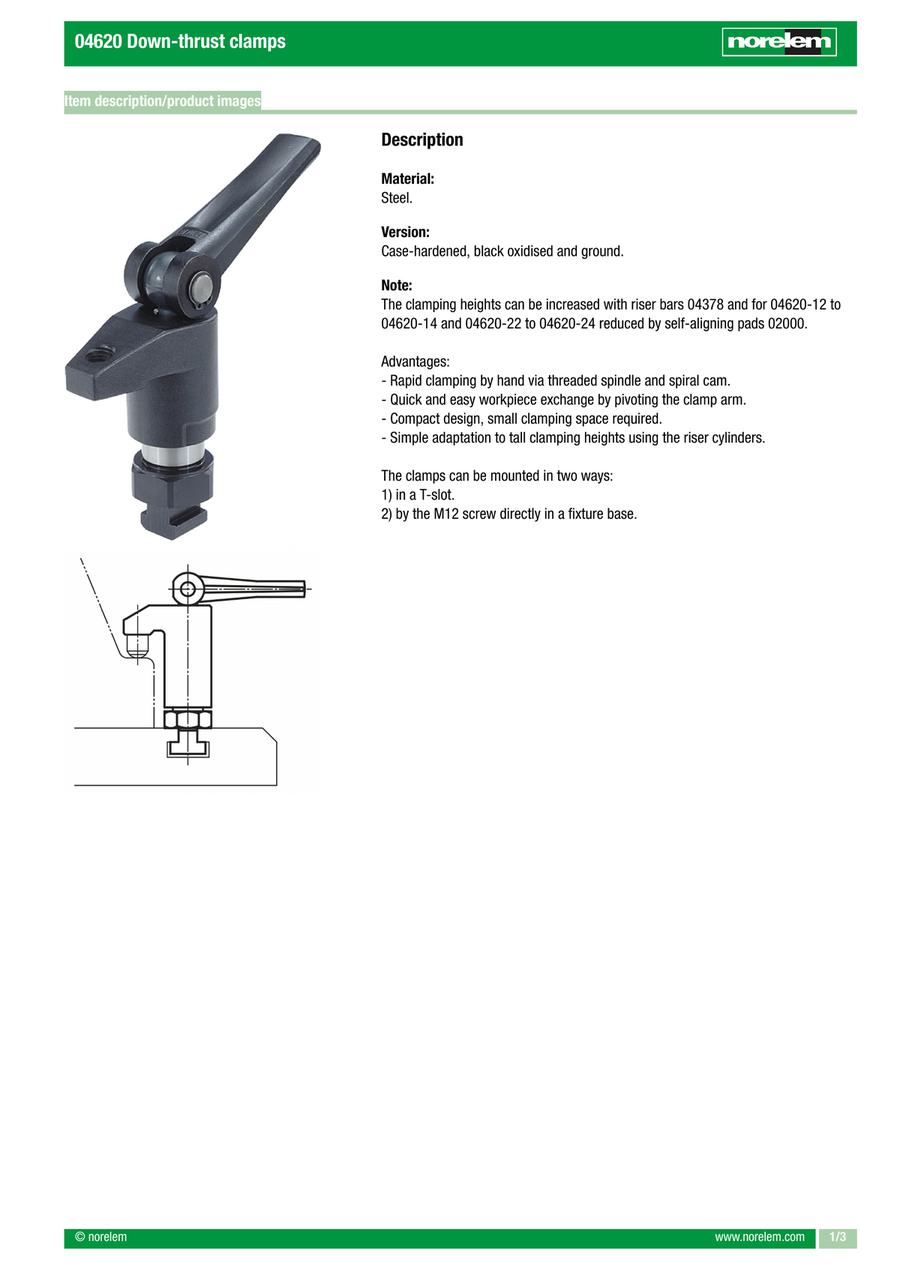

Down-thrust clamps (04620)

Down-thrust clamps (04620)

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    04620-11
    04620-12
    04620-13
    04620-14
    04620-21
    04620-22
    04620-23
    04620-24

    Form

    Clamping height max. H1

    Clamping height min. H2

    Form definition

    H3

    (mm)

    H4=height

    (mm)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    A
    30
    25
    With cam lever
    15
    54-59
    1.0240
    1 pieces
    C
    70
    50
    With cam lever and thread
    15
    73-93
    1.1940
    1 pieces
    C
    98
    68
    With cam lever and thread
    15
    91-121
    1.3600
    1 pieces
    C
    135
    95
    With cam lever and thread
    22
    118-158
    1.6150
    1 pieces
    B
    30
    25
    With clamping screw
    15
    54-59
    0.7000
    1 pieces
    D
    70
    50
    With clamping screw and thread
    15
    73-93
    0.8658
    1 pieces
    D
    98
    68
    With clamping screw and thread
    15
    91-121
    1.0310
    1 pieces
    D
    135
    95
    With clamping screw and thread
    22
    118-158
    1.3690
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    288.24 €
    ( 343.01 € )
    4 working days
    361.01 €
    ( 429.60 € )
    4 working days
    361.01 €
    ( 429.60 € )
    4 working days
    372.42 €
    ( 443.18 € )
    4 working days
    209.10 €
    ( 248.83 € )
    4 working days
    271.50 €
    ( 323.08 € )
    4 working days
    271.50 €
    ( 323.08 € )
    4 working days
    282.18 €
    ( 335.79 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Rapid manual clamping with threaded spindle and spiral cam

    · Quick and easy workpiece change by swivelling away the clamp

    · Compact version
