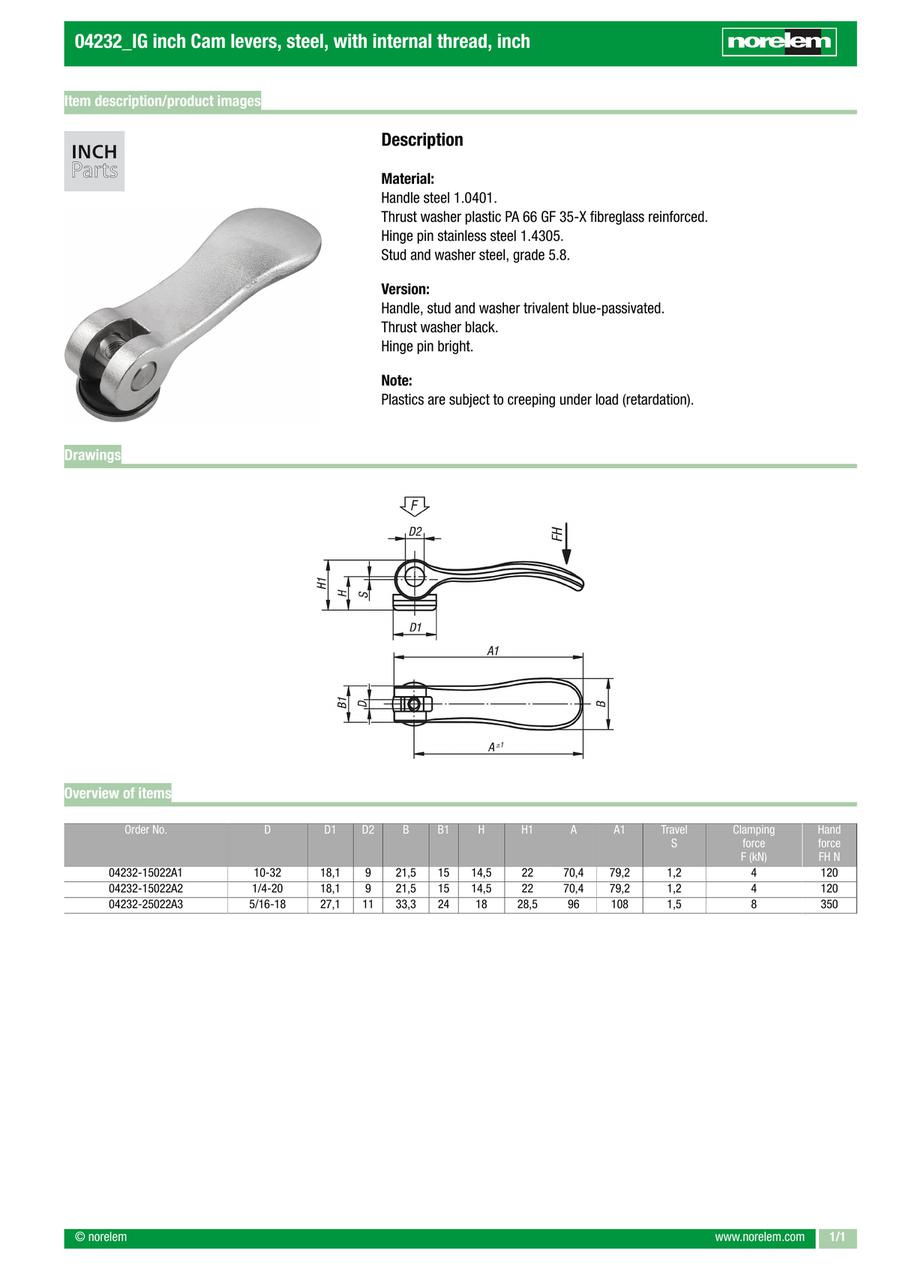

Cam levers, steel, with internal thread, inch (04232)

Cam levers, steel, with internal thread, inch (04232)

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    04232-15022A1
    04232-15022A2
    04232-25022A3

    Handle length

    (mm)

    A1=Handle length

    (mm)

    B=Width

    (mm)

    B1

    (mm)

    D=Thread

    D1

    (mm)

    D2

    (mm)

    H

    (mm)

    H1=Height

    (mm)

    Size

    Travel S

    (mm)

    Clamping force F

    (kN)

    Hand force FH

    (N)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    70.4
    79.2
    21.5
    15
    10-32
    18.1
    9
    14.5
    22
    1
    1.2
    4
    120
    0.0720
    1 pieces
    70.4
    79.2
    21.5
    15
    1/4-20
    18.1
    9
    14.5
    22
    1
    1.2
    4
    120
    0.0690
    1 pieces
    96
    108
    33.3
    24
    5/16-18
    27.1
    11
    18
    28.5
    2
    1.5
    8
    350
    0.2350
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    14.17 €
    ( 16.86 € )
    4 working days
    14.17 €
    ( 16.86 € )
    4 working days
    24.85 €
    ( 29.57 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Cam levers can be used to clamp workpieces quickly and torque-free

    · Advantage: workpiece needs no further securing

    · Application fields: machine and assembly construction, rehabilitation and medical technology

    · Different thread sizes
