Configure
  • Handle length(mm)
  • Component material
  • Surface finish component
  • A1=Handle length(mm)
  • B(mm)
  • D(mm)
  • D1(mm)
  • D2(mm)
  • H(mm)
  • H1(mm)
  • H2(mm)
  • H3=handle height(mm)
  • H4(mm)
  • Size
  • X=thread
  • T=thread depth(mm)
  • Est. shipping days
    • All
    • Within 4 working days

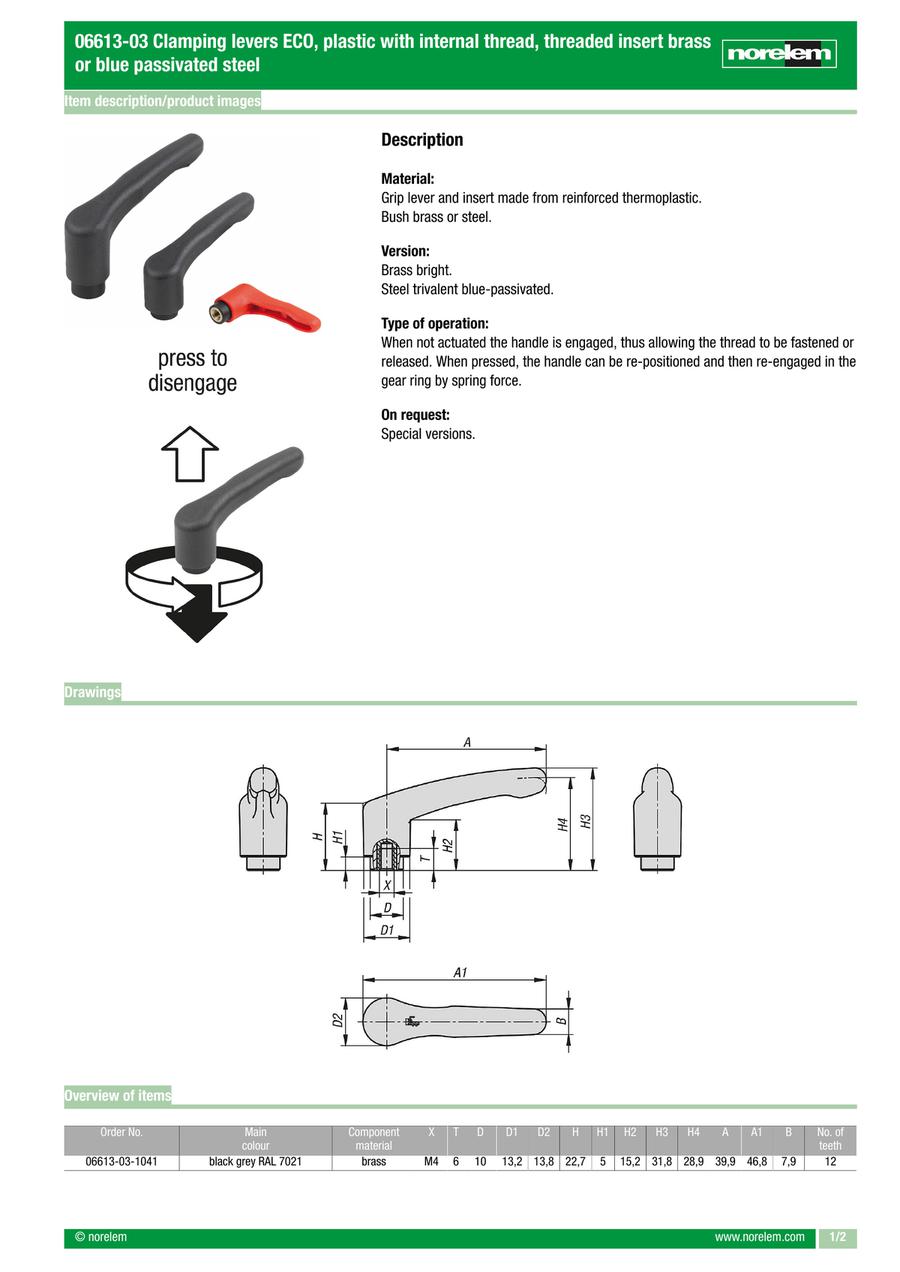

Clamping levers ECO, plastic with internal thread, threaded insert brass or blue passivated steel (06613-03)

Part number:

Still undefined. 14 possible part numbers found.
Quantity:

Part number list

Number of items

Handle length

(mm)

Component material

Main colour

Surface finish component

A1=Handle length

(mm)

B

(mm)

D

(mm)

D1

(mm)

D2

(mm)

H

(mm)

H1

(mm)

H2

(mm)

H3=handle height

(mm)

H4

(mm)

Size

X=thread

T=thread depth

(mm)

Weight (ERP)

(kg)

Minimum order quantity
39.9
Brass
Black grey RAL 7021
Bright
46.8
7.9
10
13.2
13.8
22.7
5
15.2
31.8
28.9
1
M4
6
0.0080
1 pieces
39.9
Brass
Traffic red RAL 3020
Bright
46.8
7.9
10
13.2
13.8
22.7
5
15.2
31.8
28.9
1
M4
6
0.0080
1 pieces
39.9
Brass
Black grey RAL 7021
Bright
46.8
7.9
10
13.2
13.8
22.7
5
15.2
31.8
28.9
1
M5
6
0.0100
1 pieces
39.9
Brass
Traffic red RAL 3020
Bright
46.8
7.9
10
13.2
13.8
22.7
5
15.2
31.8
28.9
1
M5
6
0.0100
1 pieces
65.2
Brass
Black grey RAL 7021
Bright
75
10.5
13.5
18.8
19.5
27.4
5.5
20.7
41.9
38
2
M5
7.5
0.0180
1 pieces
65.2
Brass
Traffic red RAL 3020
Bright
75
10.5
13.5
18.8
19.5
27.4
5.5
20.7
41.9
38
2
M5
7.5
0.0180
1 pieces
65.2
Brass
Black grey RAL 7021
Bright
75
10.5
13.5
18.8
19.5
27.4
5.5
20.7
41.9
38
2
M6
9
0.0155
1 pieces
65.2
Brass
Traffic red RAL 3020
Bright
75
10.5
13.5
18.8
19.5
27.4
5.5
20.7
41.9
38
2
M6
9
0.0155
1 pieces
65.2
Brass
Black grey RAL 7021
Bright
75
10.5
13.5
18.8
19.5
27.4
5.5
20.7
41.9
38
2
M8
9
0.0158
1 pieces
65.2
Brass
Traffic red RAL 3020
Bright
75
10.5
13.5
18.8
19.5
27.4
5.5
20.7
41.9
38
2
M8
9
0.0158
1 pieces
80.3
Steel
Black grey RAL 7021
Blue-passivated
91.3
11.7
17
21.2
22.2
40
10
31.4
58.1
53.3
3
M8
12
0.0402
1 pieces
80.3
Steel
Traffic red RAL 3020
Blue-passivated
91.3
11.7
17
21.2
22.2
40
10
31.4
58.1
53.3
3
M8
12
0.0402
1 pieces
80.3
Steel
Black grey RAL 7021
Blue-passivated
91.3
11.7
17
21.2
22.2
40
10
31.4
58.1
53.3
3
M10
12
0.0370
1 pieces
80.3
Steel
Traffic red RAL 3020
Blue-passivated
91.3
11.7
17
21.2
22.2
40
10
31.4
58.1
53.3
3
M10
12
0.0370
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
3.02 €
( 3.59 € )
4 working days
3.02 €
( 3.59 € )
4 working days
3.02 €
( 3.59 € )
4 working days
3.02 €
( 3.59 € )
4 working days
3.57 €
( 4.25 € )
4 working days
3.57 €
( 4.25 € )
4 working days
3.57 €
( 4.25 € )
4 working days
3.57 €
( 4.25 € )
4 working days
3.57 €
( 4.25 € )
4 working days
3.57 €
( 4.25 € )
4 working days
4.42 €
( 5.26 € )
4 working days
4.42 €
( 5.26 € )
4 working days
4.42 €
( 5.26 € )
4 working days
4.42 €
( 5.26 € )
4 working days

More Information

Basic information

· Press to disengage

· Closed grip contour without protruding edges
