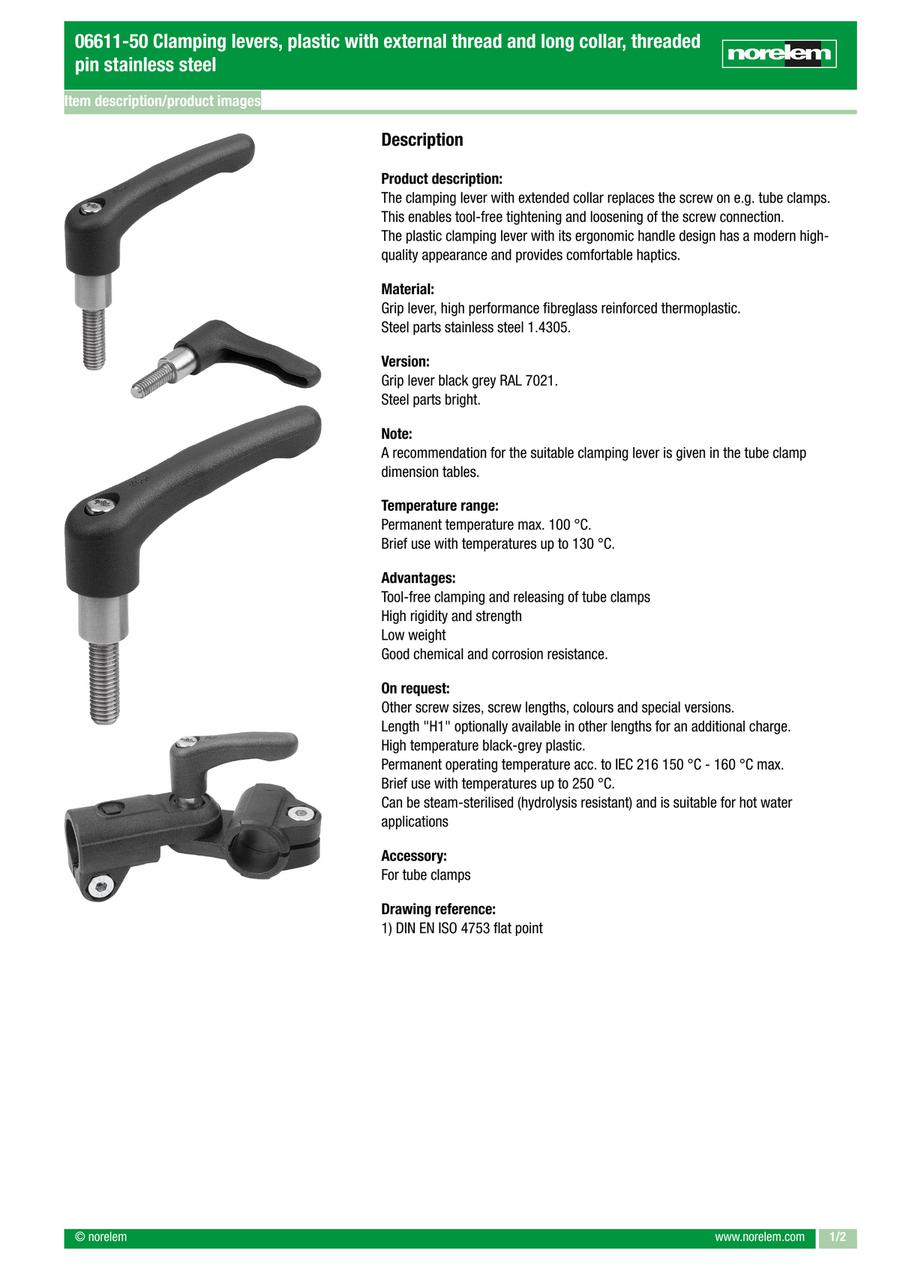

Clamping levers, plastic with external thread and long collar, threaded pin stainless steel (06611-50)

Clamping levers, plastic with external thread and long collar, threaded pin stainless steel (06611-50)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06611-50-106101X16
    06611-50-106101X18
    06611-50-208141X16
    06611-50-208141X20
    06611-50-208141X25

    Handle length

    (mm)

    A1=Handle length

    (mm)

    B

    (mm)

    D

    (mm)

    D1

    (mm)

    D2

    (mm)

    H

    (mm)

    H1

    (mm)

    H2

    (mm)

    H3=handle height

    (mm)

    H4

    (mm)

    L=thread length

    (mm)

    Size

    X=thread

    No. of teeth

    Weight (ERP)

    (kg)

    		Minimum order quantity
    39.9
    46.8
    7.9
    10
    13.2
    13.8
    30.5
    10
    20.2
    36.8
    41
    16
    1
    M6
    16
    0.0160
    1 pieces
    39.9
    46.8
    7.9
    10
    13.2
    13.8
    30.5
    10
    20.2
    36.8
    41
    18
    1
    M6
    16
    0.0170
    1 pieces
    65.2
    74.8
    10.5
    13
    18.5
    19.1
    36
    14
    26.1
    50.1
    54.6
    16
    2
    M8
    20
    0.0370
    1 pieces
    65.2
    74.8
    10.5
    13
    18.5
    19.1
    36
    14
    26.1
    50.1
    54.6
    20
    2
    M8
    20
    0.0380
    1 pieces
    65.2
    74.8
    10.5
    13
    18.5
    19.1
    36
    14
    26.1
    50.1
    54.6
    25
    2
    M8
    20
    0.0400
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    8.28 €
    ( 9.85 € )
    4 working days
    8.28 €
    ( 9.85 € )
    4 working days
    9.92 €
    ( 11.80 € )
    4 working days
    9.92 €
    ( 11.80 € )
    4 working days
    9.92 €
    ( 11.80 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Tool-free clamping and releasing of tube clamps

    · Good chemical and corrosion resistance
