Configure
- Handle length(mm)
- 36.2
- 52.3
- 70.4
- 96
- Surface finish body
- A1=Handle length(mm)
- 41.7
- 59.1
- 79.2
- 108
- B=Width(mm)
- 14.4
- 18
- 21.5
- 33.3
- B1(mm)
- 11.5
- 13
- 15
- 24
- D1(mm)
- 12
- 15.4
- 18.1
- 27.1
- D2(mm)
- 6
- 8
- 9
- 11
- H(mm)
- 9
- 11.2
- 14.5
- 18
- H1=Height(mm)
- 13
- 17
- 22
- 28.5
- Size
- 0
- 1
- 2
- 9
- Travel S(mm)
- 1
- 1.2
- 1.5
- Clamping force F(kN)
- 1.5
- 2.5
- 4
- 8
- Hand force FH(N)
- 90
- 100
- 120
- 350
- Est. shipping days
- All
- Within 4 working days

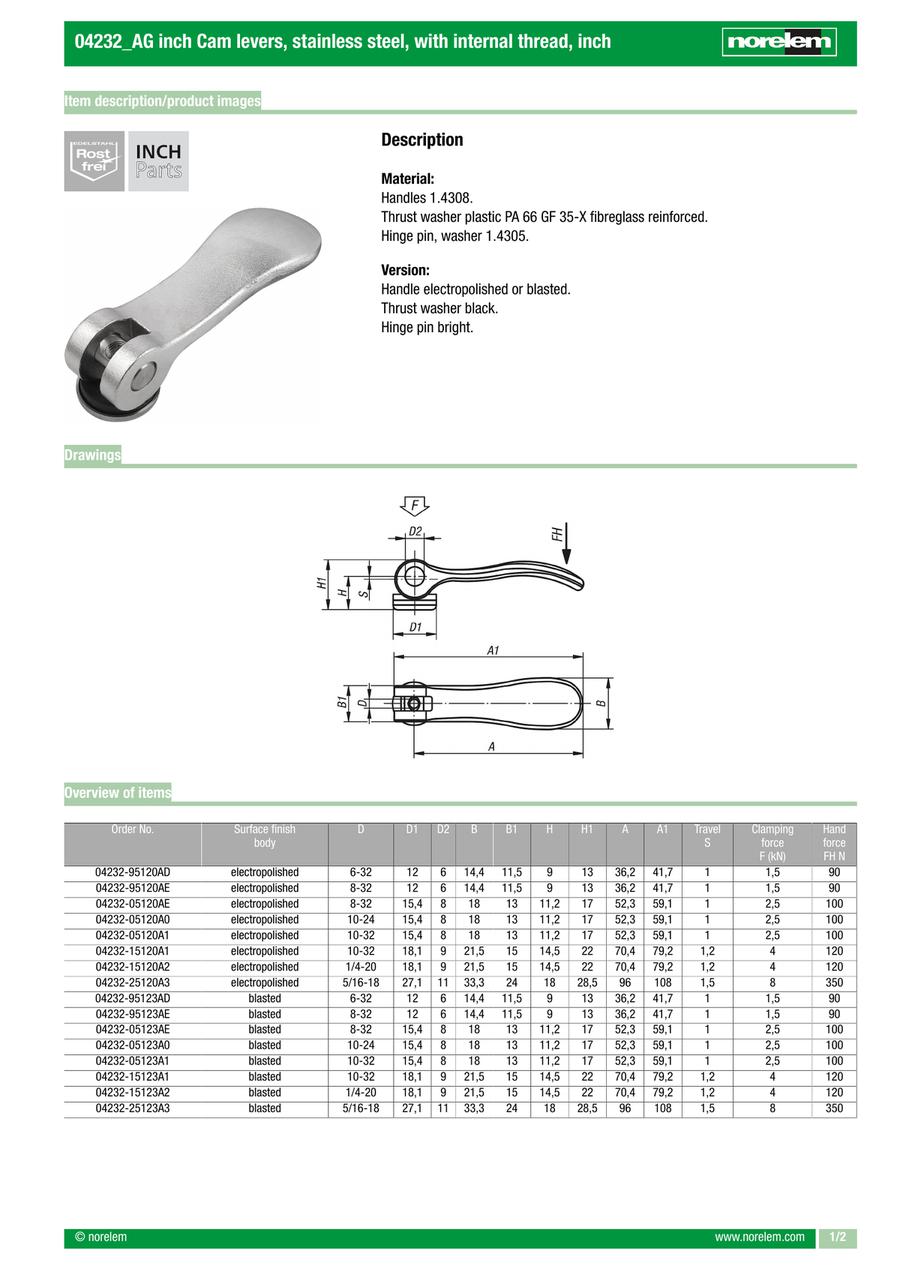

Cam levers, stainless steel, with internal thread, inch (04232)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
23.02 € ( 27.39 € ) | 4 working days |
23.02 € ( 27.39 € ) | 4 working days |
23.02 € ( 27.39 € ) | 4 working days |
20.71 € ( 24.64 € ) | 4 working days |
20.71 € ( 24.64 € ) | 4 working days |
20.71 € ( 24.64 € ) | 4 working days |
27.13 € ( 32.28 € ) | 4 working days |
27.13 € ( 32.28 € ) | 4 working days |
24.40 € ( 29.04 € ) | 4 working days |
24.40 € ( 29.04 € ) | 4 working days |
37.52 € ( 44.65 € ) | 4 working days |
33.81 € ( 40.23 € ) | 4 working days |
21.67 € ( 25.79 € ) | 4 working days |
21.67 € ( 25.79 € ) | 4 working days |
19.49 € ( 23.19 € ) | 4 working days |
19.49 € ( 23.19 € ) | 4 working days |
More Information
Basic information
· Cam levers can be used to clamp workpieces quickly and torque-free
· Advantage: workpiece needs no further securing
· Application fields: machine and assembly construction, rehabilitation and medical technology, foodstuff industry
· Also suitable for use in the foodstuff industry (corrosion resistant)
· Improved haptics thanks to electropolished or abrasive-blasted surface
