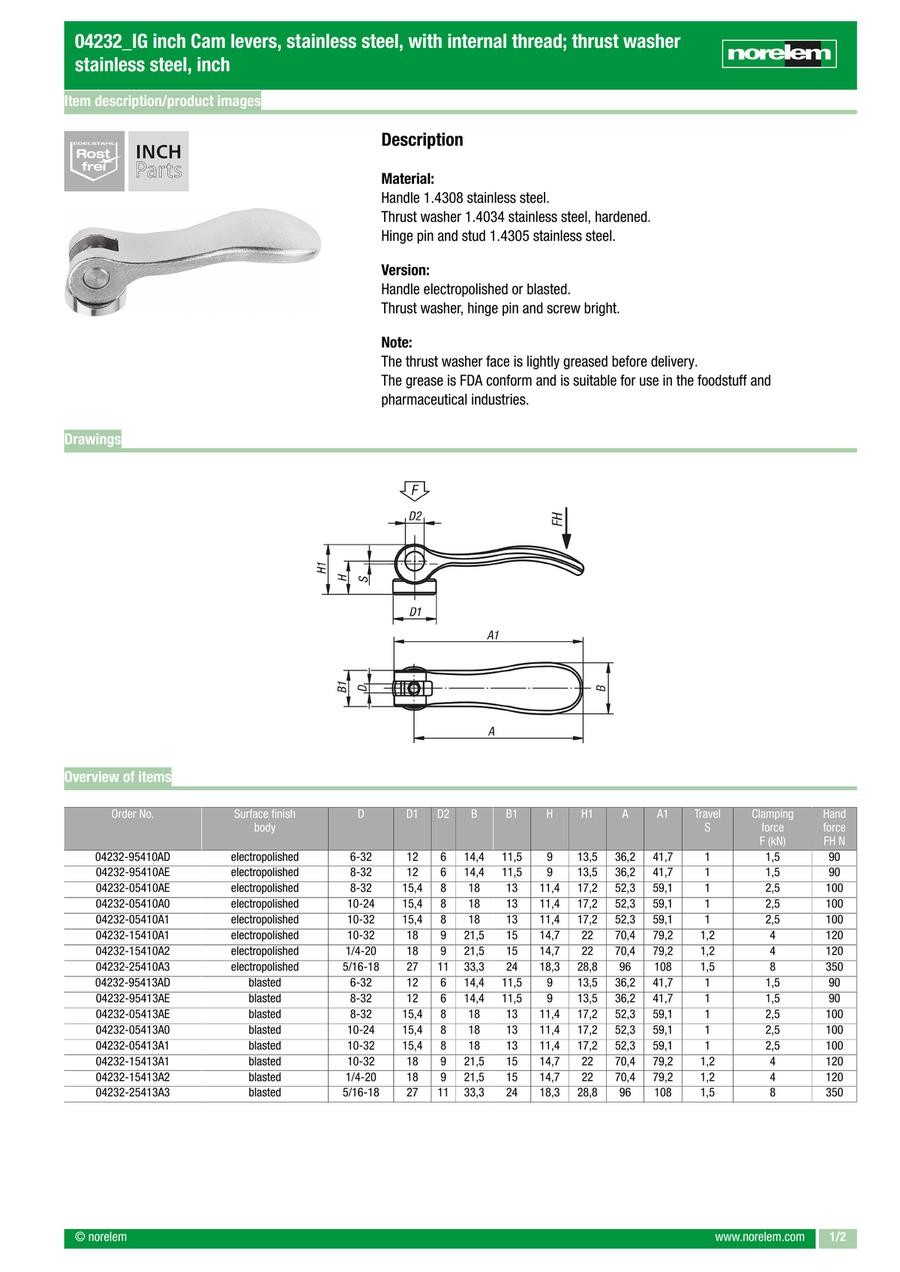

Cam levers, stainless steel, with internal thread; thrust washer stainless steel, inch (04232)

Cam levers, stainless steel, with internal thread; thrust washer stainless steel, inch (04232)

Part number:

Still undefined. 16 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    04232-05410A0
    04232-05410A1
    04232-05410AE
    04232-05413A0
    04232-05413A1
    04232-05413AE
    04232-15410A1
    04232-15410A2
    04232-15413A1
    04232-15413A2
    04232-25410A3
    04232-25413A3
    04232-95410AD
    04232-95410AE
    04232-95413AD
    04232-95413AE

    Handle length

    (mm)

    Surface finish body

    A1=Handle length

    (mm)

    B=Width

    (mm)

    B1

    (mm)

    D=Thread

    D1

    (mm)

    D2

    (mm)

    H

    (mm)

    H1=Height

    (mm)

    Size

    Travel S

    (mm)

    Clamping force F

    (kN)

    Hand force FH

    (N)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    52.3
    Electropolished
    59.1
    18
    13
    10-24
    15.4
    8
    11.4
    17.2
    0
    1
    2.5
    100
    0.0370
    1 pieces
    52.3
    Electropolished
    59.1
    18
    13
    10-32
    15.4
    8
    11.4
    17.2
    0
    1
    2.5
    100
    0.0370
    1 pieces
    52.3
    Electropolished
    59.1
    18
    13
    8-32
    15.4
    8
    11.4
    17.2
    0
    1
    2.5
    100
    0.0370
    1 pieces
    52.3
    Blasted
    59.1
    18
    13
    10-24
    15.4
    8
    11.4
    17.2
    0
    1
    2.5
    100
    0.0370
    1 pieces
    52.3
    Blasted
    59.1
    18
    13
    10-32
    15.4
    8
    11.4
    17.2
    0
    1
    2.5
    100
    0.0370
    1 pieces
    52.3
    Blasted
    59.1
    18
    13
    8-32
    15.4
    8
    11.4
    17.2
    0
    1
    2.5
    100
    0.0370
    1 pieces
    70.4
    Electropolished
    79.2
    21.5
    15
    10-32
    18
    9
    14.7
    22
    1
    1.2
    4
    120
    0.0720
    1 pieces
    70.4
    Electropolished
    79.2
    21.5
    15
    1/4-20
    18
    9
    14.7
    22
    1
    1.2
    4
    120
    0.0720
    1 pieces
    70.4
    Blasted
    79.2
    21.5
    15
    10-32
    18
    9
    14.7
    22
    1
    1.2
    4
    120
    0.0720
    1 pieces
    70.4
    Blasted
    79.2
    21.5
    15
    1/4-20
    18
    9
    14.7
    22
    1
    1.2
    4
    120
    0.0720
    1 pieces
    96
    Electropolished
    108
    33.3
    24
    5/16-18
    27
    11
    18.3
    28.8
    2
    1.5
    8
    350
    0.2380
    1 pieces
    96
    Blasted
    108
    33.3
    24
    5/16-18
    27
    11
    18.3
    28.8
    2
    1.5
    8
    350
    0.2380
    1 pieces
    36.2
    Electropolished
    41.7
    14.4
    11.5
    6-32
    12
    6
    9
    13.5
    9
    1
    1.5
    90
    0.0200
    1 pieces
    36.2
    Electropolished
    41.7
    14.4
    11.5
    8-32
    12
    6
    9
    13.5
    9
    1
    1.5
    90
    0.0200
    1 pieces
    36.2
    Blasted
    41.7
    14.4
    11.5
    6-32
    12
    6
    9
    13.5
    9
    1
    1.5
    90
    0.0200
    1 pieces
    36.2
    Blasted
    41.7
    14.4
    11.5
    8-32
    12
    6
    9
    13.5
    9
    1
    1.5
    90
    0.0200
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    24.15 €
    ( 28.74 € )
    4 working days
    24.15 €
    ( 28.74 € )
    4 working days
    24.15 €
    ( 28.74 € )
    4 working days
    21.76 €
    ( 25.89 € )
    4 working days
    21.76 €
    ( 25.89 € )
    4 working days
    21.76 €
    ( 25.89 € )
    4 working days
    28.46 €
    ( 33.87 € )
    4 working days
    28.46 €
    ( 33.87 € )
    4 working days
    25.63 €
    ( 30.50 € )
    4 working days
    25.63 €
    ( 30.50 € )
    4 working days
    39.44 €
    ( 46.93 € )
    4 working days
    35.52 €
    ( 42.27 € )
    4 working days
    22.71 €
    ( 27.02 € )
    4 working days
    22.71 €
    ( 27.02 € )
    4 working days
    20.47 €
    ( 24.36 € )
    4 working days
    20.47 €
    ( 24.36 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Cam levers can be used to clamp workpieces quickly and torque-free

    · Advantage: workpiece needs no further securing

    · Application fields: machine and assembly construction, rehabilitation and medical technology, foodstuff industry

    · No clamping force losses due possible creep tendency

    · Versions: electropolished or abrasive blasted
