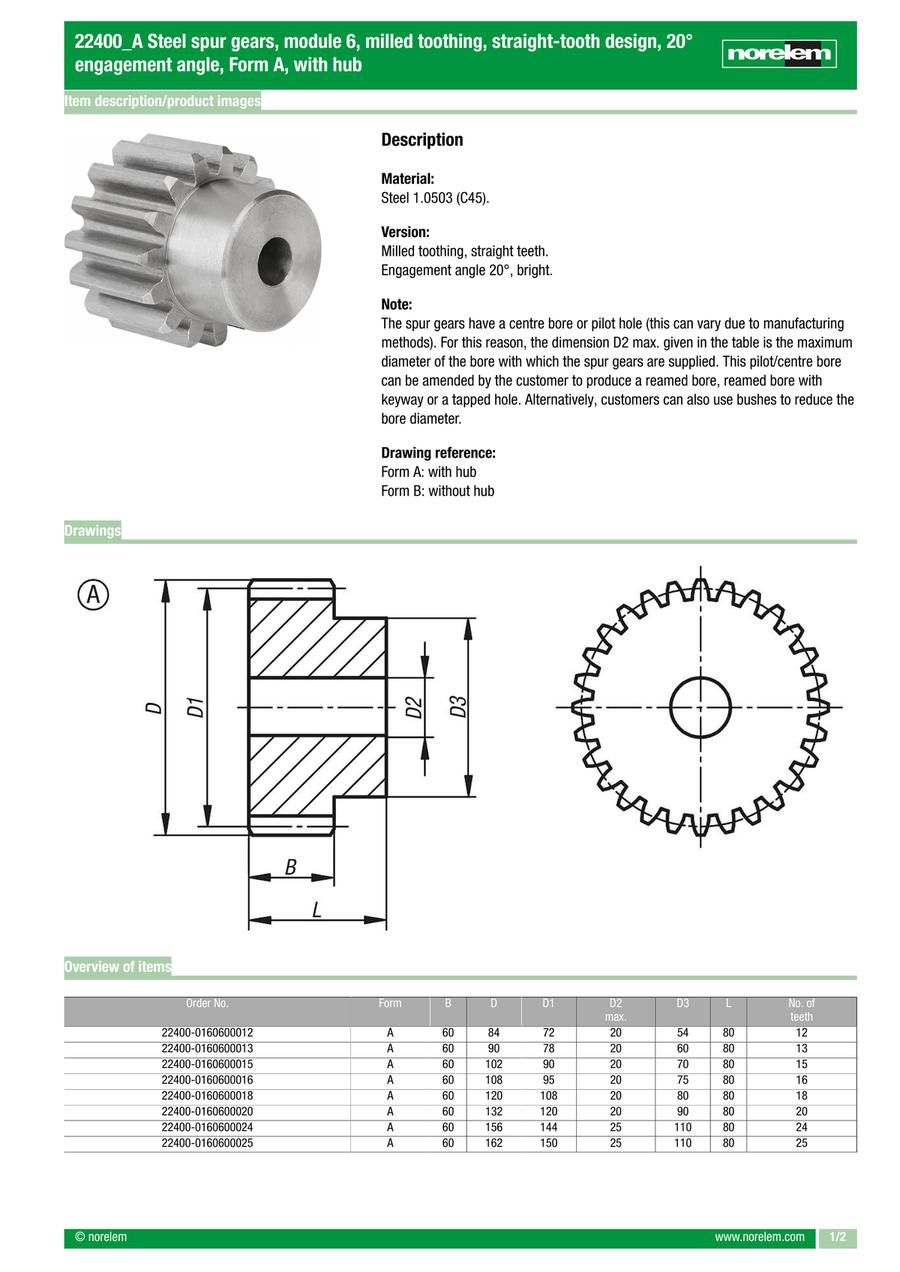

Steel spur gears, module 6, milled toothing, straight-tooth design, 20° engagement angle, Form A, with hub (22400)
· Drill hole can be machined afterward
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 22400-0160600012 |
| 22400-0160600013 |
| 22400-0160600015 |
| 22400-0160600016 |
| 22400-0160600018 |
| 22400-0160600020 |
| 22400-0160600024 |
| 22400-0160600025 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Number of Teeth (Teeth) | D2 max. (Ø) | D | D1=Pitch circle diameter (mm) | D3 (mm) | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
72.34 € | 1 | 4 Days | 12 | 20 | 84 | 72 | 54 | 6.0000 | ||
95.04 € | 1 | 4 Days | 13 | 20 | 90 | 78 | 60 | 2.3800 | ||
107.28 € | 1 | 4 Days | 15 | 20 | 102 | 90 | 70 | 3.2900 | ||
116.57 € | 1 | 4 Days | 16 | 20 | 108 | 95 | 75 | 3.8000 | ||
125.80 € | 1 | 4 Days | 18 | 20 | 120 | 108 | 80 | 4.7600 | ||
116.94 € | 1 | 4 Days | 20 | 20 | 132 | 120 | 90 | 5.9900 | ||
148.42 € | 1 | 4 Days | 24 | 25 | 156 | 144 | 110 | 8.7000 | ||
174.49 € | 1 | 4 Days | 25 | 25 | 162 | 150 | 110 | 9.3300 |
Loading...
Basic information
| Material (Details) | General Steel Material | Shape | Shape B | Tooth Width B(mm) | 60 |
|---|---|---|---|---|---|
| Item | Spur gear | Form | A | Form definition | With hub |
| Surface finish body | Bright | Version 1 | Straight | L(mm) | 80 |
| RoHS | Yes | PL Edelstahl | No |
Configure
Basic Attributes
-
Number of Teeth(Teeth)
-
D2 max.(Ø)
-
D
-
D1=Pitch circle diameter(mm)
-
D3(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
