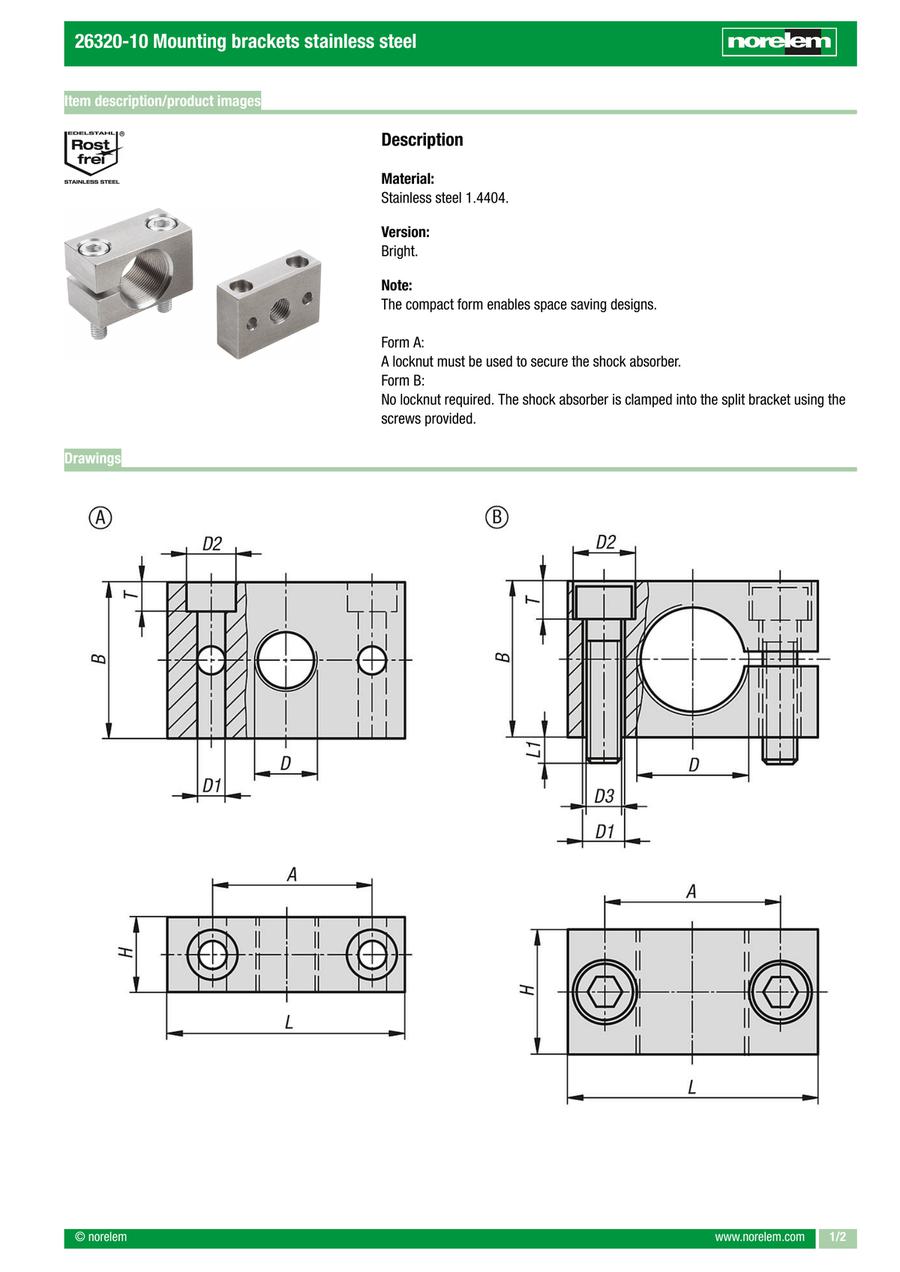

Mounting flange, stainless steel (26320)
· Ideal for space-saving constructions
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 26320-10-10100 |
| 26320-10-12100 |
| 26320-10-14100 |
| 26320-10-20100 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D1 (m/s) | D2 | B | D=Thread (Nm) | L1 | A | H=Thickness | L= length/ width | Form | T | D3 | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50.66 € | 1 | 4 Days | 4.5 | 8 | 25 | M10X1 | - | 25.4 | 12 | 38 | A | 4.5 | - | 0.0712 | ||
53.88 € | 1 | 4 Days | 4.5 | 8 | 25 | M12X1 | - | 25.4 | 12 | 38 | A | 4.5 | - | 0.0699 | ||
58.14 € | 1 | 4 Days | 5.5 | 9 | 20 | M14x1 | 5 | 20 | 12 | 32 | B | 5.5 | M5 | 0.0440 | ||
64.43 € | 1 | 4 Days | 6.5 | 11 | 25 | M20X1 | 6 | 28 | 20 | 40 | B | 6.5 | M6 | 0.1051 |
Loading...
Basic information
| Main material | stainless steel | Item | Mounting Flange | RoHS | yes |
|---|---|---|---|---|---|
| PL Edelstahl | yes |
Configure
Basic Attributes
-
D1(m/s)
-
D2
-
B
- 20
- 25
-
D=Thread(Nm)
- M10X1
- M12X1
- M14x1
- M20X1
-
L1
- 5
- 6
-
A
- 20
- 25.4
- 28
-
H=Thickness
- 12
- 20
-
L= length/ width
- 32
- 38
- 40
-
Form
- A
- B
-
T
- 4.5
- 5.5
- 6.5
-
D3
- M5
- M6
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
