Configure
- Outside diameter(Ø)
- 80
- 100
- 125
- 140
- 160
- 200
- 250
- L1(mm)
- 16
- 17
- 18
- 19
- 20
- 24
- 28
- L3=height(mm)
- 31
- 34
- 37
- 40
- 46
- 49
- D2=Fastening hole(mm)
- 0.312
- 0.375
- 0.5
- 0.625
- 0.75
- 0.875
- D3(mm)
- 26
- 30
- 31
- 34
- 40
- 50
- Fixed cylinder grip(mm)
- Est. shipping days
- All
- Within 4 working days

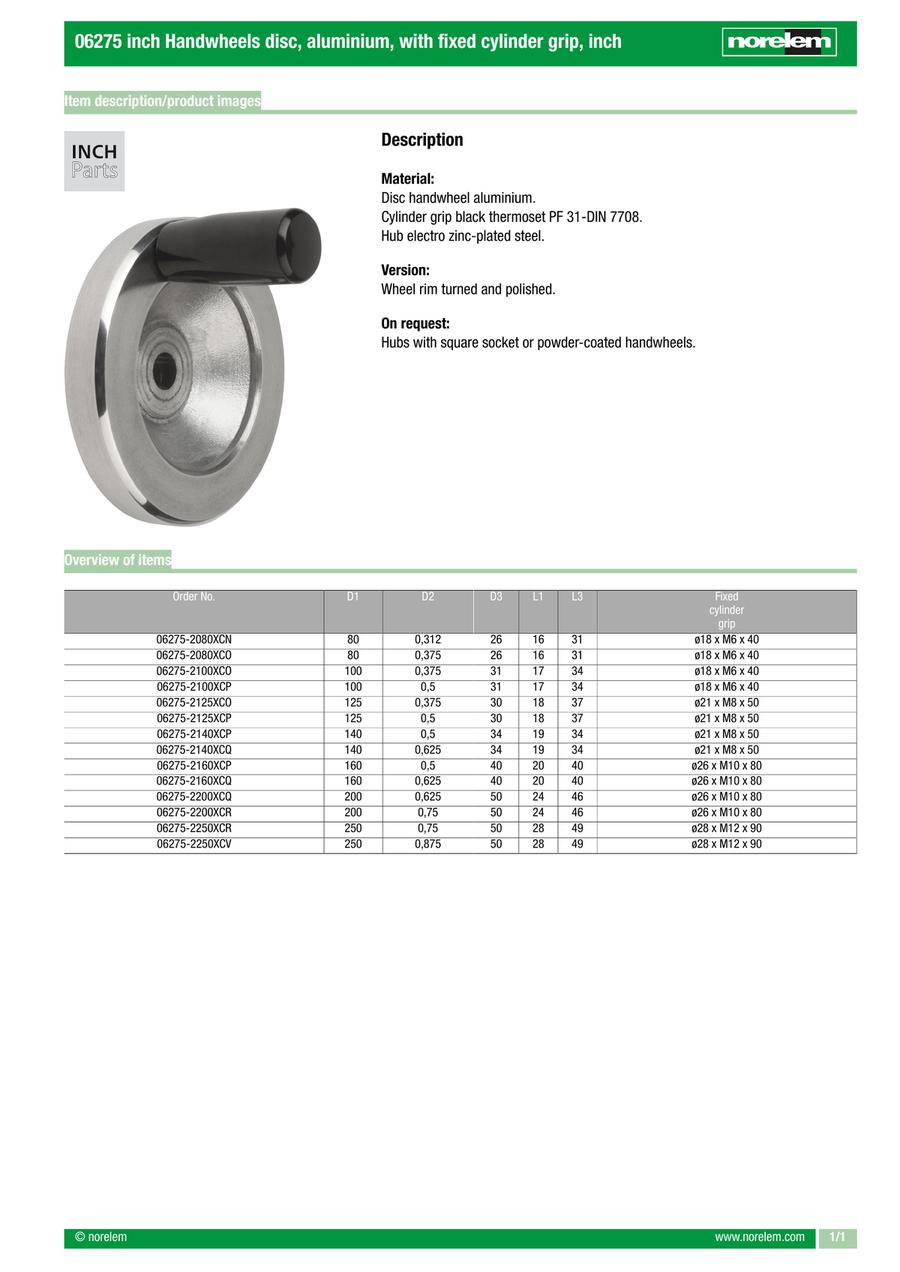

Handwheels disc, aluminium, with fixed cylinder grip, inch (06275)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
23.02 € ( 27.39 € ) | 4 working days |
23.02 € ( 27.39 € ) | 4 working days |
25.65 € ( 30.52 € ) | 4 working days |
25.65 € ( 30.52 € ) | 4 working days |
32.09 € ( 38.19 € ) | 4 working days |
32.09 € ( 38.19 € ) | 4 working days |
35.89 € ( 42.71 € ) | 4 working days |
35.89 € ( 42.71 € ) | 4 working days |
50.12 € ( 59.64 € ) | 4 working days |
50.12 € ( 59.64 € ) | 4 working days |
60.21 € ( 71.65 € ) | 4 working days |
60.21 € ( 71.65 € ) | 4 working days |
98.95 € ( 117.75 € ) | 4 working days |
98.95 € ( 117.75 € ) | 4 working days |
More Information
Basic information
· Control element for positioning and adjusting shafts and spindles
· Application sectors: machine, plant, equipment construction and measuring devices
· For opening, closing and operating valves in fittings, machine tools
· Wheel rim concentricity and axial run-out less than ISO tolerance (IT) 12
· Cylinder grip Duroplast, grip pin galvanised steel, wheel rim polished
