NORELEM

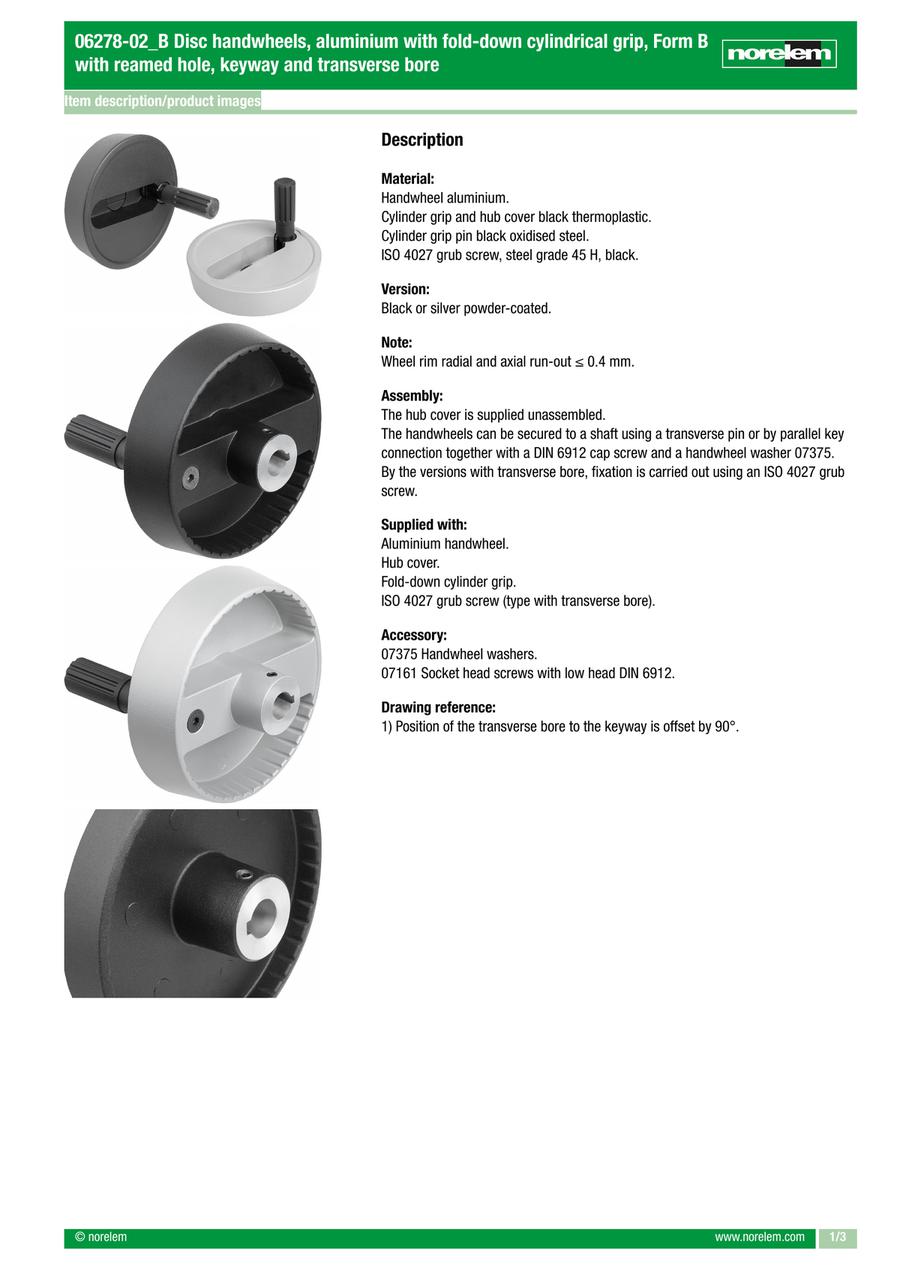

Disc handwheels, aluminium with fold-down cylindrical grip, Form B with reamed hole, keyway and transverse bore (06278-02)

Disc handwheels, aluminium with fold-down cylindrical grip, Form B with reamed hole, keyway and transverse bore (06278-02)

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06278-02-100101036
    06278-02-100102036
    06278-02-100121046
    06278-02-100122046
    06278-02-125121046
    06278-02-125122046
    06278-02-125141056
    06278-02-125142056

    Outside diameter

    (Ø)

    Main colour

    L

    (mm)

    L1

    (mm)

    L2

    (mm)

    L3=height

    (mm)

    D2=Fastening hole

    (mm)

    D3

    (mm)

    D4

    (mm)

    D5

    (mm)

    D6

    (mm)

    A

    (mm)

    B3

    (mm)

    H

    (mm)

    H2

    (mm)

    T

    (mm)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    100
    Black
    92.5
    17
    47.5
    45
    10
    28
    16
    M5
    16
    33
    3
    17.4
    5.5
    11.4
    0.3600
    1 pieces
    100
    Silver
    92.5
    17
    47.5
    45
    10
    28
    16
    M5
    16
    33
    3
    17.4
    5.5
    11.4
    0.3600
    1 pieces
    100
    Black
    92.5
    17
    47.5
    45
    12
    28
    16
    M5
    16
    33
    4
    17.4
    6.5
    13.8
    0.3600
    1 pieces
    100
    Silver
    92.5
    17
    47.5
    45
    12
    28
    16
    M5
    16
    33
    4
    17.4
    6.5
    13.8
    0.3600
    1 pieces
    125
    Black
    105.5
    18
    56.5
    49
    12
    31
    19.9
    M6
    20
    42
    4
    18.3
    6.5
    13.8
    0.5780
    1 pieces
    125
    Silver
    105.5
    18
    56.5
    49
    12
    31
    19.9
    M6
    20
    42
    4
    18.3
    6.5
    13.8
    0.5780
    1 pieces
    125
    Black
    105.5
    18
    56.5
    49
    14
    31
    19.9
    M6
    20
    42
    5
    18.3
    6.5
    16.3
    0.5780
    1 pieces
    125
    Silver
    105.5
    18
    56.5
    49
    14
    31
    19.9
    M6
    20
    42
    5
    18.3
    6.5
    16.3
    0.5780
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    49.80 €
    ( 59.26 € )
    4 working days
    49.80 €
    ( 59.26 € )
    4 working days
    49.80 €
    ( 59.26 € )
    4 working days
    49.80 €
    ( 59.26 € )
    4 working days
    53.32 €
    ( 63.45 € )
    4 working days
    53.32 €
    ( 63.45 € )
    4 working days
    53.32 €
    ( 63.45 € )
    4 working days
    53.32 €
    ( 63.45 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Modern design

    · black or silver

    · Diverse connection possibilities

    · Cylindrical Fold-Away Grip
