Configure
  • Outside diameter(Ø)
  • L1(mm)
  • L3=height(mm)
  • D2=Fastening hole(mm)
  • D3(mm)
  • D4(mm)
  • H2(mm)
  • Est. shipping days
    • All
    • Within 4 working days

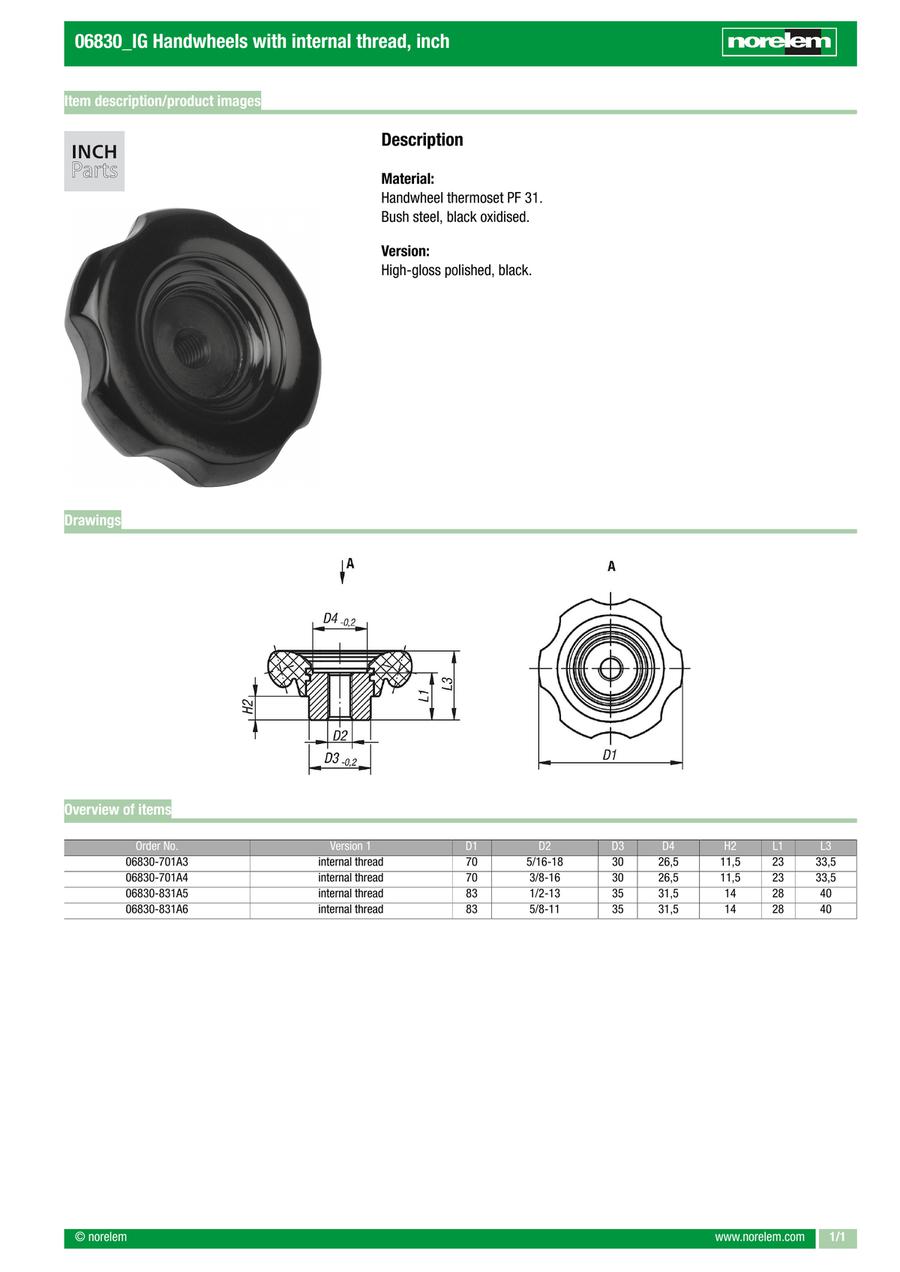

Handwheels with internal thread, inch (06830)

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items

Outside diameter

(Ø)

L1

(mm)

L3=height

(mm)

D2=Fastening hole

(mm)

D3

(mm)

D4

(mm)

H2

(mm)

Weight (ERP)

(kg)

Minimum order quantity
70
23
33.5
5/16-18
30
26.5
11.5
0.1909
1 pieces
70
23
33.5
3/8-16
30
26.5
11.5
0.1883
1 pieces
83
28
40
1/2-13
35
31.5
14
0.3149
1 pieces
83
28
40
5/8-11
35
31.5
14
0.3020
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
15.33 €
( 18.24 € )
4 working days
15.33 €
( 18.24 € )
4 working days
20.13 €
( 23.95 € )
4 working days
20.13 €
( 23.95 € )
4 working days

More Information

Basic information

· Control element for positioning and adjusting shafts and spindles

· Application sectors: machine, plant, equipment construction and measuring devices

· For opening, closing and operating valves in fittings, machine tools

· Version: internal thread

· high-gloss polished
