Configure
- Outside diameter(Ø)
- 80
- 100
- 125
- 160
- 200
- 250
- L1(mm)
- 16
- 17
- 18
- 20
- 24
- 28
- L3=height(mm)
- 28
- 33
- 33.5
- 39
- 45
- 51
- D2=Fastening hole(mm)
- 0.312
- 0.375
- 0.5
- 0.625
- 0.75
- 0.875
- D3(mm)
- 24
- 26
- 31
- 36
- 42
- 48
- Est. shipping days
- All
- Within 4 working days

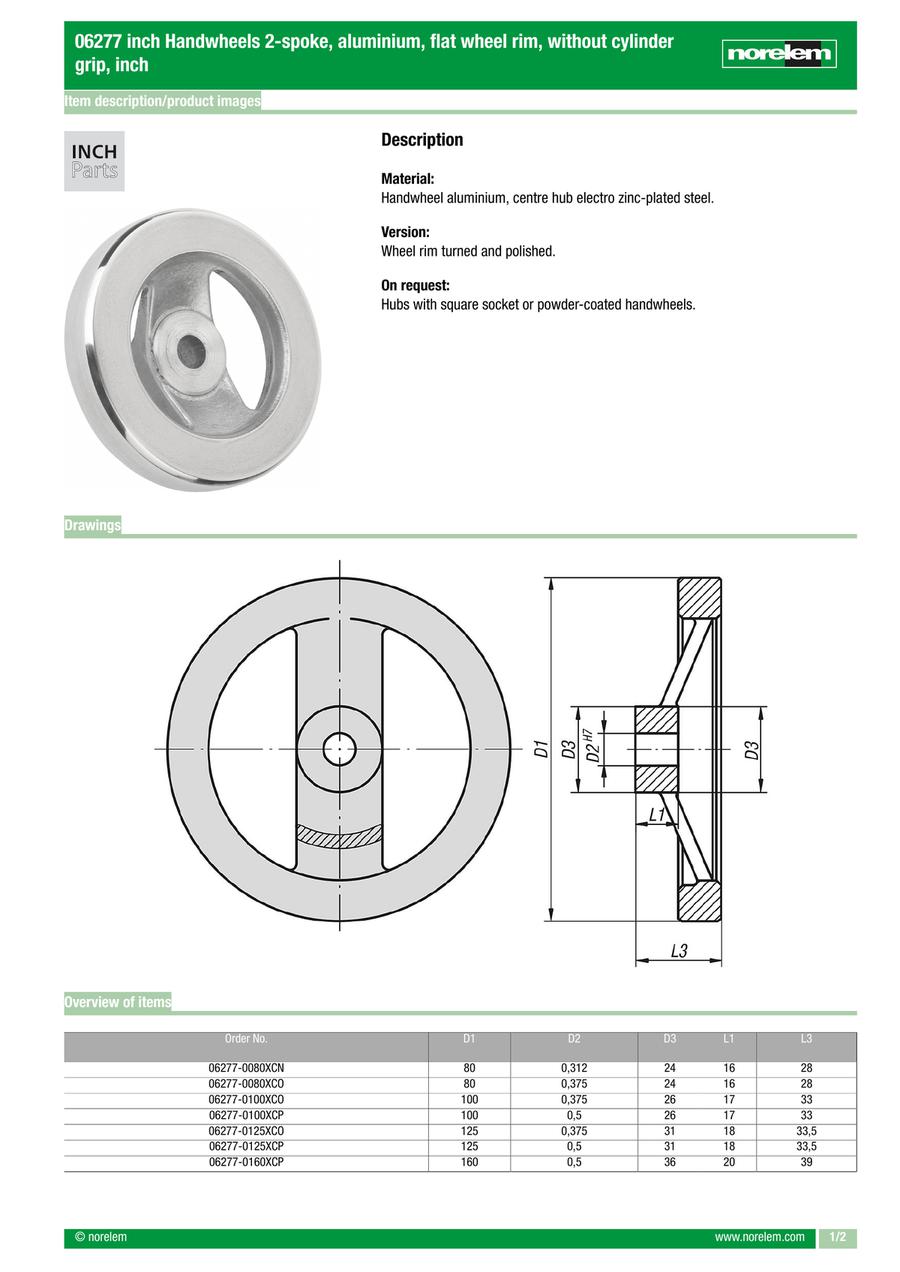

Handwheels 2-spoke, aluminium, flat wheel rim, without cylinder grip, inch (06277)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
16.28 € ( 19.37 € ) | 4 working days |
16.28 € ( 19.37 € ) | 4 working days |
19.68 € ( 23.42 € ) | 4 working days |
19.68 € ( 23.42 € ) | 4 working days |
22.78 € ( 27.11 € ) | 4 working days |
22.78 € ( 27.11 € ) | 4 working days |
29.27 € ( 34.83 € ) | 4 working days |
29.27 € ( 34.83 € ) | 4 working days |
48.51 € ( 57.73 € ) | 4 working days |
48.51 € ( 57.73 € ) | 4 working days |
76.71 € ( 91.28 € ) | 4 working days |
76.71 € ( 91.28 € ) | 4 working days |
More Information
Basic information
· Control element for positioning and adjusting shafts and spindles
· Application sectors: machine, plant, equipment construction and measuring devices
· For opening, closing and operating valves in fittings, machine tools
· Wheel rim concentricity and axial run-out less than ISO tolerance (IT) 12
