Configure
- Outside diameter(Ø)
- 100
- 125
- 140
- 160
- Size
- 1
- 2
- 3
- 4
- L1(mm)
- 29.5
- 34
- 38.5
- 41.3
- L2(mm)
- 19
- 24
- 27
- 30.1
- L3=height(mm)
- 39
- 46
- 52
- 57
- D2=Fastening hole(mm)
- 0.25
- 0.375
- 0.5
- 0.625
- 0.75
- D3(mm)
- 22
- 26
- 30
- 33
- D4(mm)
- 20
- 21
- 25
- 30
- D8(mm)
- 29
- 34
- 39
- 43
- Est. shipping days
- All
- Within 4 working days

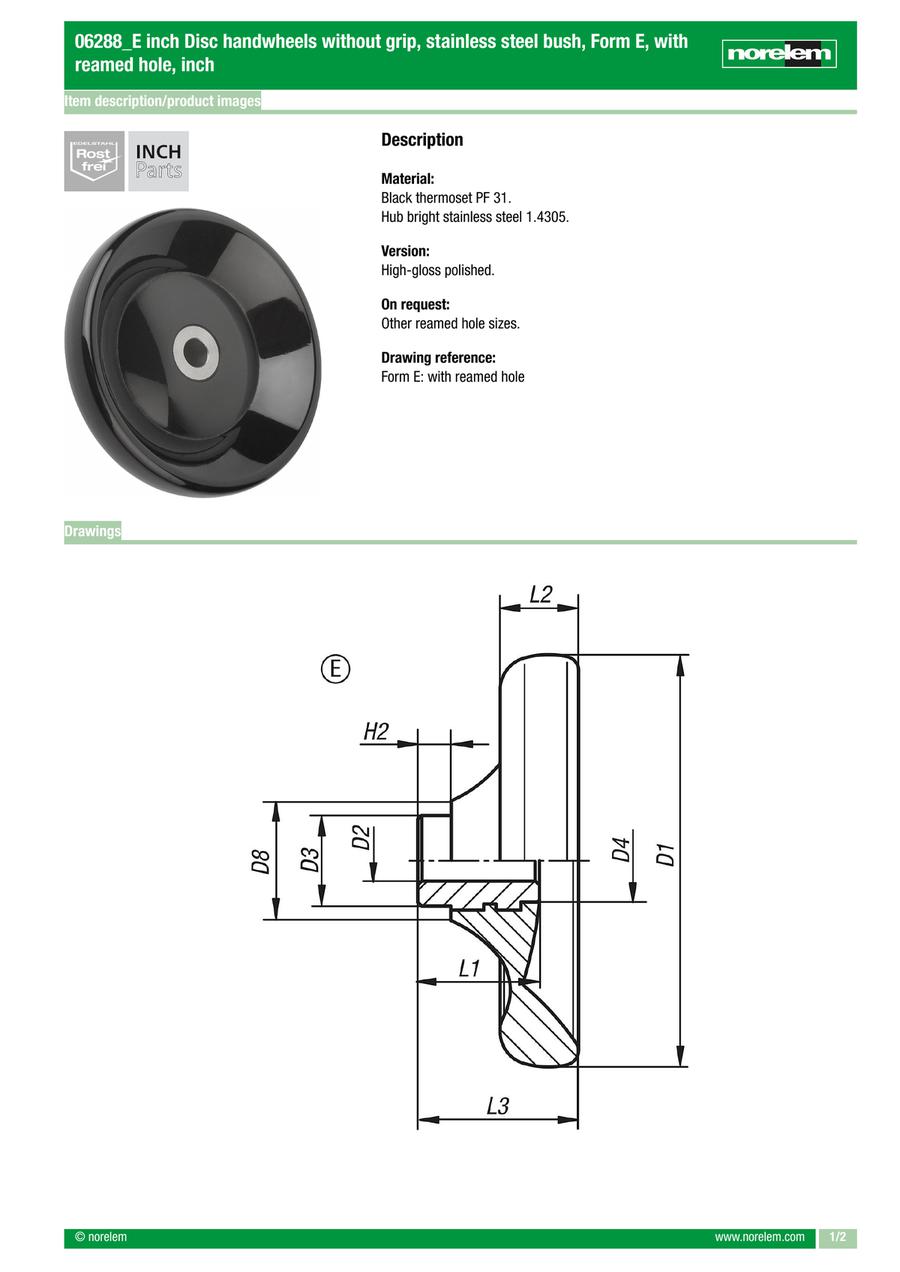

Disc handwheels without grip, stainless steel bush, Form E, with reamed hole, inch (06288)
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
49.46 € ( 58.86 € ) | 4 working days |
54.43 € ( 64.77 € ) | 4 working days |
60.73 € ( 72.27 € ) | 4 working days |
77.18 € ( 91.84 € ) | 4 working days |
77.18 € ( 91.84 € ) | 4 working days |
More Information
Basic information
· Control element for positioning and adjusting shafts and spindles
· Application sectors: machine, plant, equipment construction and measuring devices
· For opening, closing and operating valves in fittings, machine tools
· Form E: with reamed hole
· Hub, steel or stainless steel
