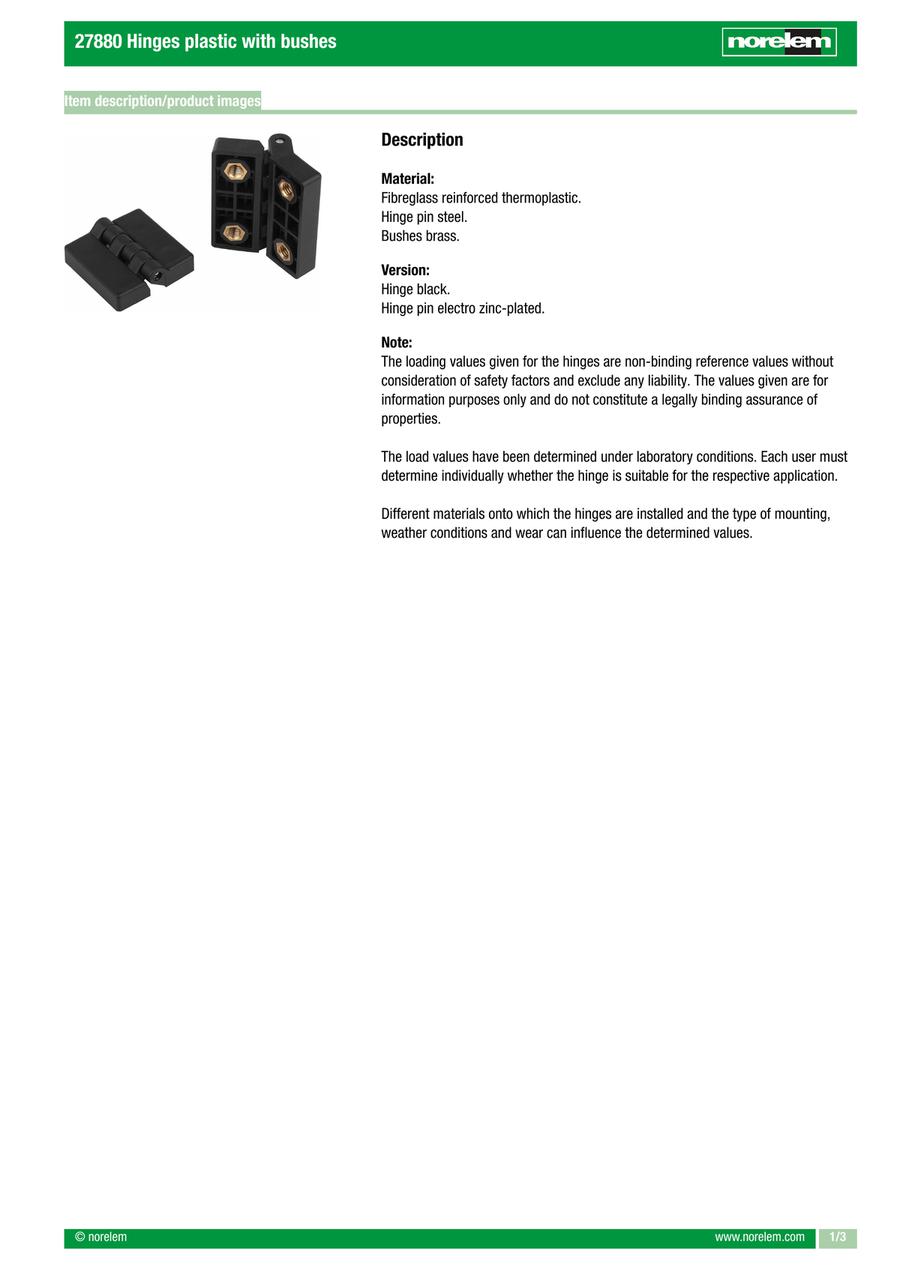

Hinges plastic with bushes (27880)
· Application sectors: machine construction, furniture construction, doors, hatches, hoods
· Centre pin steel, bush brass
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 27880-05241515 |
| 27880-06241515 |
| 27880-06322020 |
| 27880-08322020 |
| 27880-08483232 |
| 27880-10483232 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | B=Width (mm) | A=Length (mm) | A1=Hole spacing left | A2=hole spacing right | A3=Wing length left | A4=Wing length right | B2 (mm) | D1 (mm) | D2 (mm) | D3 (mm) | H (mm) | T (mm) | F1 (N) | F2 (N) | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.89 € | 1 | 4 Days | 48 | 48 | 15 | 15 | 24 | 24 | 30 | M5 | 5 | 10 | 10.5 | 7 | 2000 | 1370 | 0.0362 | ||
9.89 € | 1 | 4 Days | 48 | 48 | 15 | 15 | 24 | 24 | 30 | M6 | 5 | 10 | 10.5 | 7 | 2000 | 1370 | 0.0353 | ||
13.77 € | 1 | 4 Days | 64 | 64 | 20 | 20 | 32 | 32 | 40 | M6 | 5 | 12 | 13 | 9 | 4100 | 1800 | 0.0702 | ||
13.77 € | 1 | 4 Days | 64 | 64 | 20 | 20 | 32 | 32 | 40 | M8 | 5 | 12 | 13 | 9 | 4100 | 1800 | 0.0652 | ||
24.58 € | 1 | 4 Days | 95 | 95 | 31.5 | 31.5 | 47.5 | 47.5 | 60 | M8 | 8 | 18 | 19 | 13 | 2450 | 2650 | 0.2208 | ||
24.58 € | 1 | 4 Days | 95 | 95 | 31.5 | 31.5 | 47.5 | 47.5 | 60 | M10 | 8 | 18 | 19 | 13 | 2450 | 2650 | 0.2103 |
Loading...
Basic information
| Type | Flat Hinges | Main material | Thermoplastic | Main colour | Black |
|---|---|---|---|---|---|
| Item | Hinge | Product type | Hinge | Version 1 | With bush |
| Kind of fastening | Bushes |
Configure
Basic Attributes
-
B=Width(mm)
-
A=Length(mm)
-
A1=Hole spacing left
-
A2=hole spacing right
-
A3=Wing length left
-
A4=Wing length right
-
B2(mm)
-
D1(mm)
-
D2(mm)
- 5
- 8
-
D3(mm)
-
H(mm)
-
T(mm)
- 7
- 9
- 13
-
F1(N)
-
F2(N)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
