Configure
- B=Width(mm)
- 32
- 48
- 64
- 96
- A=Length(mm)
- 32
- 48
- 64
- 96
- A1=Hole spacing left
- 10
- 15
- 20
- 31.5
- A2=hole spacing right
- 10
- 15
- 20
- 31.5
- A3=Wing length left
- 16
- 24
- 32
- 48
- A4=Wing length right
- 16
- 24
- 32
- 48
- B2(mm)
- 20
- 30
- 40
- 60
- D1(mm)
- 4.5
- 6.5
- 8.5
- 10.5
- D2(mm)
- 3
- 5
- 8
- D3(mm)
- 7
- 10
- 12
- 16
- H(mm)
- 7
- 10.5
- 13
- 16
- F1(N)
- 1440
- 1960
- 2850
- 4300
- F2(N)
- 490
- 1470
- 1520
- 1810
- Est. shipping days
- All
- Within 4 working days

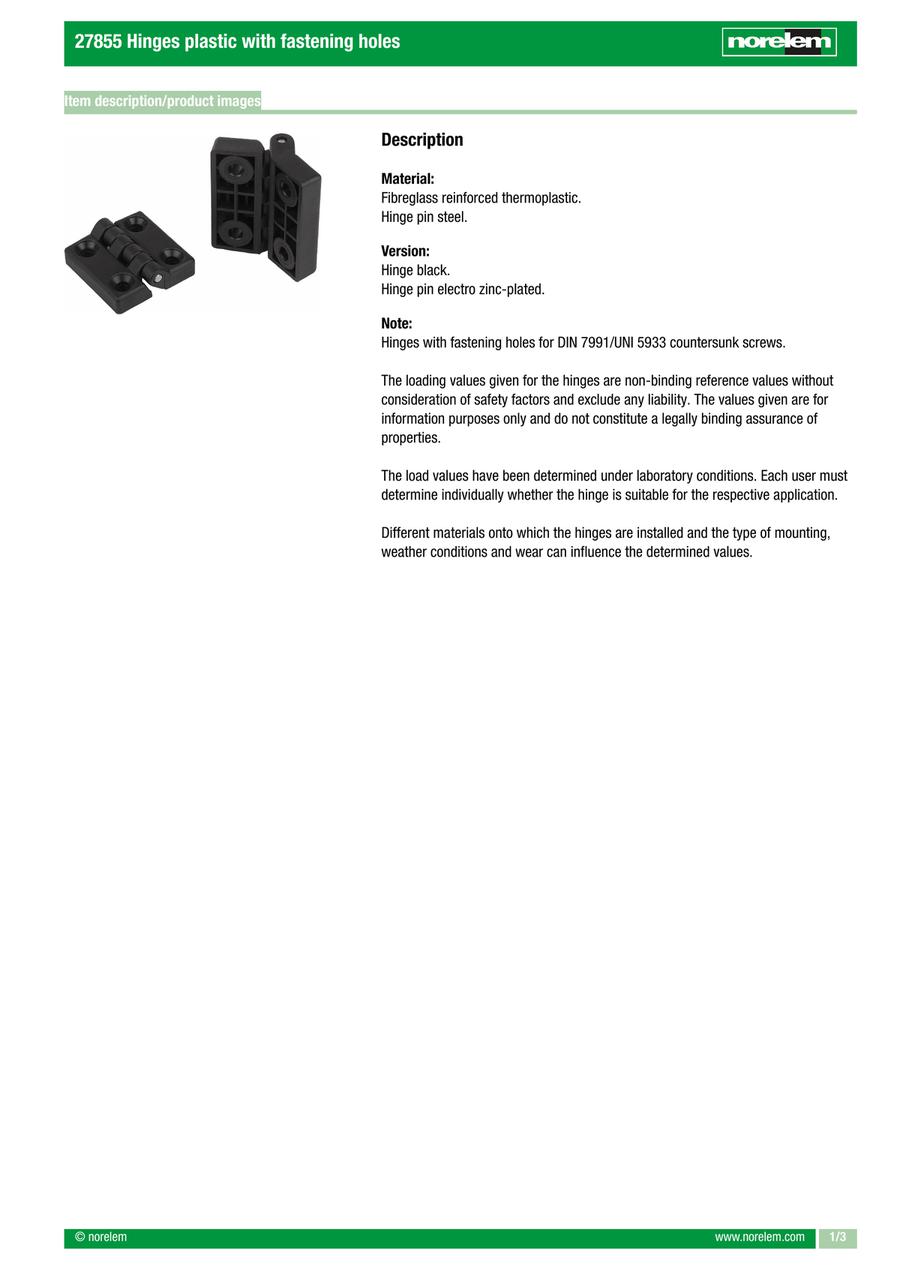

Hinges plastic with fastening holes (27855)
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
4.13 € ( 4.91 € ) | 4 working days |
6.24 € ( 7.43 € ) | 4 working days |
9.37 € ( 11.15 € ) | 4 working days |
15.95 € ( 18.98 € ) | 4 working days |
16.71 € ( 19.88 € ) | 4 working days |
More Information
Basic information
· Connect two fixed components flexibly to each other
· Application sectors: machine construction, furniture construction, doors, hatches, hoods
· Special for DIN 799 countersunk screws
· Centre pin, steel
