Configure
- Travel S(mm)
- 10
- 12
- 15
- 16
- 20
- Clamping force at 100 bar(kN)
- 1.1
- 2
- 3.1
- 4.9
- 8
- Clamping force at 400 bar(kN)
- 4.5
- 8
- 12.5
- 19.6
- 32
- D(mm)
- 6
- 7
- 8
- H(mm)
- 38
- 46.5
- 56
- 59.5
- 87
- H1(mm)
- 27
- 34
- 43
- 45.5
- 71.5
- H2(mm)
- 7
- 8
- 11
- 12
- H3(mm)
- 3
- 4
- 5
- 7
- H8(mm)
- 15
- 19
- 23
- 26.5
- 40
- H9(mm)
- 6
- 7
- 10
- 11
- H10(mm)
- 26.5
- 33.5
- 42.5
- 45
- 71
- L(mm)
- 31
- 34
- 40
- 52
- 62
- Oil requirement / 10mm travel(cm³)
- 1.13
- 2.01
- 3.14
- 4.91
- 8.04
- Piston Ø
- 12
- 16
- 20
- 25
- 32
- R(mm)
- 25
- 35
- 50
- 70
- 100
- Spring return force min.(N)
- 30
- 50
- 75
- 125
- 200
- SW(mm)
- 24
- 27
- 32
- 41
- 50
- Tightening torque max.(Nm)
- 40
- 50
- 60
- 80
- 225
- Version 1
- RoHS
- Est. shipping days
- All
- Within 4 working days

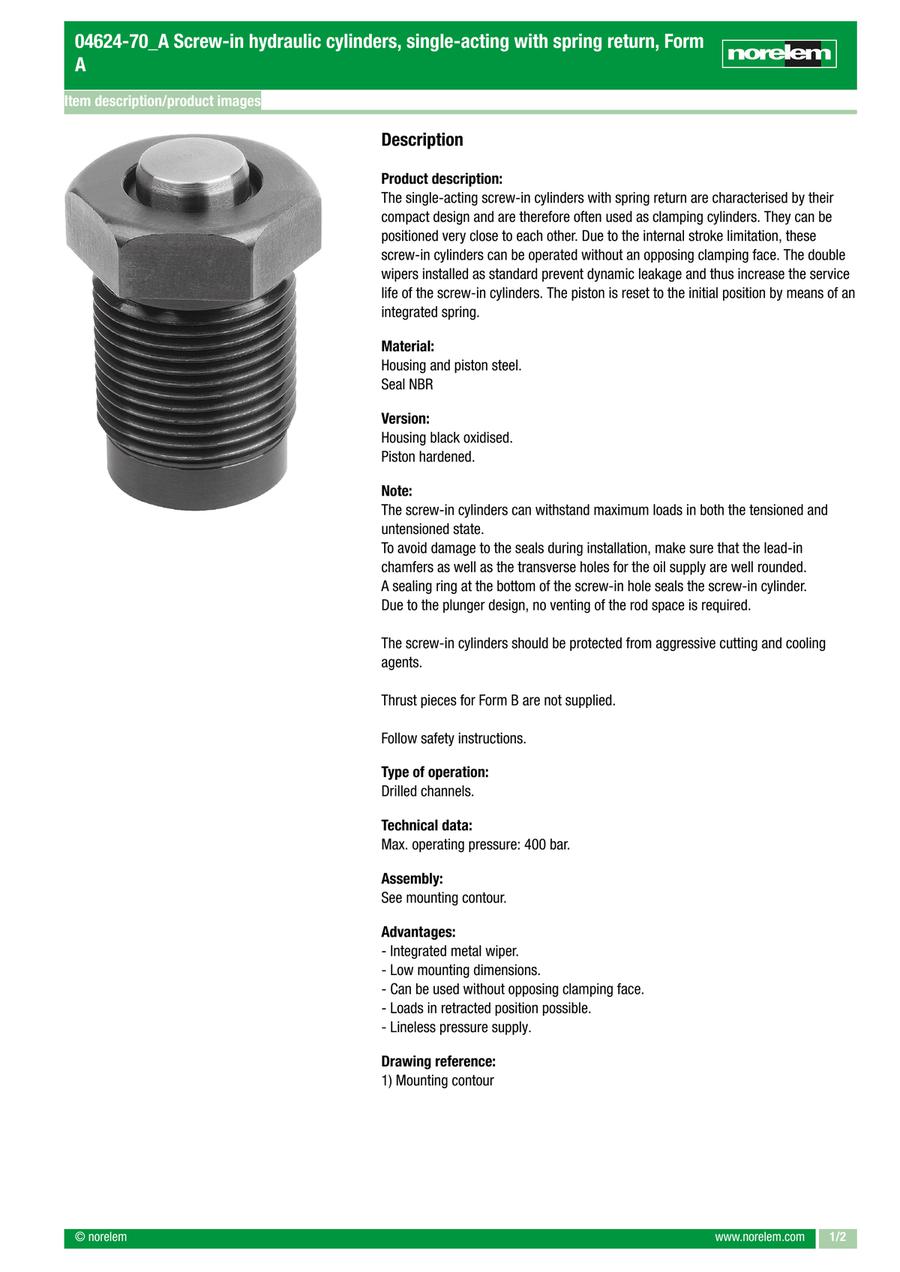

Screw-in hydraulic cylinder, single-acting with spring return, Form A (04624-70)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
78.91 € ( 93.90 € ) | 4 working days |
87.75 € ( 104.42 € ) | 4 working days |
102.16 € ( 121.57 € ) | 4 working days |
117.58 € ( 139.92 € ) | 4 working days |
209.76 € ( 249.61 € ) | 4 working days |
More Information
Basic information
· Integrated metal wiper
· Double wiper
· High load rating
