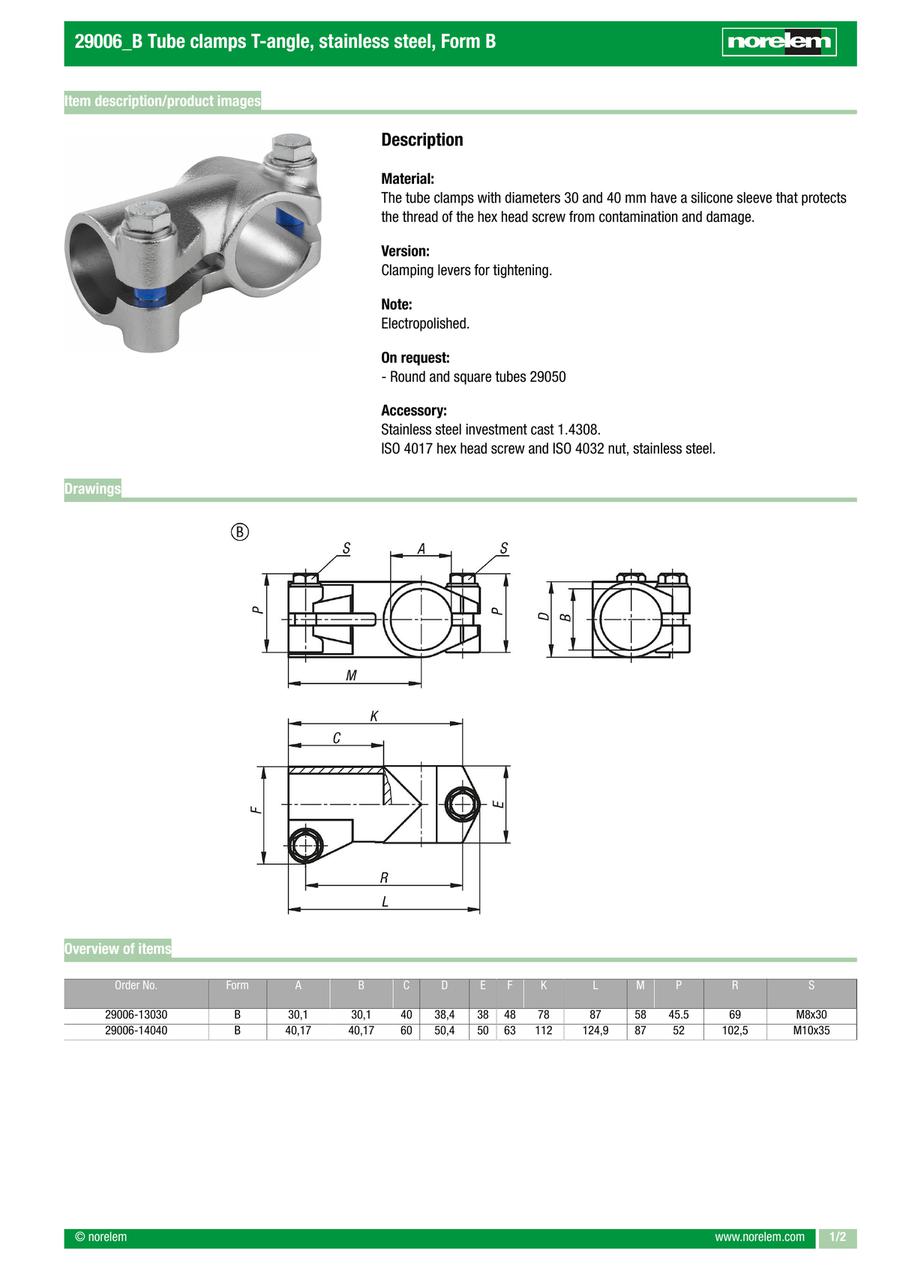

Tube clamp 3-way flat, for round tubes, form B, stainless steel (29006)
· Application sectors: machine construction, safety equipment, housings, structures
· On request: clamping levers for fastening
· Version: electropolished
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 29006-13030 |
| 29006-14040 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | L | C | D | A=Internal diameter | R | K | B=Internal diameter | S | P | E | H | M | F | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
88.79 € | 1 | 4 Days | 87 | 40 | 38.4 | 30.1 | 69 | 78 | 30.1 | M8x30 | 45.5 | 38 | 39 | 58 | 48 | 0.3974 | ||
142.76 € | 1 | 4 Days | 124.9 | 60 | 50.4 | 40.17 | 102.5 | 112 | 40.17 | M10x35 | 52 | 50 | 51.8 | 87 | 63 | 0.8401 |
Loading...
Basic information
| Main material | stainless steel | Surface finish body | electropolished | Version 2 | for round tubes |
|---|---|---|---|---|---|
| Version 1 | 3-way flat | Item | Tube Clamp | Form | B |
| RoHS | yes |
Configure
Basic Attributes
-
L
-
C
-
D
-
A=Internal diameter
-
R
-
K
-
B=Internal diameter
-
S
-
P
-
E
-
H
-
M
-
F
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
