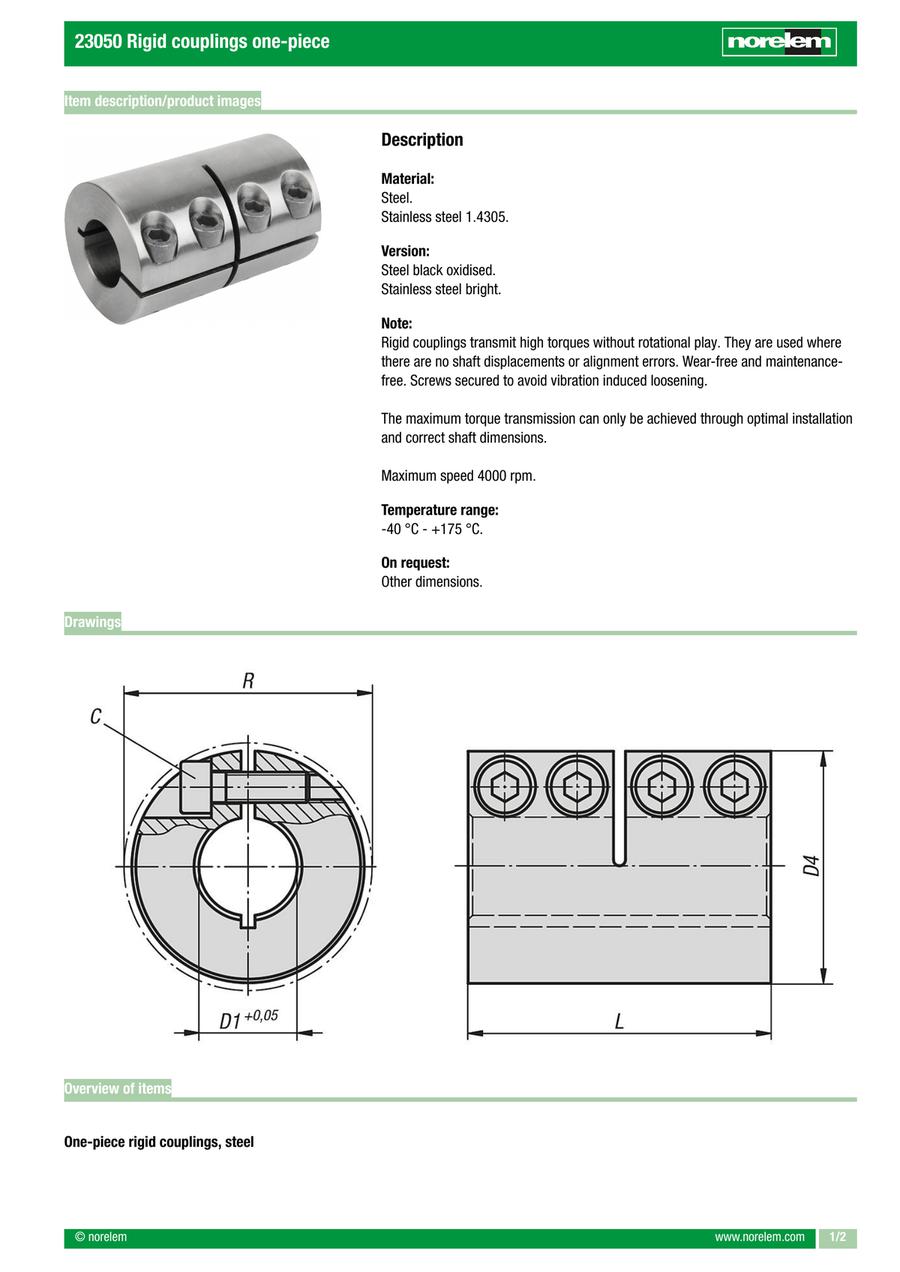

Rigid couplings one-piece (23050)
· Wear-free and maintenance-free
· Version: steel or stainless steel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (Ø) | L=Length (mm) | Body Material | Tightening torque of screws (Nm) | R (mm) | D1=Fastening hole | Nominal torque (Nm) | C (DIN 912-12.9) | C (DIN 912 A2-70) | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
32.29 € | 1 | 4 Days | 24 | 35 | Steel | 2.1 | 26.8 | 8 | 50 | M3x8 | - | 0.0973 | ||
34.91 € | 1 | 4 Days | 29 | 45 | Steel | 4.6 | 32.7 | 10 | 70 | M4x12 | - | 0.1886 | ||
34.91 € | 1 | 4 Days | 29 | 45 | Steel | 4.6 | 32.7 | 12 | 70 | M4x12 | - | 0.1807 | ||
43.37 € | 1 | 4 Days | 34 | 50 | Steel | 9.5 | 39.4 | 14 | 190 | M5x16 | - | 0.2746 | ||
43.37 € | 1 | 4 Days | 34 | 50 | Steel | 9.5 | 39.4 | 15 | 190 | M5x16 | - | 0.2639 | ||
43.37 € | 1 | 4 Days | 34 | 50 | Steel | 9.5 | 39.4 | 16 | 190 | M5x16 | - | 0.2554 | ||
47.78 € | 1 | 4 Days | 42 | 65 | Steel | 16 | 48.2 | 19 | 300 | M6x18 | - | 0.5097 | ||
47.78 € | 1 | 4 Days | 42 | 65 | Steel | 16 | 48.2 | 20 | 350 | M6x18 | - | 0.5058 | ||
57.70 € | 1 | 4 Days | 45 | 75 | Steel | 16 | 50.8 | 25 | 390 | M6x18 | - | 0.5955 | ||
69.10 € | 1 | 4 Days | 54 | 83 | Steel | 16 | 58.6 | 30 | 475 | M6x18 | - | 0.9154 | ||
94.61 € | 1 | 4 Days | 67 | 95 | Steel | 39 | 74.1 | 35 | 1100 | M8x25 | - | 1.7920 | ||
144.50 € | 1 | 4 Days | 77 | 108 | Steel | 39 | 83.4 | 40 | 1325 | M8x25 | - | 2.7100 | ||
175.30 € | 1 | 4 Days | 85 | 124 | Steel | 77 | 93.2 | 50 | 2250 | M10x25 | - | 3.3400 | ||
41.46 € | 1 | 4 Days | 24 | 35 | Stainless Steel | 1.1 | 26.8 | 8 | 16 | - | M3x8 | 0.0986 | ||
47.04 € | 1 | 4 Days | 29 | 45 | Stainless Steel | 2.5 | 32.7 | 10 | 70 | - | M4x12 | 0.1900 | ||
47.04 € | 1 | 4 Days | 29 | 45 | Stainless Steel | 2.5 | 32.7 | 12 | 70 | - | M4x12 | 0.1779 | ||
57.70 € | 1 | 4 Days | 34 | 50 | Stainless Steel | 5.4 | 39.4 | 14 | 160 | - | M5x16 | 0.2777 | ||
57.70 € | 1 | 4 Days | 34 | 50 | Stainless Steel | 5.4 | 39.4 | 15 | 160 | - | M5x16 | 0.2662 | ||
57.70 € | 1 | 4 Days | 34 | 50 | Stainless Steel | 5.4 | 39.4 | 16 | 160 | - | M5x16 | 0.2575 | ||
72.75 € | 1 | 4 Days | 42 | 65 | Stainless Steel | 9.6 | 48.2 | 19 | 260 | - | M6x18 | 0.5235 | ||
72.75 € | 1 | 4 Days | 42 | 65 | Stainless Steel | 9.6 | 48.2 | 20 | 300 | - | M6x18 | 0.5049 | ||
86.36 € | 1 | 4 Days | 45 | 75 | Stainless Steel | 9.6 | 50.8 | 25 | 325 | - | M6x18 | 0.6023 | ||
106.56 € | 1 | 4 Days | 54 | 83 | Stainless Steel | 9.6 | 58.6 | 30 | 400 | - | M6x18 | 0.9700 | ||
160.65 € | 1 | 4 Days | 67 | 95 | Stainless Steel | 23 | 74.1 | 35 | 330 | - | M8x25 | 1.8000 | ||
280.57 € | 1 | 4 Days | 77 | 108 | Stainless Steel | 23 | 83.4 | 40 | 400 | - | M8x25 | 2.7090 | ||
350.26 € | 1 | 4 Days | 85 | 124 | Stainless Steel | 46 | 93.2 | 50 | 688 | - | M10x25 | 3.3400 |
Loading...
Basic information
| Item | Rigid coupling | Version 1 | Split | RoHS | Yes |
|---|
Configure
Basic Attributes
-
Outside diameter(Ø)
-
L=Length(mm)
-
Body Material
-
Tightening torque of screws(Nm)
-
R(mm)
-
D1=Fastening hole
-
Nominal torque(Nm)
-
C (DIN 912-12.9)
- M3x8
- M4x12
- M5x16
- M6x18
- M8x25
- M10x25
-
C (DIN 912 A2-70)
- M3x8
- M4x12
- M5x16
- M6x18
- M8x25
- M10x25
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
