  • Length(m)
  • Outer diameter approx.
  • Number of fibres
  • Number of fibres per tube
  • Armouring
LAPP

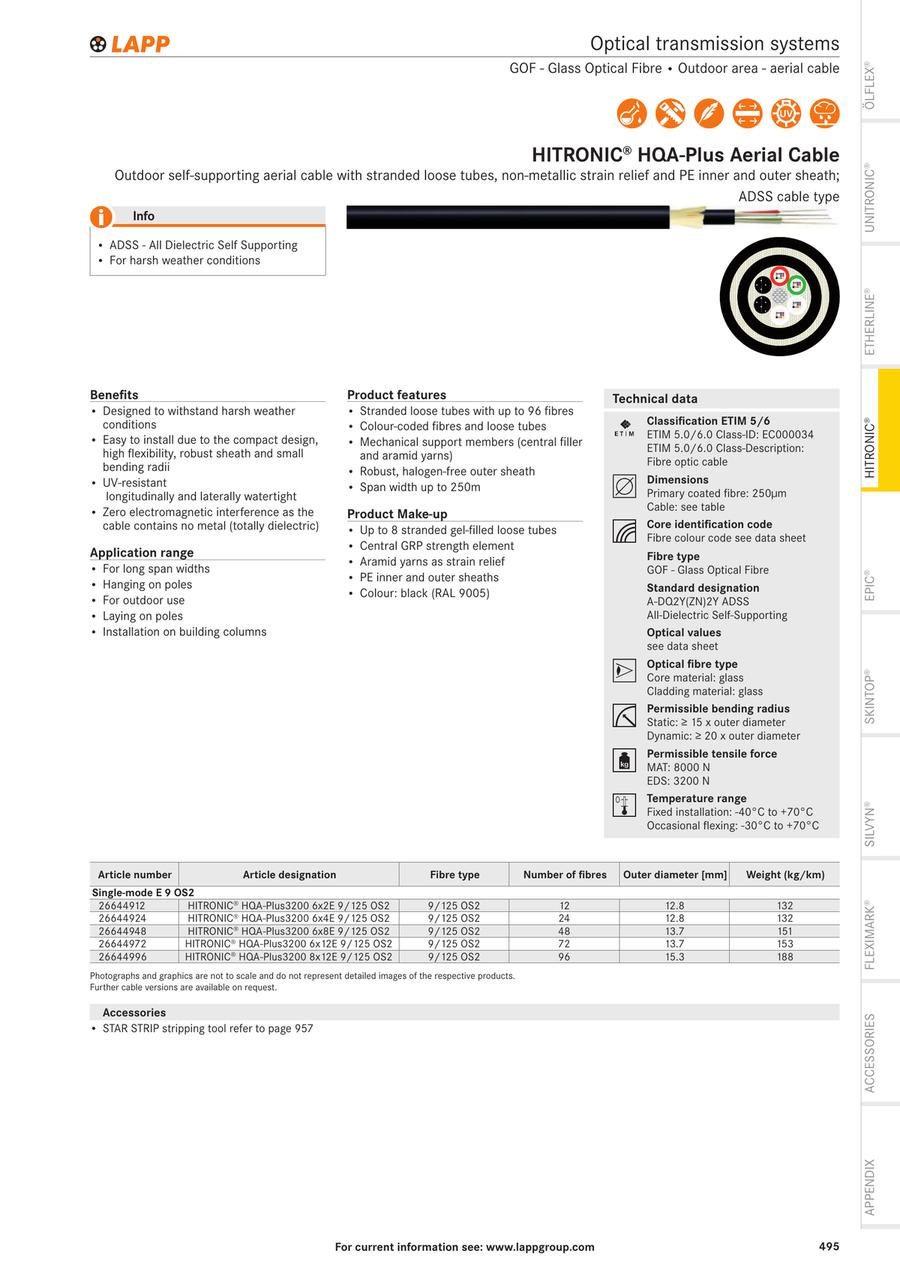

HITRONIC® HQA-Plus Aerial Cable

HITRONIC® HQA-Plus Aerial Cable

Mouse over image to enlarge

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    26644912/3200
    26644924/3200
    26644948/2100
    26644972/2100
    26644996/2100
    Related

    Length

    (m)

    Outer diameter approx.

    Number of fibres

    Number of fibres per tube

    Armouring

    		RoHS?Minimum order quantity

    Data sheet

    3200
    12,8
    12
    12
    False
    10
    1 pieces

    Data sheet

    3200
    12,8
    24
    24
    True
    10
    1 pieces

    Data sheet

    2100
    13,7
    48
    48
    True
    10
    1 pieces

    Data sheet

    2100
    13,7
    72
    72
    True
    10
    1 pieces

    Data sheet

    2100
    15,3
    96
    96
    True
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    15,314.67 €
    ( 18,224.46 € )
    52 working days
    13,170.13 €
    ( 15,672.45 € )
    51 working days
    9,171.75 €
    ( 10,914.38 € )
    51 working days
    11,631.55 €
    ( 13,841.54 € )
    47 working days
    12,829.25 €
    ( 15,266.81 € )
    51 working days
  • 1

    • More Information

    Basic information

    Benefits
    · Gel-filled central loose tube ensures longitudinal and transversal watertightness and thus optimum fibre protection
    · No electromagnetic interference from non-metallic materials is generated inside the cable
    · Easy to handle thanks to flexible and compact design
    · Halogen free product that generates no harmful gases in the event of a fire

    Application
    · The PE outer sheath is highly resistant to acids and alkaline solutions
    · Especially for outdoor use
    · Can be used in dry, damp or wet environments
