Configure

Number of pins(Pole)
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
Color
- Grey
- Orange
Contact spacing(mm)
- 5
- 5.08
- 7.5
- 7.62
Pins per row
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
Nominal voltage(V)
- 320
- 630
Product size (depth)(mm)
- 11.6
Product size (height)(mm)
- 11.6
- 14.00
- 14.20
- 16.50
- 16.74
- 21.50
- 21.82
- 22.05
- 23.25
Product size (length)(mm)
- 11.50
- 11.60
Product size (width)(mm)
- 23.25
- 26.50
- 26.9
- 29.00
- 29.44
- 31.50
- 31.98
- 36.5
- 37.06
- 41.50
- 42.14
- 44
- 44.68
- 46.50
- 47.22
- 51.5
- 52.30
- 56.50
- 57.38
- 59.92
- 61.50
- 62.46
- 66.50
- 67.54
- 71.50
- 72.62
- 74.00
- 75.16
- 76.50
- 77.70
- 81.50
- 82.78
- 86.50
- 87.86
- 89.00
- 90.40
- 92.94
- 96.50
- 98.02
- 101.50
- 103.10
- 106.50
- 108.18
- 111.50
- 113.26
- 116.50
- 118.34
- 119.00
- 123.42
Connector orientation
- Parallel (to the PCB)
- Perpendicular (to the PCB)
Est. shipping days
- All
- Within 7 working days
- Within 8 working days
- Within 25 working days
- Within 26 working days

THT female header, straight 232【10 to 100 pieces】

Click image to view enlarged image

Catalog

Part number:

Still undefined. 65 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Number of pins

(Pole)

Color

Contact spacing

(mm)

Pins per row

Nominal voltage

(V)

Product size (depth)

(mm)

Product size (height)

(mm)

Product size (length)

(mm)

Product size (width)

(mm)

Connector orientation

Minimum order quantity

Data sheet	2	Grey	5	2	320	11.6	11.6	11.50	23.25	Parallel (to the PCB)	1 packs 100 pieces
Data sheet	3	Grey	5	3	320	11.6	16.50	11.60	23.25	Parallel (to the PCB)	1 packs 100 pieces
Data sheet	4	Grey	5	4	320	11.6	21.50	11.60	23.25	Parallel (to the PCB)	1 packs 100 pieces
Data sheet	5	Grey	5	5	320	11.6	23.25	11.60	26.50	Parallel (to the PCB)	1 packs 100 pieces
Data sheet	6	Grey	5	6	320	11.6	23.25	11.60	31.50	Parallel (to the PCB)	1 packs 50 pieces
Data sheet	7	Grey	5	7	320	11.6	23.25	11.60	36.5	Parallel (to the PCB)	1 packs 50 pieces
Data sheet	8	Grey	5	8	320	11.6	23.25	11.60	41.50	Parallel (to the PCB)	1 packs 50 pieces
Data sheet	9	Grey	5	9	320	11.6	23.25	11.60	46.50	Parallel (to the PCB)	1 packs 50 pieces
Data sheet	10	Grey	5	10	320	11.6	23.25	11.60	51.5	Parallel (to the PCB)	1 packs 50 pieces
Data sheet	11	Grey	5	11	320	11.6	23.25	11.60	56.50	Parallel (to the PCB)	1 packs 25 pieces
Data sheet	12	Grey	5	12	320	11.6	23.25	11.60	61.50	Parallel (to the PCB)	1 packs 25 pieces
Data sheet	13	Grey	5	13	320	11.6	23.25	11.60	66.50	Parallel (to the PCB)	1 packs 25 pieces
Data sheet	14	Grey	5	14	320	11.6	23.25	11.60	71.50	Parallel (to the PCB)	1 packs 25 pieces
Data sheet	15	Grey	5	15	320	11.6	23.25	11.60	76.50	Parallel (to the PCB)	1 packs 25 pieces
Data sheet	17	Grey	5	17	320	11.6	23.25	11.60	86.50	Parallel (to the PCB)	1 packs 25 pieces
Data sheet	19	Grey	5	19	320	11.6	23.25	11.60	96.50	Parallel (to the PCB)	1 packs 10 pieces
Data sheet	20	Grey	5	20	320	11.6	23.25	11.60	101.50	Parallel (to the PCB)	1 packs 10 pieces
Data sheet	21	Grey	5	21	320	11.6	23.25	11.60	106.50	Parallel (to the PCB)	1 packs 10 pieces
Data sheet	22	Grey	5	22	320	11.6	23.25	11.60	111.50	Parallel (to the PCB)	1 packs 10 pieces
Data sheet	23	Grey	5	23	320	11.6	23.25	11.60	116.50	Parallel (to the PCB)	1 packs 10 pieces
Data sheet	3	Orange	5.08	3	320	11.6	16.74	11.60	23.25	Parallel (to the PCB)	1 packs 100 pieces
-	3	Orange	5.08	3	320	11.6	16.74	11.60	23.25	-	1 packs 100 pieces
Data sheet	4	Orange	5.08	4	320	11.6	21.82	11.60	23.25	Perpendicular (to the PCB)	1 packs 100 pieces
Data sheet	5	Orange	5.08	5	320	11.6	23.25	11.60	26.9	Perpendicular (to the PCB)	1 packs 100 pieces
Data sheet	6	Orange	5.08	6	320	11.6	23.25	11.60	31.98	Perpendicular (to the PCB)	1 packs 50 pieces
Data sheet	7	Orange	5.08	7	320	11.6	23.25	11.60	37.06	Perpendicular (to the PCB)	1 packs 50 pieces
Data sheet	8	Orange	5.08	8	320	11.6	23.25	11.60	42.14	Perpendicular (to the PCB)	1 packs 50 pieces
Data sheet	9	Orange	5.08	9	320	11.6	23.25	11.60	47.22	Perpendicular (to the PCB)	1 packs 50 pieces
Data sheet	10	Orange	5.08	10	320	11.6	23.25	11.60	52.30	Perpendicular (to the PCB)	1 packs 50 pieces
Data sheet	11	Orange	5.08	11	320	11.6	23.25	11.60	57.38	Perpendicular (to the PCB)	1 packs 25 pieces
Data sheet	12	Orange	5.08	12	320	11.6	23.25	11.60	62.46	Perpendicular (to the PCB)	1 packs 25 pieces
Data sheet	13	Orange	5.08	13	320	11.6	23.25	11.60	67.54	Perpendicular (to the PCB)	1 packs 25 pieces
Data sheet	14	Orange	5.08	14	320	11.6	23.25	11.60	72.62	Perpendicular (to the PCB)	1 packs 25 pieces
Data sheet	15	Orange	5.08	15	320	11.6	23.25	11.60	77.70	Perpendicular (to the PCB)	1 packs 25 pieces
Data sheet	16	Orange	5.08	16	320	11.6	23.25	11.60	82.78	Perpendicular (to the PCB)	1 packs 25 pieces
Data sheet	17	Orange	5.08	17	320	11.6	23.25	11.60	87.86	Perpendicular (to the PCB)	1 packs 25 pieces
Data sheet	18	Orange	5.08	18	320	11.6	23.25	11.60	92.94	Perpendicular (to the PCB)	1 packs 25 pieces
Data sheet	19	Orange	5.08	19	320	11.6	23.25	11.60	98.02	Perpendicular (to the PCB)	1 packs 10 pieces
Data sheet	20	Orange	5.08	20	320	11.6	23.25	11.60	103.10	Perpendicular (to the PCB)	1 packs 10 pieces
Data sheet	21	Orange	5.08	21	320	11.6	23.25	11.60	108.18	Perpendicular (to the PCB)	1 packs 10 pieces
Data sheet	22	Orange	5.08	22	320	11.6	23.25	11.60	113.26	Perpendicular (to the PCB)	1 packs 10 pieces
Data sheet	23	Orange	5.08	23	320	11.6	23.25	11.60	118.34	Perpendicular (to the PCB)	1 packs 10 pieces
Data sheet	24	Orange	5.08	24	320	11.6	23.25	11.60	123.42	Perpendicular (to the PCB)	1 packs 10 pieces
Data sheet	2	Grey	7.5	2	630	11.6	14.00	11.60	23.25	Perpendicular (to the PCB)	1 packs 100 pieces
Data sheet	3	Grey	7.5	3	630	11.6	21.50	11.60	23.25	Perpendicular (to the PCB)	1 packs 100 pieces
Data sheet	4	Grey	7.5	4	630	11.6	23.25	11.60	29.00	Perpendicular (to the PCB)	1 packs 50 pieces
Data sheet	5	Grey	7.5	5	630	11.6	23.25	11.60	36.5	Perpendicular (to the PCB)	1 packs 50 pieces
Data sheet	6	Grey	7.5	6	630	11.6	23.25	11.60	44	Perpendicular (to the PCB)	1 packs 50 pieces
Data sheet	10	Grey	7.5	10	630	11.6	23.25	11.60	74.00	Perpendicular (to the PCB)	1 packs 25 pieces
Data sheet	11	Grey	7.5	11	630	-	23.25	11.60	81.50	Perpendicular (to the PCB)	1 packs 25 pieces
Data sheet	12	Grey	7.5	12	630	11.6	23.25	11.60	89.00	Perpendicular (to the PCB)	1 packs 25 pieces
Data sheet	13	Grey	7.5	13	630	-	23.25	11.60	96.50	Perpendicular (to the PCB)	1 packs 10 pieces
Data sheet	13	Grey	7.5	13	630	-	22.05	11.60	96.50	Perpendicular (to the PCB)	1 packs 10 pieces
Data sheet	16	Grey	7.5	16	630	-	23.25	11.60	119.00	Perpendicular (to the PCB)	1 packs 10 pieces
Data sheet	2	Orange	7.62	2	630	11.6	14.20	11.60	23.25	Perpendicular (to the PCB)	1 packs 100 pieces
Data sheet	3	Orange	7.62	3	630	11.6	21.82	11.60	23.25	Perpendicular (to the PCB)	1 packs 100 pieces
Data sheet	4	Orange	7.62	4	630	11.6	23.25	11.60	29.44	Perpendicular (to the PCB)	1 packs 50 pieces
Data sheet	5	Orange	7.62	5	630	11.6	23.25	11.60	37.06	Perpendicular (to the PCB)	1 packs 50 pieces
Data sheet	6	Orange	7.62	6	630	-	23.25	11.60	44.68	Perpendicular (to the PCB)	1 packs 50 pieces
Data sheet	7	Orange	7.62	7	630	11.6	23.25	11.60	52.30	Perpendicular (to the PCB)	1 packs 50 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

180.36 € ( 214.63 € )	8 working days
207.68 € ( 247.14 € )	8 working days
262.35 € ( 312.20 € )	8 working days
311.55 € ( 370.74 € )	7 working days
191.29 € ( 227.64 € )	8 working days
207.68 € ( 247.14 € )	8 working days
235.01 € ( 279.66 € )	8 working days
262.35 € ( 312.20 € )	8 working days
289.68 € ( 344.72 € )	26 working days
196.75 € ( 234.13 € )	25 working days
213.16 € ( 253.66 € )	8 working days
191.29 € ( 227.64 € )	26 working days
196.75 € ( 234.13 € )	8 working days
213.16 € ( 253.66 € )	26 working days
240.48 € ( 286.17 € )	8 working days
136.17 € ( 162.04 € )	8 working days
141.61 € ( 168.52 € )	26 working days
125.27 € ( 149.07 € )	26 working days
130.71 € ( 155.54 € )	8 working days
136.17 € ( 162.04 € )	26 working days
207.68 € ( 247.14 € )	8 working days
202.21 € ( 240.63 € )	26 working days
262.35 € ( 312.20 € )	8 working days
311.55 € ( 370.74 € )	26 working days
191.29 € ( 227.64 € )	8 working days
207.68 € ( 247.14 € )	8 working days
235.01 € ( 279.66 € )	8 working days
262.35 € ( 312.20 € )	8 working days
289.68 € ( 344.72 € )	8 working days
196.75 € ( 234.13 € )	26 working days
213.16 € ( 253.66 € )	8 working days
191.29 € ( 227.64 € )	26 working days
196.75 € ( 234.13 € )	8 working days
213.16 € ( 253.66 € )	8 working days
224.08 € ( 266.66 € )	8 working days
240.48 € ( 286.17 € )	26 working days
251.40 € ( 299.17 € )	26 working days
136.17 € ( 162.04 € )	26 working days
141.61 € ( 168.52 € )	26 working days
125.27 € ( 149.07 € )	26 working days
130.71 € ( 155.54 € )	26 working days
136.17 € ( 162.04 € )	8 working days
169.43 € ( 201.62 € )	8 working days
163.96 € ( 195.11 € )	8 working days
224.08 € ( 266.66 € )	8 working days
169.43 € ( 201.62 € )	8 working days
202.21 € ( 240.63 € )	8 working days
202.21 € ( 240.63 € )	26 working days
163.96 € ( 195.11 € )	8 working days
207.68 € ( 247.14 € )	26 working days
185.83 € ( 221.14 € )	8 working days
98.04 € ( 116.67 € )	26 working days
98.04 € ( 116.67 € )	26 working days
102.39 € ( 121.84 € )	8 working days
163.96 € ( 195.11 € )	26 working days
224.08 € ( 266.66 € )	8 working days
169.43 € ( 201.62 € )	8 working days
202.21 € ( 240.63 € )	26 working days
202.21 € ( 240.63 € )	26 working days
224.08 € ( 266.66 € )	25 working days

Products homepage

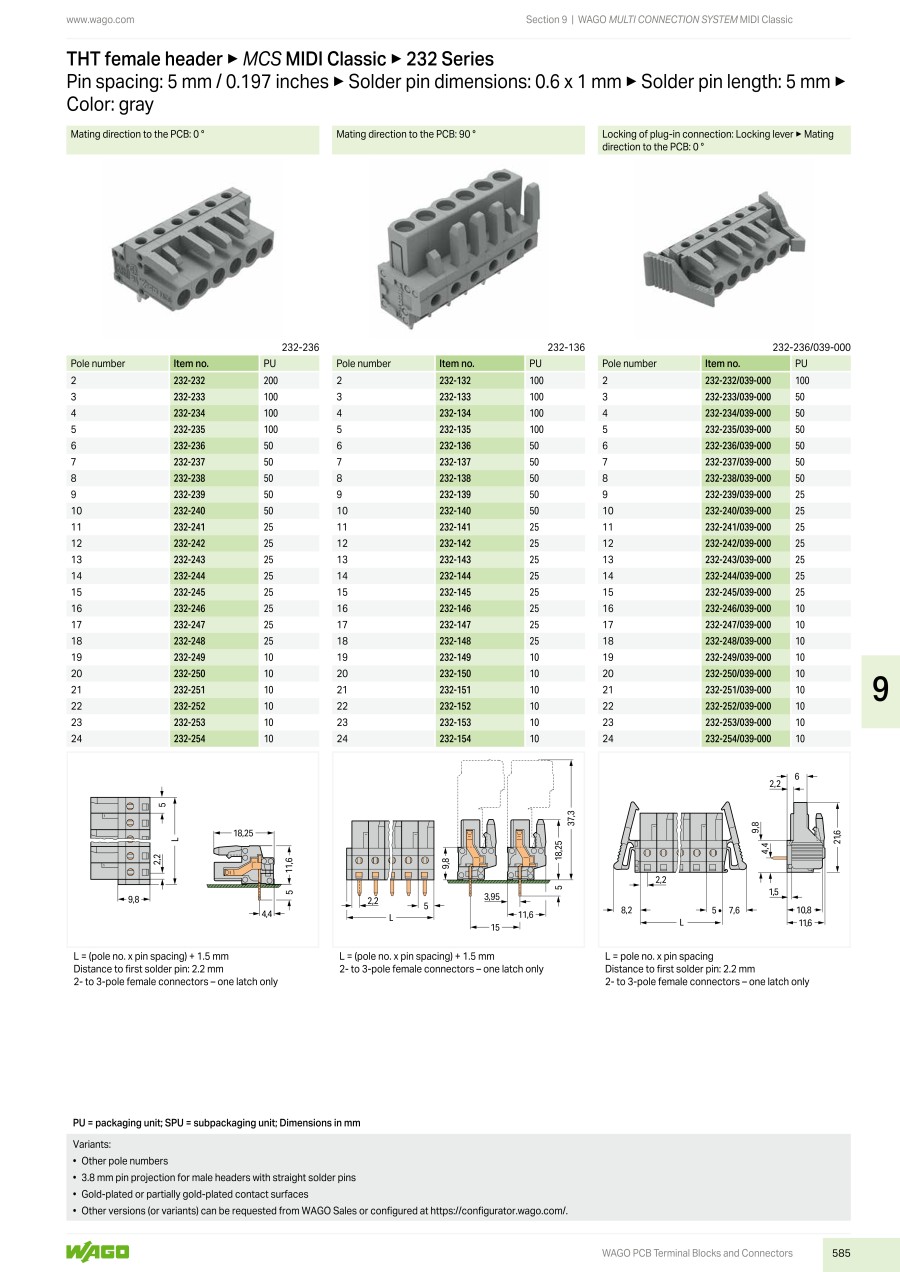

Catalog (2-page spread)
