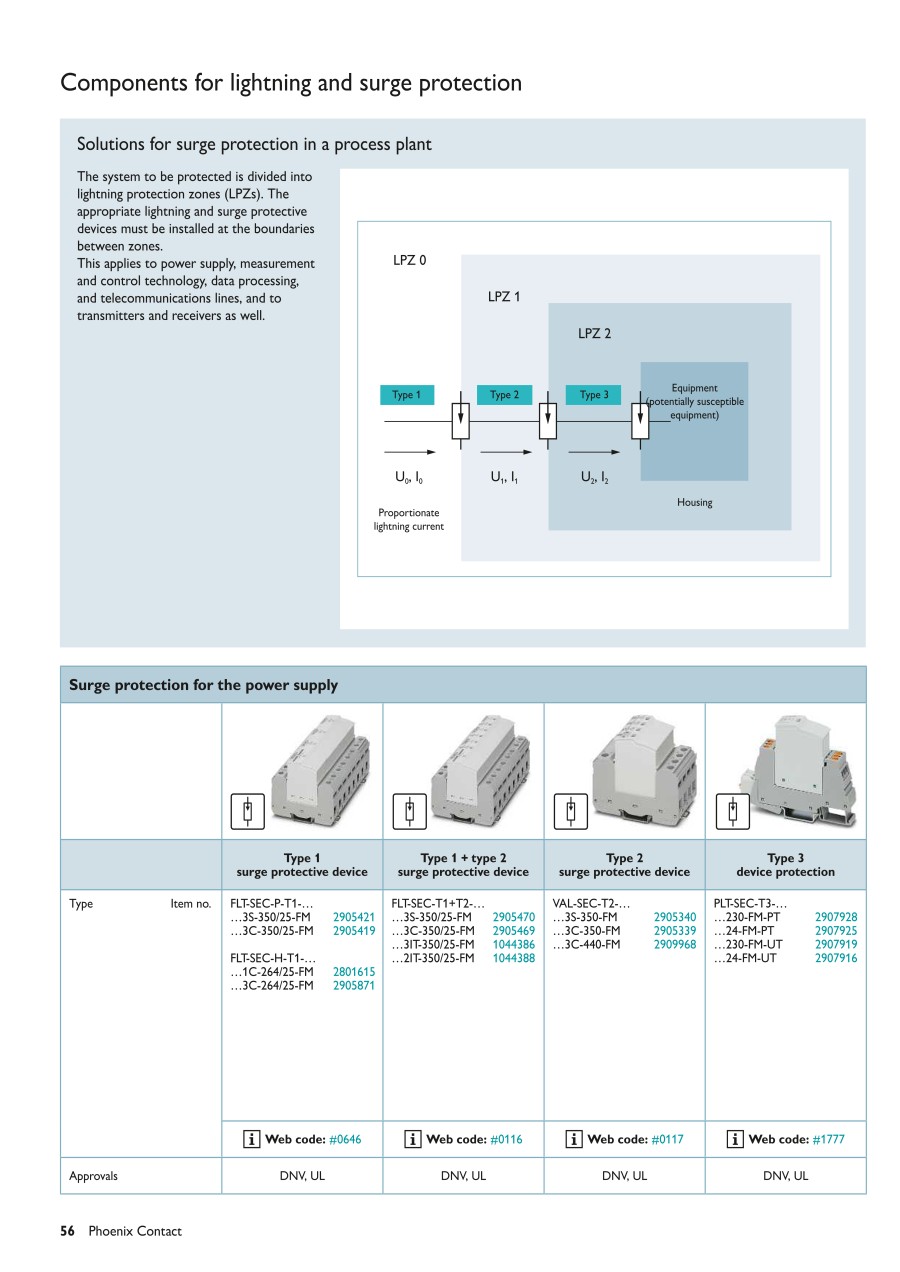

Type 3 surge protection device, PLT-SEC
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 2907916 |
| 2907917 |
| 2907925 |
| 2907926 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Voltage protection level (kV) | Max. continuous voltage AC (V) | Total discharge current (8/20) (L+N-PE) (kA) | Nominal discharge surge current (8/20) (L-N) (kA) | Nominal voltage AC (V) | Voltage protection level L-N (kV) | Voltage protection level L-PE/N-PE (kV) | Max. continuous voltage DC (V) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
128.70 € | 5 | 7 Days | 0.2 | 34 | 1 | 1 | 24 | 0.2 | 0.6 | 44 | |||
128.70 € | 5 | 7 Days | 0.48 | 80 | 2 | 2 | 60 | 0.48 | 0.8 | 80 | |||
128.70 € | 5 | 7 Days | 0.2 | 34 | 1 | 1 | 24 | 0.2 | 0.6 | 44 | |||
128.70 € | 5 | 7 Days | 0.48 | 80 | 2 | 2 | 60 | 0.48 | 0.8 | 80 |
Loading...
Basic information
| Mounting method | DIN rail (top hat rail) 35 mm | With remote signalling contact | true | Number of poles | 2 |
|---|---|---|---|---|---|
| Nominal load current(A) | 26 | Nominal voltage DC(V) | - | Category type 3 | true |
| Signalling at the device | Optic | Degree of protection (IP) | - | With interference suppressor filter | false |
| Max. conductor cross section solid (solid, stranded)(mm²) | 4 | Max. conductor cross section flexible (fine-strand)(mm²) | 2.5 | Total discharge current (8/20) (L1+L2+L3+N-PE)(kA) | - |
Configure
Basic Attributes
-
Voltage protection level(kV)
-
Max. continuous voltage AC(V)
-
Total discharge current (8/20) (L+N-PE)(kA)
-
Nominal discharge surge current (8/20) (L-N)(kA)
-
Nominal voltage AC(V)
-
Voltage protection level L-N(kV)
-
Voltage protection level L-PE/N-PE(kV)
-
Max. continuous voltage DC(V)
-
Type
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
