MSB230 MUGEN-COATING 2-Flute Ball End Mill

Configure

Stock
Show stock items only

R Size(mm)

0.05
0.075
0.1
0.15
0.2
0.25
0.3
0.35
0.4
0.45
0.5
0.55
0.6
0.65
0.7
0.75
0.8
0.85
0.9
0.95
1
1.05
1.15
1.2
1.25
1.3
1.35
1.4
1.45
1.5
1.55
1.6
1.65
1.7
1.75
1.8
1.85
1.9
1.95
2
2.05
2.1
2.15
2.2
2.25
2.3
2.35
2.4
2.45
2.5
2.55
2.6
2.65
2.7
2.75
2.8
2.85
2.9
2.95
3
3.5
4
4.5
5
5.5
6

Blade length (ℓ)(mm)

0.1
0.15
0.2
0.3
0.6
0.8
0.9
1.1
1.2
1.4
1.5
1.7
1.8
2
2.1
2.3
2.4
2.6
2.7
2.9
3
3.2
3.5
3.6
3.8
3.9
4.1
4.2
4.4
5
5.1
5.3
5.4
5.6
5.7
5.9
6
6.2
6.3
6.5
6.6
6.8
6.9
7.1
7.2
7.4
8
8.1
8.3
8.4
8.6
8.7
8.9
10
10.5
12
13.5
15
16.5
20

Overall Length (L)(mm)

Shank diameter (d)(mm)

R Precision(μm)

Manufacturer Code

Type

MSB230

Est. shipping days

All
Same-day shipping possible
Within 6 working days
Within 8 working days
Within 10 working days

NS TOOL

MSB230 MUGEN-COATING 2-Flute Ball End Mill

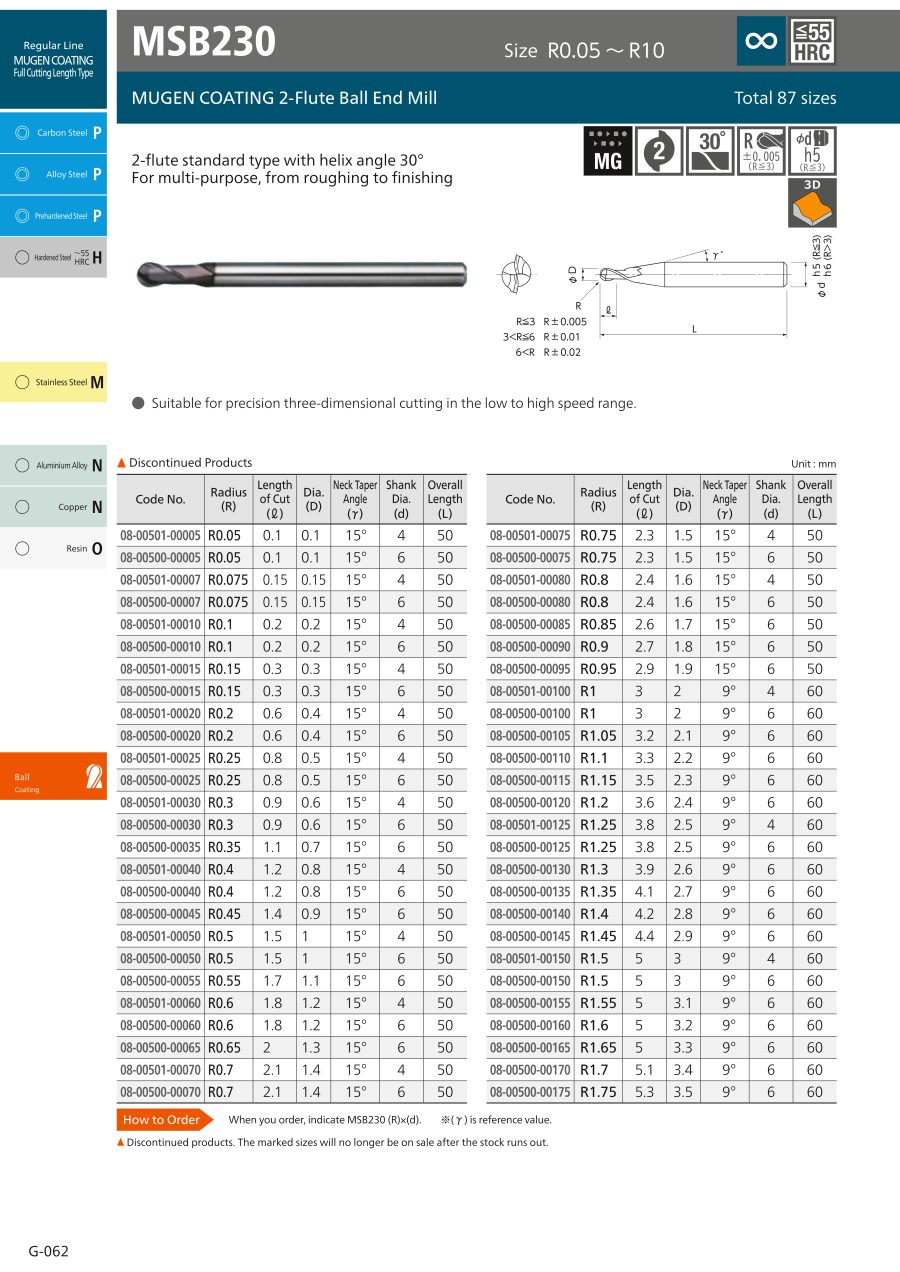

Catalog

Part number:

Still undefined. 82 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

R Size

(mm)

Blade length (ℓ)

(mm)

Overall Length (L)

(mm)

Shank diameter (d)

(mm)

R Precision

(μm)

Manufacturer Code

(D) Blade Diameter

(mm)

(γ) Neck Angle

(°)

Minimum order quantity

0.05	0.1	50	4	0.005～-0.005	08-00501-00005	0.1	15	1 pieces
0.05	0.1	50	6	0.005～-0.005	08-00500-00005	0.1	15	1 pieces
0.075	0.15	50	4	0.005～-0.005	08-00501-00007	0.15	15	1 pieces
0.075	0.15	50	6	0.005～-0.005	08-00500-00007	0.15	15	1 pieces
0.1	0.2	50	4	0.005～-0.005	08-00501-00010	0.2	15	1 pieces
0.1	0.2	50	6	0.005～-0.005	08-00500-00010	0.2	15	1 pieces
0.2	0.6	50	4	0.005～-0.005	08-00501-00020	0.4	15	1 pieces
0.2	0.6	50	6	0.005～-0.005	08-00500-00020	0.4	15	1 pieces
0.3	0.9	50	4	0.005～-0.005	08-00501-00030	0.6	15	1 pieces
0.3	0.9	50	6	0.005～-0.005	08-00500-00030	0.6	15	1 pieces
0.4	1.2	50	4	0.005～-0.005	08-00501-00040	0.8	15	1 pieces
0.4	1.2	50	6	0.005～-0.005	08-00500-00040	0.8	15	1 pieces
0.5	1.5	50	4	0.005～-0.005	08-00501-00050	1	15	1 pieces
0.5	1.5	50	6	0.005～-0.005	08-00500-00050	1	15	1 pieces
0.6	1.8	50	4	0.005～-0.005	08-00501-00060	1.2	15	1 pieces
0.6	1.8	50	6	0.005～-0.005	08-00500-00060	1.2	15	1 pieces
0.7	2.1	50	4	0.005～-0.005	08-00501-00070	1.4	15	1 pieces
0.7	2.1	50	6	0.005～-0.005	08-00500-00070	1.4	15	1 pieces
0.8	2.4	50	4	0.005～-0.005	08-00501-00080	1.6	15	1 pieces
0.8	2.4	50	6	0.005～-0.005	08-00500-00080	1.6	15	1 pieces
0.9	2.7	50	6	0.005～-0.005	08-00500-00090	1.8	15	1 pieces
0.15	0.3	50	4	0.005～-0.005	08-00501-00015	0.3	15	1 pieces
0.15	0.3	50	6	0.005～-0.005	08-00500-00015	0.3	15	1 pieces
0.25	0.8	50	4	0.005～-0.005	08-00501-00025	0.5	15	1 pieces
0.25	0.8	50	6	0.005～-0.005	08-00500-00025	0.5	15	1 pieces
0.35	1.1	50	6	0.005～-0.005	08-00500-00035	0.7	15	1 pieces
0.45	1.4	50	6	0.005～-0.005	08-00500-00045	0.9	15	1 pieces
0.55	1.7	50	6	0.005～-0.005	08-00500-00055	1.1	15	1 pieces
0.65	2	50	6	0.005～-0.005	08-00500-00065	1.3	15	1 pieces
0.75	2.3	50	4	0.005～-0.005	08-00501-00075	1.5	15	1 pieces
0.75	2.3	50	6	0.005～-0.005	08-00500-00075	1.5	15	1 pieces
0.85	2.6	50	6	0.005～-0.005	08-00500-00085	1.7	15	1 pieces
0.95	2.9	50	6	0.005～-0.005	08-00500-00095	1.9	15	1 pieces
1	3	60	4	0.005～-0.005	08-00501-00100	2	9	1 pieces
1	3	60	6	0.005～-0.005	08-00500-00100	2	9	1 pieces
1.05	3.2	60	6	0.005～-0.005	08-00500-00105	2.1	9	1 pieces
1.2	3.6	60	6	0.005～-0.005	08-00500-00120	2.4	9	1 pieces
1.3	3.9	60	6	0.005～-0.005	08-00500-00130	2.6	9	1 pieces
1.4	4.2	60	6	0.005～-0.005	08-00500-00140	2.8	9	1 pieces
1.5	5	60	4	0.005～-0.005	08-00501-00150	3	9	1 pieces
1.5	5	60	6	0.005～-0.005	08-00500-00150	3	9	1 pieces
1.6	5	60	6	0.005～-0.005	08-00500-00160	3.2	9	1 pieces
1.7	5.1	60	6	0.005～-0.005	08-00500-00170	3.4	9	1 pieces
1.8	5.4	60	6	0.005～-0.005	08-00500-00180	3.6	9	1 pieces
1.9	5.7	60	6	0.005～-0.005	08-00500-00190	3.8	9	1 pieces
1.15	3.5	60	6	0.005～-0.005	08-00500-00115	2.3	9	1 pieces
1.25	3.8	60	4	0.005～-0.005	08-00501-00125	2.5	9	1 pieces
1.25	3.8	60	6	0.005～-0.005	08-00500-00125	2.5	9	1 pieces
1.35	4.1	60	6	0.005～-0.005	08-00500-00135	2.7	9	1 pieces
1.45	4.4	60	6	0.005～-0.005	08-00500-00145	2.9	9	1 pieces
1.55	5	60	6	0.005～-0.005	08-00500-00155	3.1	9	1 pieces
1.65	5	60	6	0.005～-0.005	08-00500-00165	3.3	9	1 pieces
1.75	5.3	60	6	0.005～-0.005	08-00500-00175	3.5	9	1 pieces
1.85	5.6	60	6	0.005～-0.005	08-00500-00185	3.7	9	1 pieces
1.95	5.9	60	6	0.005～-0.005	08-00500-00195	3.9	9	1 pieces
2	6	70	6	0.005～-0.005	08-00500-00200	4	9	1 pieces
2.05	6.2	70	6	0.005～-0.005	08-00500-00205	4.1	9	1 pieces
2.1	6.3	70	6	0.005～-0.005	08-00500-00210	4.2	9	1 pieces
2.2	6.6	70	6	0.005～-0.005	08-00500-00220	4.4	9	1 pieces
2.3	6.9	70	6	0.005～-0.005	08-00500-00230	4.6	9	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

97.32 € ( 115.81 € )	8 working days
112.00 € ( 133.28 € )	6 working days
90.90 € ( 108.17 € )	8 working days
106.49 € ( 126.72 € )	6 working days
68.89 € ( 81.98 € )	6 working days
82.65 € ( 98.35 € )	6 working days
37.72 € ( 44.89 € )	6 working days
51.48 € ( 61.26 € )	6 working days
34.05 € ( 40.52 € )	6 working days
46.89 € ( 55.80 € )	6 working days
42.55 € ( 50.63 € )	6 working days
46.89 € ( 55.80 € )	6 working days
31.29 € ( 37.24 € )	6 working days
43.22 € ( 51.43 € )	6 working days
43.22 € ( 51.43 € )	6 working days
64.55 € ( 76.81 € )	10 working days
51.71 € ( 61.53 € )	10 working days
56.05 € ( 66.70 € )	6 working days
43.22 € ( 51.43 € )	6 working days
56.05 € ( 66.70 € )	6 working days
78.98 € ( 93.99 € )	6 working days
56.05 € ( 66.70 € )	6 working days
70.73 € ( 84.17 € )	6 working days
34.97 € ( 41.61 € )	6 working days
48.72 € ( 57.98 € )	6 working days
78.98 € ( 93.99 € )	6 working days
78.98 € ( 93.99 € )	6 working days
78.98 € ( 93.99 € )	6 working days
78.98 € ( 93.99 € )	6 working days
46.22 € ( 55.00 € )	6 working days
50.56 € ( 60.17 € )	6 working days
78.98 € ( 93.99 € )	6 working days
78.98 € ( 93.99 € )	6 working days
27.64 € ( 32.89 € )	10 working days
34.64 €17.67 € ( 21.03 € )	Stock item: 1 working dayAvailable for same-day shipping
78.98 € ( 93.99 € )	6 working days
78.98 € ( 93.99 € )	8 working days
78.98 € ( 93.99 € )	6 working days
78.98 € ( 93.99 € )	6 working days
34.05 € ( 40.52 € )	6 working days
35.89 € ( 42.71 € )	6 working days
82.65 € ( 98.35 € )	6 working days
82.65 € ( 98.35 € )	6 working days
91.15 € ( 108.47 € )	6 working days
82.65 € ( 98.35 € )	6 working days
78.98 € ( 93.99 € )	6 working days
48.72 € ( 57.98 € )	6 working days
60.64 € ( 72.16 € )	6 working days
78.98 € ( 93.99 € )	6 working days
78.98 € ( 93.99 € )	6 working days
82.65 € ( 98.35 € )	6 working days
91.15 € ( 108.47 € )	10 working days
66.14 € ( 78.71 € )	6 working days
82.65 € ( 98.35 € )	6 working days
82.65 € ( 98.35 € )	6 working days
40.48 € ( 48.17 € )	10 working days
101.00 € ( 120.19 € )	6 working days
101.00 € ( 120.19 € )	6 working days
101.00 € ( 120.19 € )	6 working days
101.00 € ( 120.19 € )	6 working days
