MITSUBISHI MATERIALS

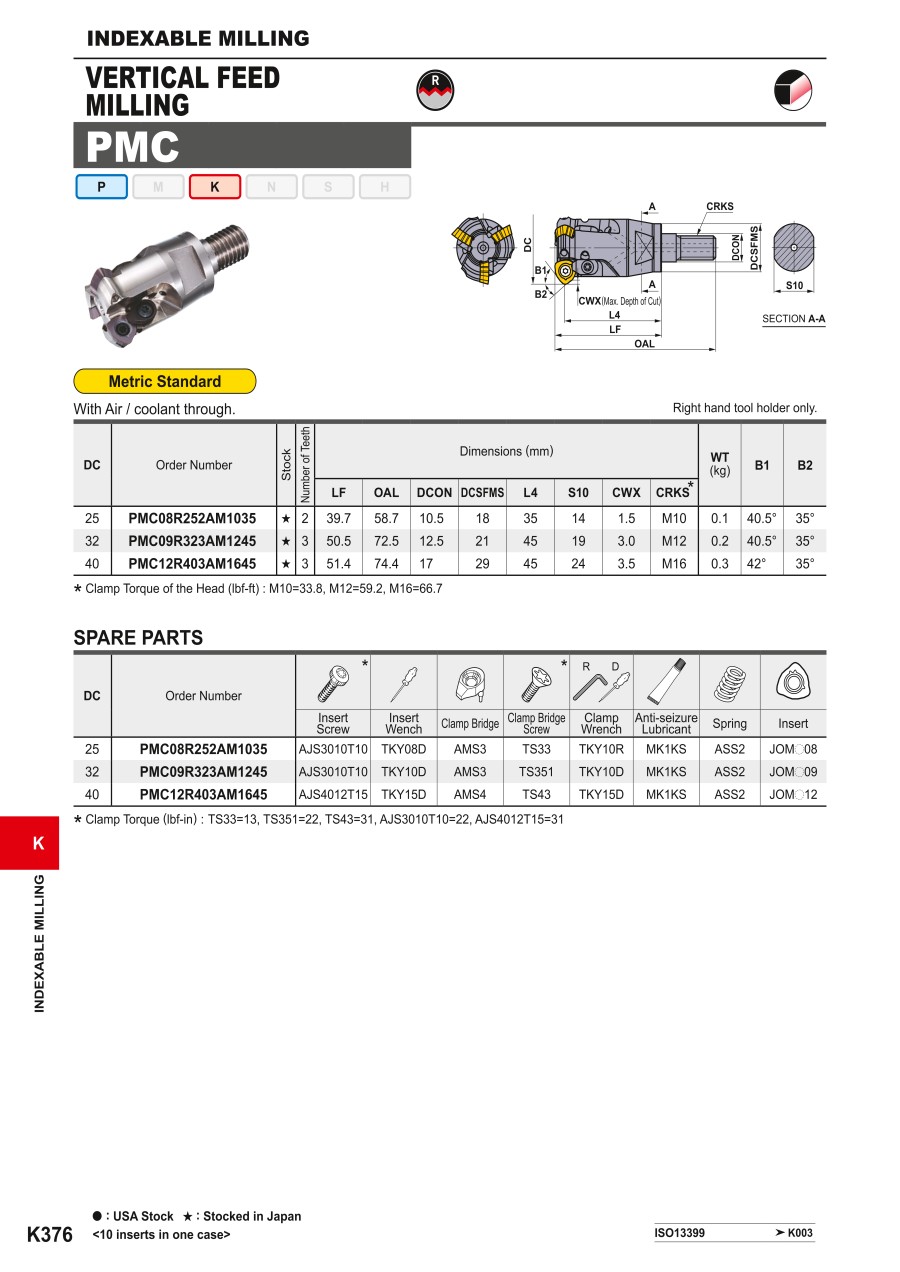

PMC Type Screw-In End Mill

PMC Type Screw-In End Mill

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    PMC08R252AM1035
    PMC09R323AM1245
    PMC12R403AM1645

    Blade diameter D

    (mm)

    Overall length (L)

    (mm)

    Shank diameter (d)

    (mm)

    Underneck length (ℓ1)

    (mm)

    Weight

    (kg)

    Main Body Outermost Diameter BD

    (mm)

    Wrench

    Applicable Insert

    Clamp Screw

    Dimension H

    (mm)

    Mounting Screw Size CRKS

    (mm)

    Clamp piece

    Screw Piece for Lathe Turning

    		Minimum order quantity
    25
    58.7
    10.5
    39.7
    0.1
    18
    ②TKY08D/①TKY10R
    JOM○080320ZZSR-○○
    TS33
    14
    M10
    AMS3
    AJS3010T10
    1 pieces
    32
    72.5
    12.5
    50.5
    0.2
    21
    ②TKY10D
    JOM○09T320ZDSR-○○
    TS351
    19
    M12
    AMS3
    AJS3010T10
    1 pieces
    40
    74.4
    17
    51.4
    0.3
    29
    ②TKY10D
    JDM○120420ZDSR-○○
    TS43
    24
    M16
    AMS4
    AJS4012T15
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    326.61 €
    ( 388.67 € )
    9 working days
    398.35 €
    ( 474.04 € )
    9 working days
    424.64 €
    ( 505.32 € )
    9 working days
  • 1

    • More Information

    Basic information

    For press/die trimming. Capable of reciprocating type machining with long projections
