Configure

Main material
- Stainless Steel A2
- Mild steel
Surface finish body
- black oxidized
Form
- W
D1=Thread
D3(mm)
- 20
- 23
- 25
- 27
- 28
- 30
- 34
- 36
- 38
- 43
- 45
- 48
- 50
- 54
G=Thread
H=Height(mm)
- 6
- 7
- 8
- 9
- 10
- 11
- 12
B=Slot width(mm)
- 5
- 6
- 7
- 8
D2=Outside diameter(mm)
- 25
- 28
- 30
- 32
- 34
- 36
- 40
- 42
- 45
- 50
- 52
- 55
- 58
- 62
Weight(kg)
- 0.0166
- 0.0207
- 0.0209
- 0.0230
- 0.0260
- 0.0268
- 0.0300
- 0.0301
- 0.0395
- 0.0399
- 0.0562
- 0.0596
- 0.0605
- 0.0750
- 0.0905
- 0.0969
- 0.0970
- 0.0983
- 0.1039
- 0.1125
- 0.1133
- 0.1185
- 0.1411
- 0.1500
- 0.1548
T(mm)
- 2
- 2.5
- 3
- 3.5
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 4 working days

Slotted round nuts DIN 1804 (K1917)

Catalog

Part number:

Still undefined. 32 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Main material

Surface finish body

Form

D1=Thread

(mm)

G=Thread

H=Height

(mm)

B=Slot width

(mm)

D2=Outside diameter

(mm)

Weight

(kg)

(mm)

PL Edelstahl

Minimum order quantity

Mild steel	black oxidized	W	M10x1	20	M10x1	6	5	25	0.0166	2	false	1 pieces
Mild steel	black oxidized	W	M12x1.5	23	M12x1.5	6	5	28	0.0209	2	false	1 pieces
Mild steel	black oxidized	W	M14x1.5	25	M14X1.5	7	5	30	0.0268	2	false	1 pieces
Mild steel	black oxidized	W	M16x1.5	27	M16x1.5	7	5	32	0.0300	2	false	1 pieces
Mild steel	black oxidized	W	M18x1.5	28	M18x1.5	8	6	34	0.0230	2.5	false	1 pieces
Mild steel	black oxidized	W	M20x1.5	30	M20x1.5	8	6	36	0.0399	2.5	false	1 pieces
Mild steel	black oxidized	W	M22x1.5	34	M22x1.5	9	6	40	0.0562	2.5	false	1 pieces
Mild steel	black oxidized	W	M24x1.5	36	M24X1.5	9	6	42	0.0596	2.5	false	1 pieces
Mild steel	black oxidized	W	M26x1.5	38	M26X1.5	10	7	45	0.0750	3	false	1 pieces
Mild steel	black oxidized	W	M28x1.5	43	M28X1.5	10	7	50	0.0983	3	false	1 pieces
Mild steel	black oxidized	W	M30x1.5	43	M30X1.5	10	7	50	0.0970	3	false	1 pieces
Mild steel	black oxidized	W	M32x1.5	45	M32X1.5	11	7	52	0.1039	3	false	1 pieces
Mild steel	black oxidized	W	M35x1.5	48	M35X1.5	11	7	55	0.1125	3	false	1 pieces
Mild steel	black oxidized	W	M38x1.5	50	M38X1.5	11	8	58	0.1185	3.5	false	1 pieces
Mild steel	black oxidized	W	M40x1.5	54	M40X1.5	12	8	62	0.1500	3.5	false	1 pieces
Mild steel	black oxidized	W	M42x1.5	54	M42X1.5	12	8	62	0.1411	3.5	false	1 pieces
Stainless Steel A2	-	-	M10x1	20	-	6	5	25	0.0166	2	true	1 pieces
Stainless Steel A2	-	-	M12x1.5	23	-	6	5	28	0.0207	2	true	1 pieces
Stainless Steel A2	-	-	M14x1.5	25	-	7	5	30	0.0268	2	true	1 pieces
Stainless Steel A2	-	-	M16x1.5	27	-	7	5	32	0.0301	2	true	1 pieces
Stainless Steel A2	-	-	M18x1.5	28	-	8	6	34	0.0260	2.5	true	1 pieces
Stainless Steel A2	-	-	M20x1.5	30	-	8	6	36	0.0395	2.5	true	1 pieces
Stainless Steel A2	-	-	M22x1.5	34	-	9	6	40	0.0562	2.5	true	1 pieces
Stainless Steel A2	-	-	M24x1.5	36	-	9	6	42	0.0605	2.5	true	1 pieces
Stainless Steel A2	-	-	M26x1.5	38	-	10	7	45	0.0750	3	true	1 pieces
Stainless Steel A2	-	-	M28x1.5	43	-	10	7	50	0.0969	3	true	1 pieces
Stainless Steel A2	-	-	M30x1.5	43	-	10	7	50	0.0905	3	true	1 pieces
Stainless Steel A2	-	-	M32x1.5	45	-	11	7	52	0.1039	3	true	1 pieces
Stainless Steel A2	-	-	M35x1.5	48	-	11	7	55	0.1133	3	true	1 pieces
Stainless Steel A2	-	-	M38x1.5	50	-	11	8	58	0.1185	3.5	true	1 pieces
Stainless Steel A2	-	-	M40x1.5	54	-	12	8	62	0.1548	3.5	true	1 pieces
Stainless Steel A2	-	-	M42x1.5	54	-	12	8	62	0.1411	3.5	true	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

2.21 € ( 2.63 € )	4 working days
2.37 € ( 2.82 € )	4 working days
2.73 € ( 3.25 € )	4 working days
2.85 € ( 3.39 € )	4 working days
2.79 € ( 3.32 € )	4 working days
3.14 € ( 3.74 € )	4 working days
3.12 € ( 3.71 € )	4 working days
3.25 € ( 3.87 € )	4 working days
4.53 € ( 5.39 € )	4 working days
4.97 € ( 5.91 € )	4 working days
5.11 € ( 6.08 € )	4 working days
5.19 € ( 6.18 € )	4 working days
5.68 € ( 6.76 € )	4 working days
6.34 € ( 7.54 € )	4 working days
7.15 € ( 8.51 € )	4 working days
7.15 € ( 8.51 € )	4 working days
4.89 € ( 5.82 € )	4 working days
5.22 € ( 6.21 € )	4 working days
5.97 € ( 7.10 € )	4 working days
6.29 € ( 7.49 € )	4 working days
6.15 € ( 7.32 € )	4 working days
6.91 € ( 8.22 € )	4 working days
6.87 € ( 8.18 € )	4 working days
7.18 € ( 8.54 € )	4 working days
9.95 € ( 11.84 € )	4 working days
10.95 € ( 13.03 € )	4 working days
11.21 € ( 13.34 € )	4 working days
11.40 € ( 13.57 € )	4 working days
12.50 € ( 14.88 € )	4 working days
13.94 € ( 16.59 € )	4 working days
15.76 € ( 18.75 € )	4 working days
15.76 € ( 18.75 € )	4 working days

More Information

Basic information

Basic information

· Form H: hardened, flat faces ground

Catalog

Products homepage

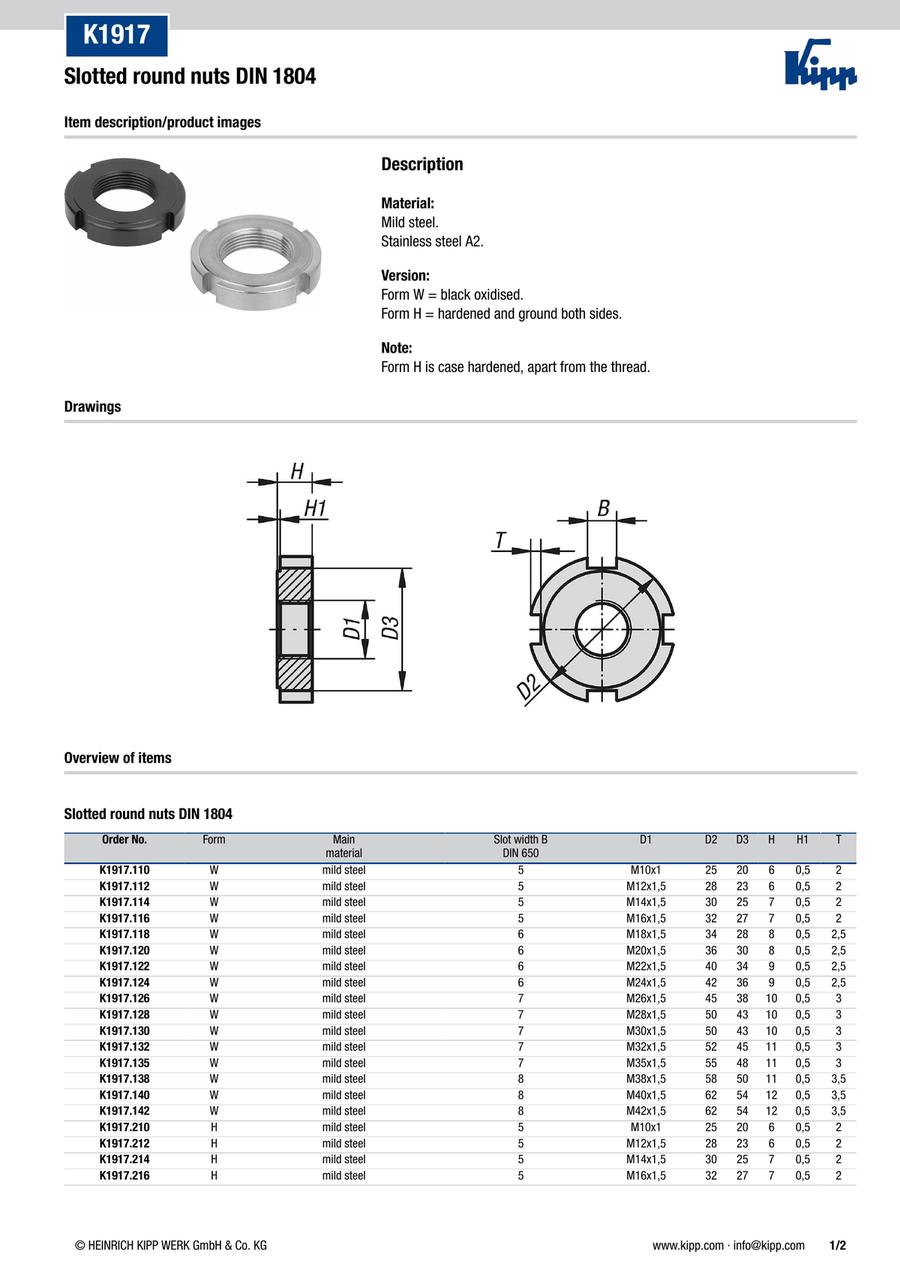

Catalog (2-page spread)
