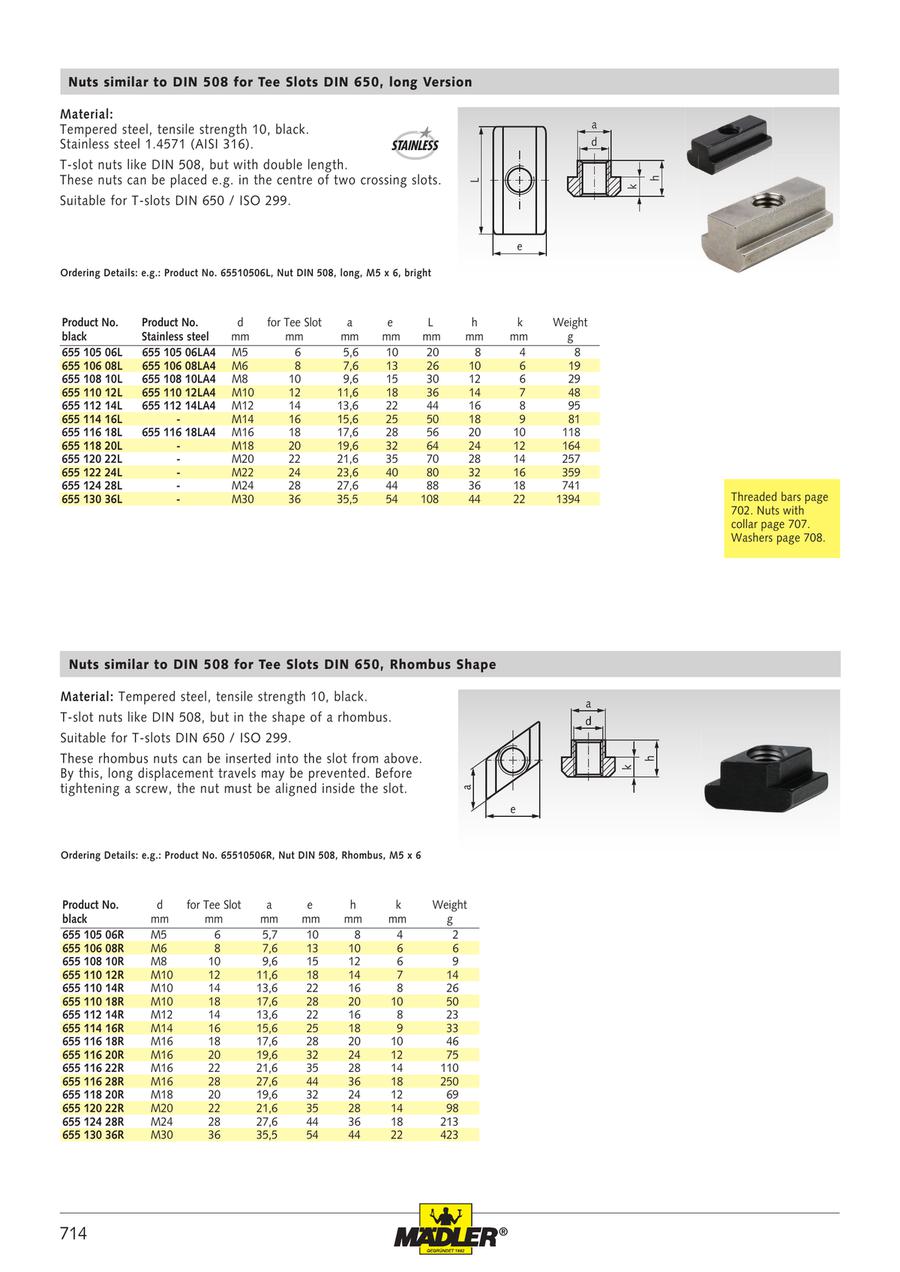

Nuts Similar to DIN 508 for Tee Slots DIN 650, Rhombus Shape

Nuts Similar to DIN 508 for Tee Slots DIN 650, Rhombus Shape

Part number:

Still undefined. 16 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    65510506R
    65510608R
    65510810R
    65511012R
    65511014R
    65511018R
    65511214R
    65511416R
    65511618R
    65511620R
    65511622R
    65511628R
    65511820R
    65512022R
    65512428R
    65513036R

    Thread size d

    (mm)

    For T-Slots DIN 650

    (mm)

    a

    (mm)

    e

    (mm)

    Height h

    (mm)

    k

    (mm)

    Weight

    (g)

    		Minimum order quantity
    M 5
    6
    5.6
    10
    8
    4
    2
    1 pieces
    M 6
    8
    7.6
    13
    10
    5
    6
    1 pieces
    M 8
    10
    9.6
    15
    12
    6
    9
    1 pieces
    M 10
    12
    11.6
    18
    14
    7
    14
    1 pieces
    M 10
    14
    13.6
    22
    16
    8
    26
    1 pieces
    M 10
    18
    17.6
    28
    20
    10
    50
    1 pieces
    M 12
    14
    13.6
    22
    16
    8
    23
    1 pieces
    M 14
    16
    15.6
    25
    18
    9
    33
    1 pieces
    M 16
    18
    17.6
    28
    20
    10
    46
    1 pieces
    M 16
    20
    19.6
    32
    24
    12
    75
    1 pieces
    M 16
    22
    21.6
    35
    28
    14
    110
    1 pieces
    M 16
    28
    27.6
    44
    36
    18
    250
    1 pieces
    M 18
    20
    19.6
    32
    24
    12
    69
    1 pieces
    M 20
    22
    21.6
    35
    28
    14
    98
    1 pieces
    M 24
    28
    27.6
    44
    36
    18
    213
    1 pieces
    M 30
    36
    35.5
    54
    44
    22
    423
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    3.35 €
    ( 3.99 € )
    4 working days
    1.78 €
    ( 2.12 € )
    4 working days
    4.24 €
    ( 5.05 € )
    4 working days
    3.36 €
    ( 4.00 € )
    4 working days
    7.97 €
    ( 9.48 € )
    4 working days
    11.12 €
    ( 13.23 € )
    4 working days
    6.39 €
    ( 7.60 € )
    4 working days
    7.98 €
    ( 9.50 € )
    4 working days
    9.49 €
    ( 11.29 € )
    4 working days
    15.89 €
    ( 18.91 € )
    4 working days
    15.81 €
    ( 18.81 € )
    4 working days
    23.21 €
    ( 27.62 € )
    4 working days
    14.28 €
    ( 16.99 € )
    4 working days
    15.81 €
    ( 18.81 € )
    4 working days
    25.68 €
    ( 30.56 € )
    4 working days
    50.04 €
    ( 59.55 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material: Tempered steel, tensile strength 10, black.
    T-slot nuts according to the old standard DIN 508, but in the shape of a rhombus.
    Suitable for T-slots DIN 650 / ISO 299.
    These rhombus nuts can be inserted into the slot from above. By this, long displacement travels may be prevented. Before tightening a screw, the nut must be aligned inside the slot.
